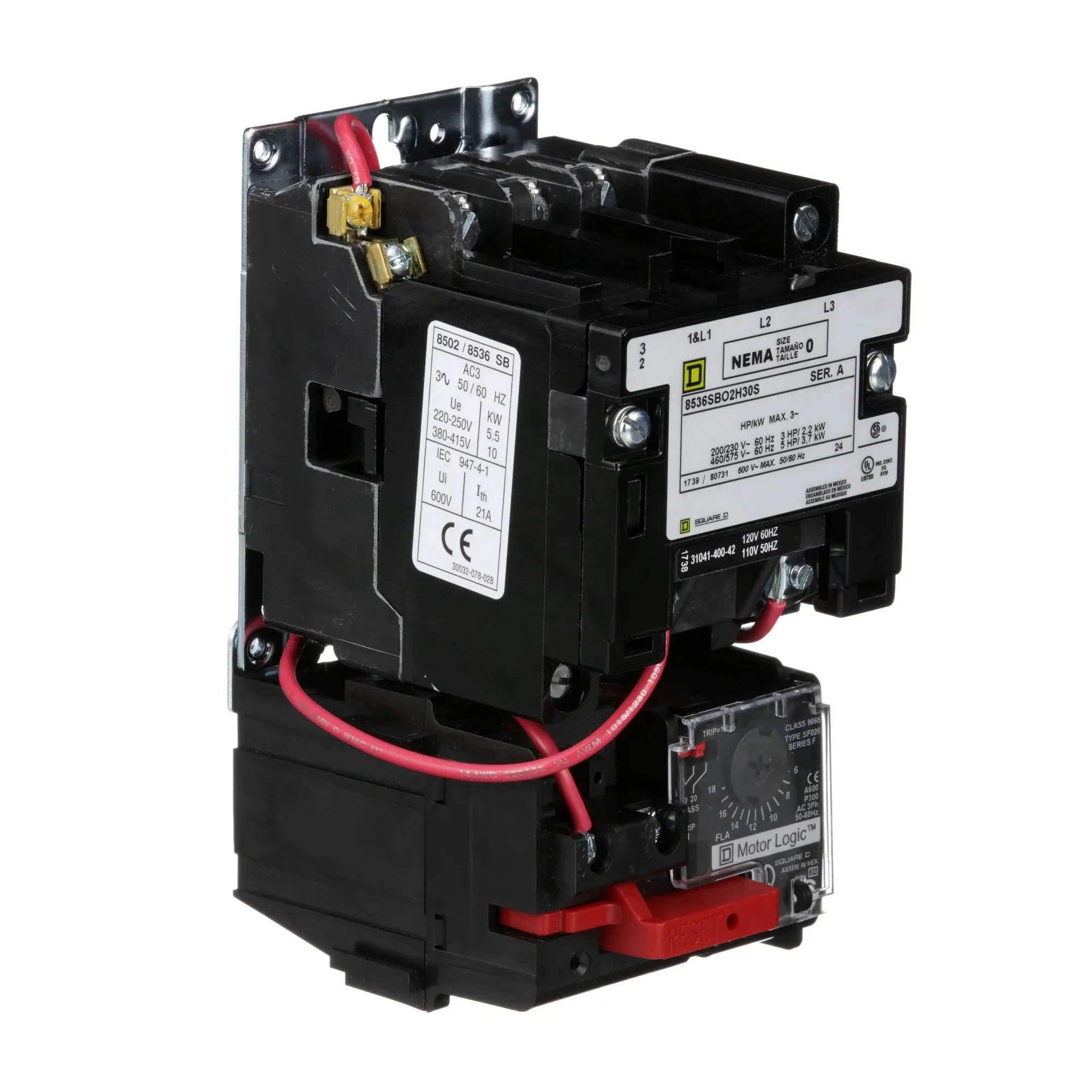

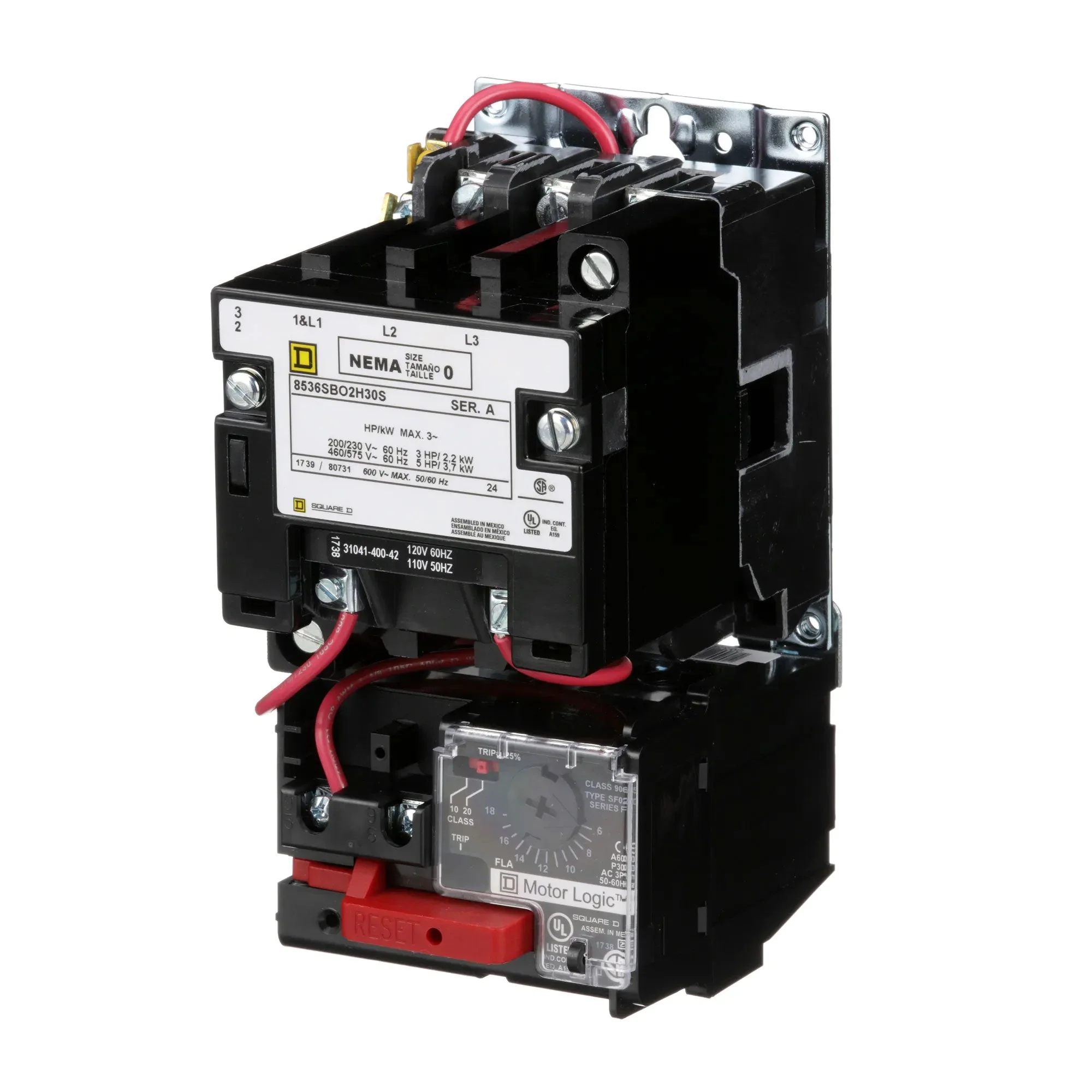

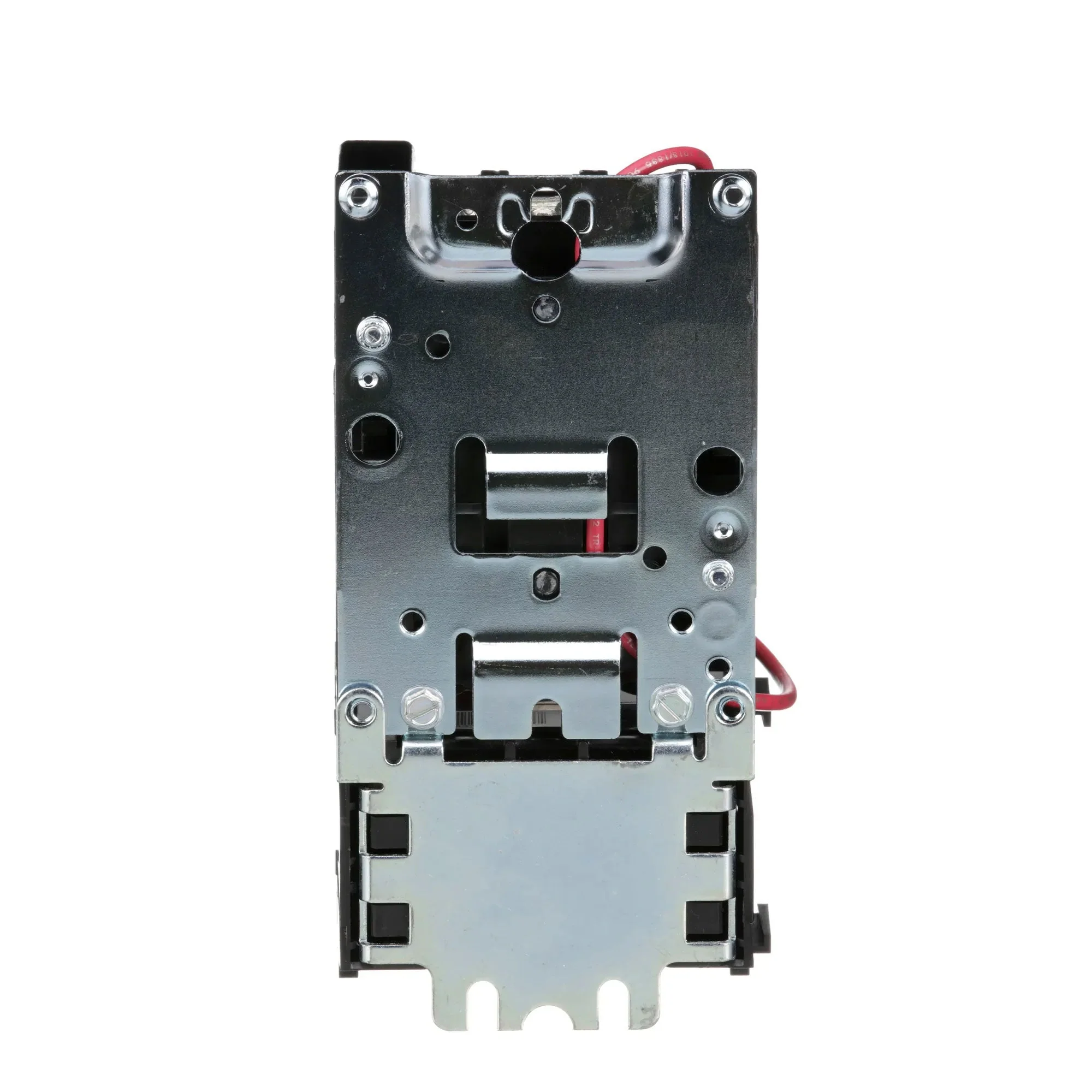

Type S Nema Motor Starters Are Used For Full Voltage Starting And Stopping Of Ac Squirrel Cage Motors. Type S Motor Starters Have Ratings Up To 810 Amperes. This 3 Pole Nema Size 0 Non-Reversing Starter Has An 18 Ampere Rating. Nema Size 0 Motor Starters Have 3 Phase Ratings Of 3 Hp At 200 And 230 Vac And 5 Hp At 460 And 575 Vac. This Non-Reversing Nema Motor Starter Has A Motor Logic Overload Relay With A 6A To 18A Range To Sense Over Current Conditions. This Nema Starter Has A 100 Ka Maximum Sccr (Short Circuit Current Rating) Per Ul508A When Protected By An Appropriate Circuit Breaker Or Fuse. Type S Motor Starters Are Available With Replaceable Coils In A Wide Variety Of Voltages. This Starter Has A 110/220 Vac 50/60 Hz Operating Coil Wired For Separate Control. This Nema Starter Is An Open Device Without An Enclosure. This Starter Is 6.77 Inches Tall, 3.50 Inches Wide And 4.22 Inches Deep. A Wide Variety Of Accessories Are Available For Type S Starters. Type S Non-Reversing Nema Motor Starters Are Ul Listed And Csa Certified.
