Product Description - 9065SP14 - Square D Overload Relay

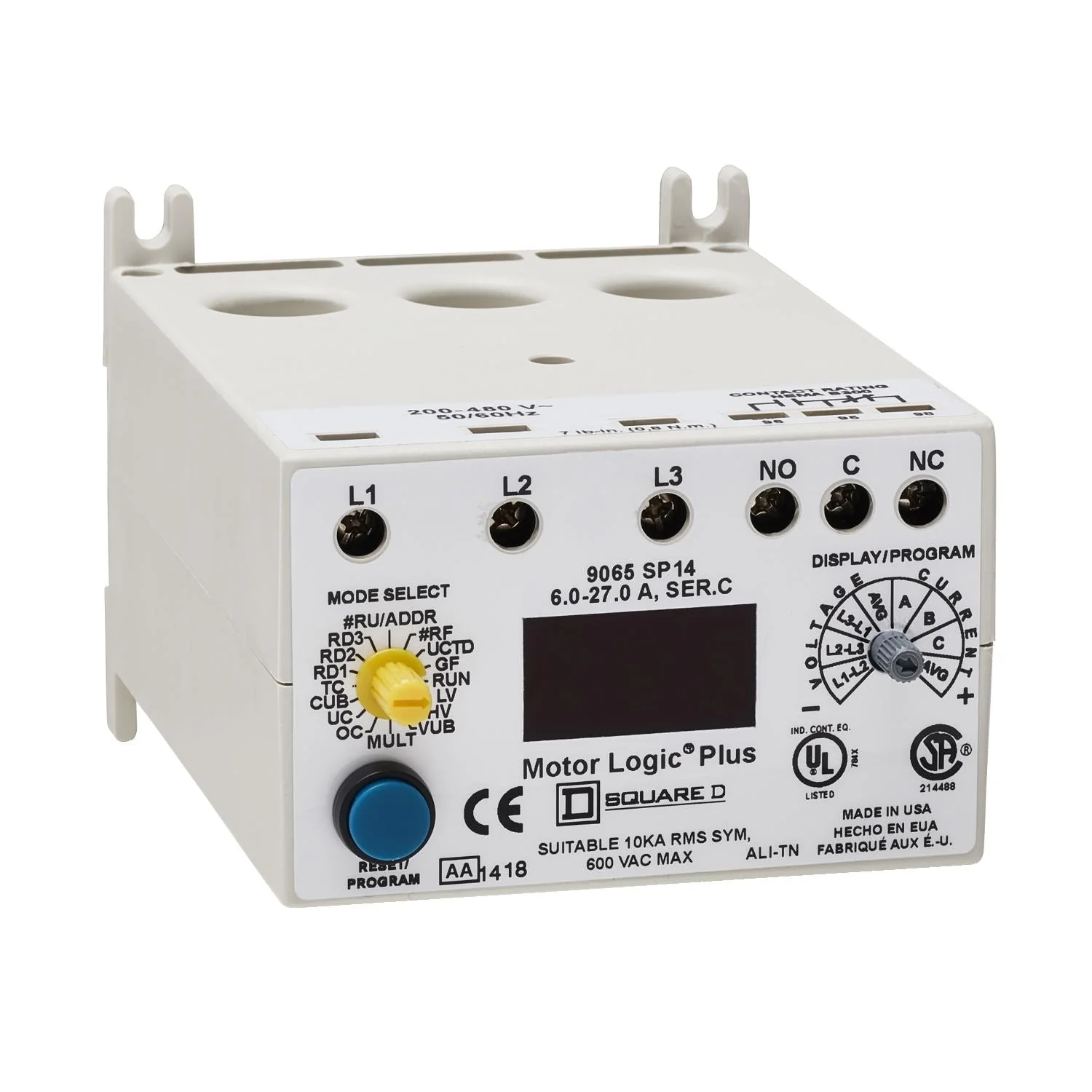

Motor Logic® Plus solid-state overload relays (SSOLR) are separately powered and fully programmable. They are designed to protect three phase AC motors. Motor Logic® Plus solid-state overload relays (SSOLR) can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. This Motor Logic Plus solid state overload relay is for use with NEMA size 1 three pole starters. This Motor Logic Plus solid state overload relay has a full load current rating of 6A to 27A. Maximum voltage rating of 480VAC. The trip free operation will help the motor from overheating. This overload relay is 3.05 inches tall, 3.85 inches wide and 5.04 inches deep. Motor Logic Plus SSOLR are UL listed and CSA certified.
