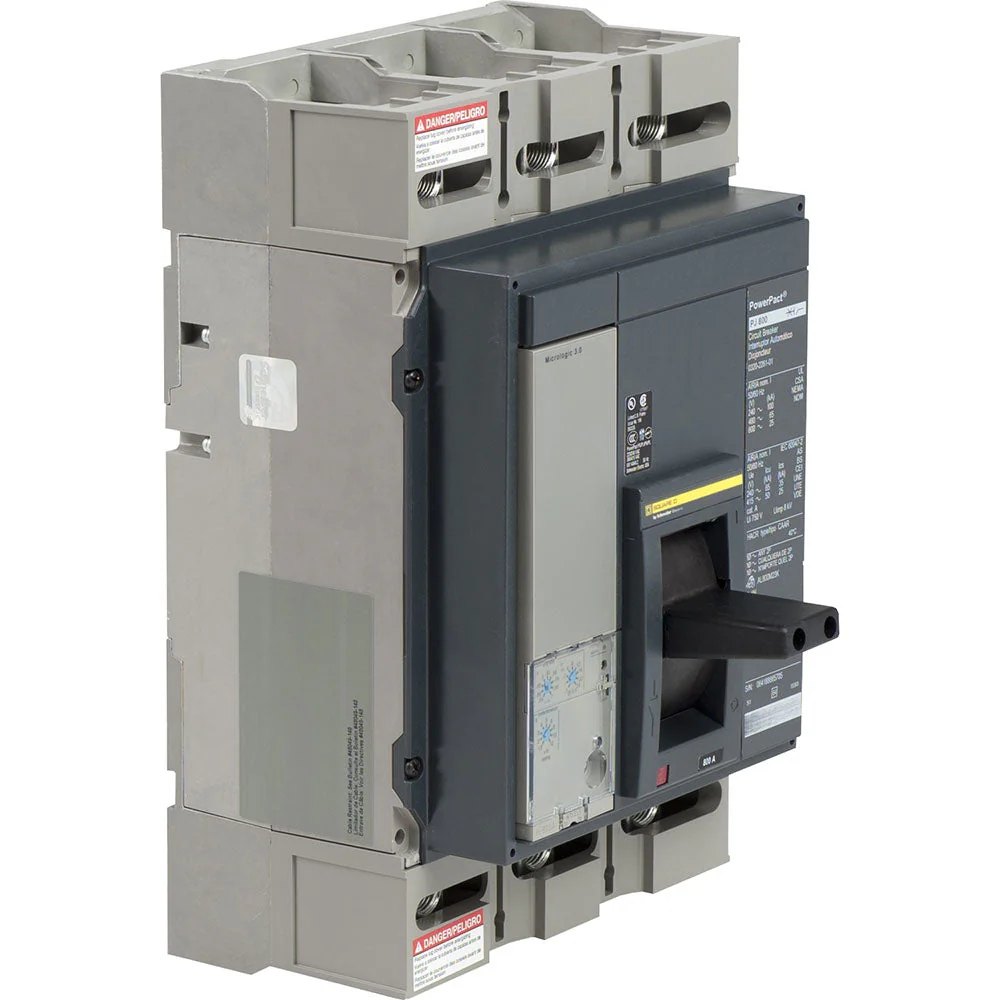

PJL36080U31A - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - PJL36080U31A - Square D Molded Case Circuit Breakers
-
Part Number:
PJL36080U31A -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
800 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
PJL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
5.66" x 3.92" x 4.05"
-
Weight:
32 lbs
Standards
Product Description - PJL36080U31A - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, type PJL, 3P, 3PH, 800A, 600V, 65kA@480V, UL listed, high interrupting capacity, feed-thru, complete with micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers.
Additional Details
-
Trip Unit Technology:
Electronic, standard, MicroLogic 3.0, LI -
Line Rated Current:
800 Amp -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code
J -
Electrical Connection:
Lugs line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
3 x AWG 3/0...500 kcmil aluminium/copper
Documentation
Select Condition
From $1,743.00
Original: $5,809.99
-70%PJL36080U31A - Square D - Molded Case Circuit Breakers—
$5,809.99
$1,743.00Product Information
