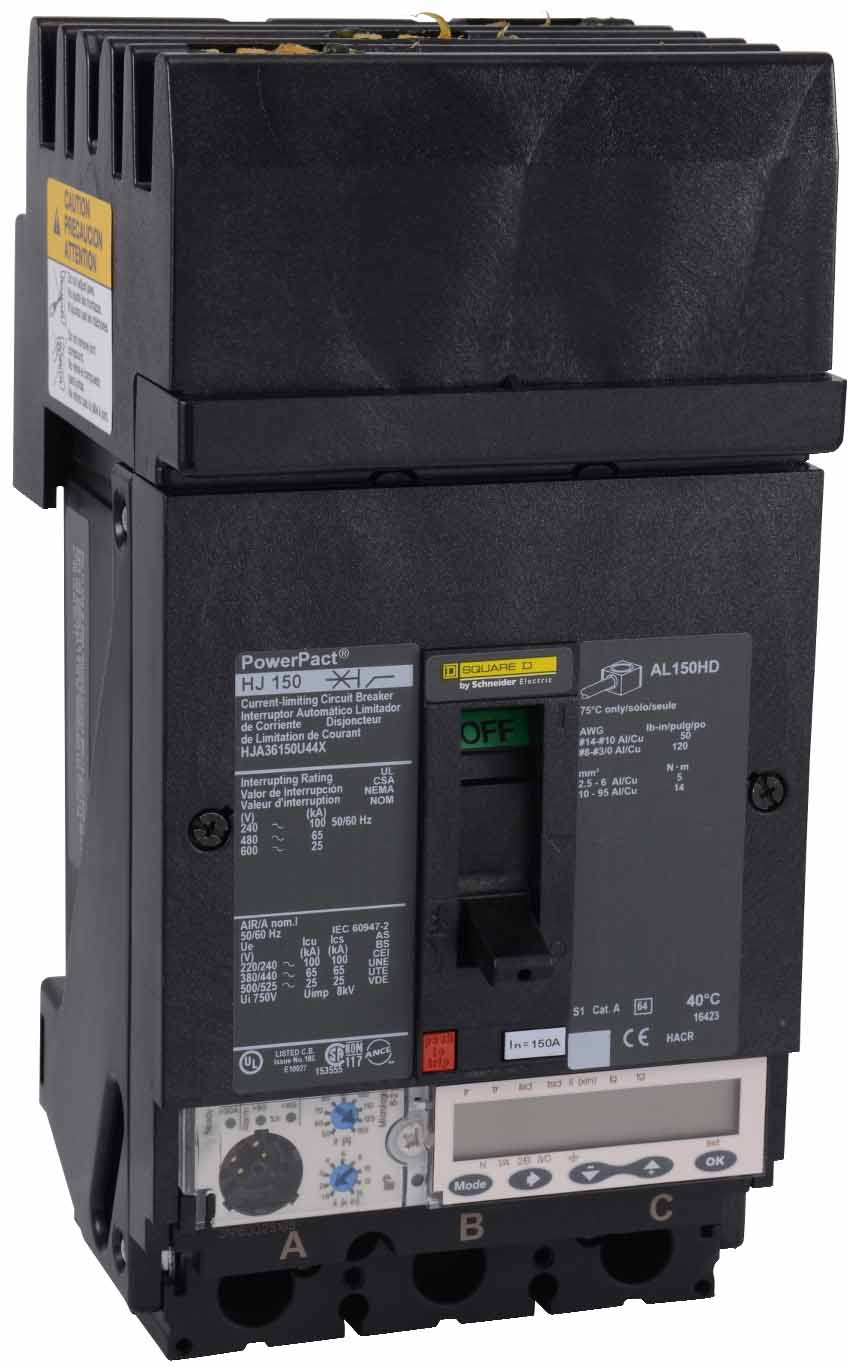

HJA36150U44X - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - HJA36150U44X - Square D Molded Case Circuit Breakers
-
Part Number:
HJA36150U44X -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
150 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
HJA -
Functions:
LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
6.42" x 4.09" x 3.39"
-
Weight:
4.85 lbs
Standards
Additional Details
-
Trip Unit Technology:
Electronic, ammeter, MicroLogic 6.2 A, LSIG -
Line Rated Current:
150 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
J -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HJA36150U44X - Square D Molded Case Circuit Breakers
Square D, Powerpact, type HJA, 3P, ABC phase connection, 3PH, 150A, 600V, 65kA@480V, i-line style plug-in, UL listed, suitable for reverse connection, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, solid state electronic
Documentation
Select Condition
From $742.20
Original: $2,473.99
-70%HJA36150U44X - Square D - Molded Case Circuit Breakers—
$2,473.99
$742.20Product Information
