EGB34020SA - Square D - Molded Case Circuit Breakers

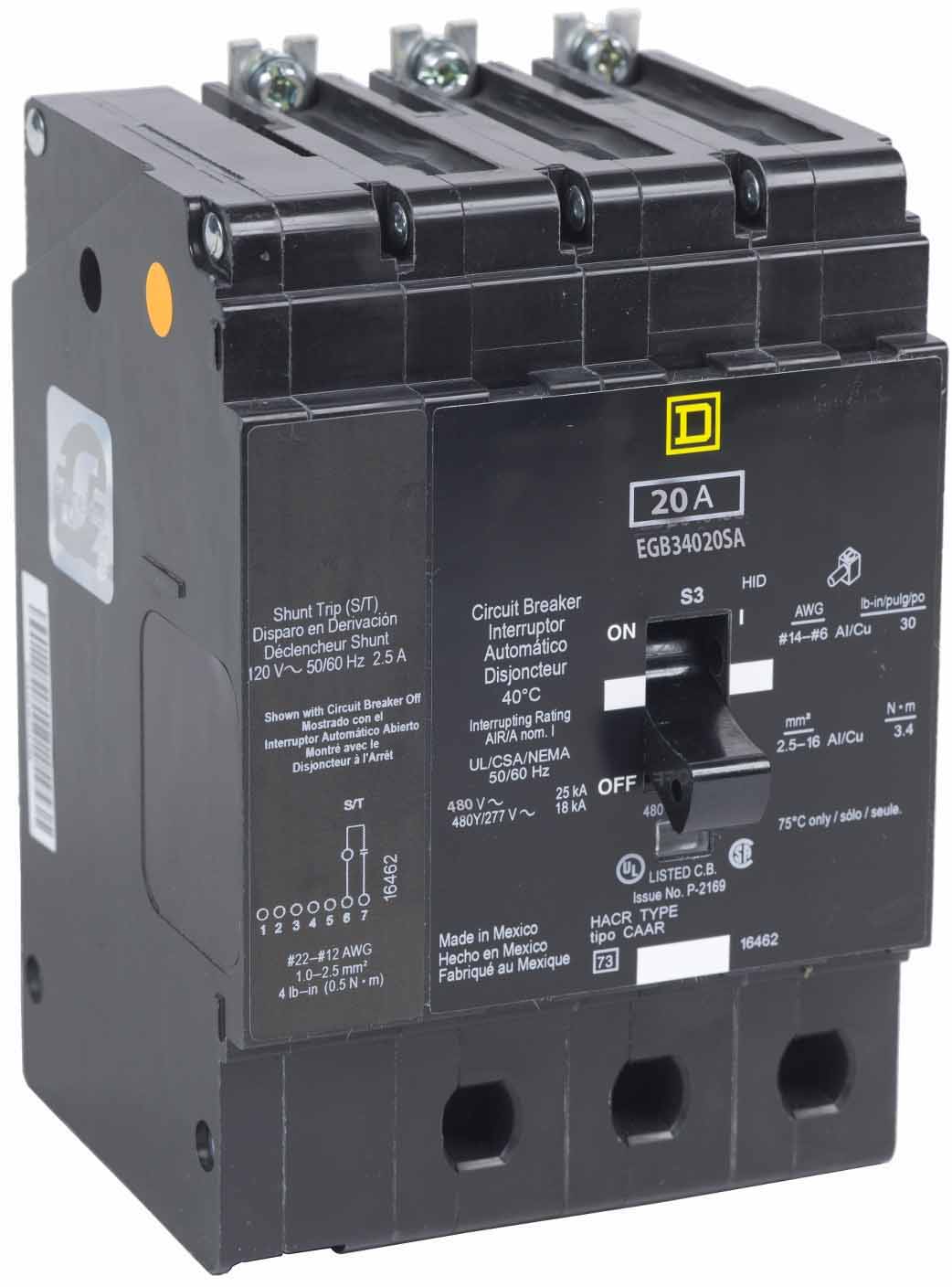

Product image 1

EGB34020SA - Square D - Molded Case Circuit Breakers

Overview

Product Specifications - EGB34020SA - Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Bolt-On

  • Type:

    EGB

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    5.66" x 3.92" x 4.05"

  • Weight:

    4 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload

  • Module Type:

    E-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    20 Amp

  • Maximum Operating Voltage:

    480Y/277 V AC

  • Mounting Mode:

    Bolt-on

  • Breaking Capacity Code

    G

  • Electrical Connection:

    Lugs aluminium

  • AWG Gauge:

    AWG 12...AWG 6 aluminium / AWG 14...AWG 6 copper

Product Description - EGB34020SA - Square D Molded Case Circuit Breakers

Square D / Schneider Electric, type EGB, 3P, 3PH, 20A, 277/480V, 35kA@480V, complete with 120V shunt trip, high interrupting capacity, 40°C, Molded Case Circuit Breaker

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications


Select Condition
From $302.40

Original: $1,007.99

-70%
EGB34020SA - Square D - Molded Case Circuit Breakers—

$1,007.99

$302.40

Product Information

Shipping & Returns

Description

Overview

Product Specifications - EGB34020SA - Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Bolt-On

  • Type:

    EGB

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    5.66" x 3.92" x 4.05"

  • Weight:

    4 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload

  • Module Type:

    E-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    20 Amp

  • Maximum Operating Voltage:

    480Y/277 V AC

  • Mounting Mode:

    Bolt-on

  • Breaking Capacity Code

    G

  • Electrical Connection:

    Lugs aluminium

  • AWG Gauge:

    AWG 12...AWG 6 aluminium / AWG 14...AWG 6 copper

Product Description - EGB34020SA - Square D Molded Case Circuit Breakers

Square D / Schneider Electric, type EGB, 3P, 3PH, 20A, 277/480V, 35kA@480V, complete with 120V shunt trip, high interrupting capacity, 40°C, Molded Case Circuit Breaker

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications
