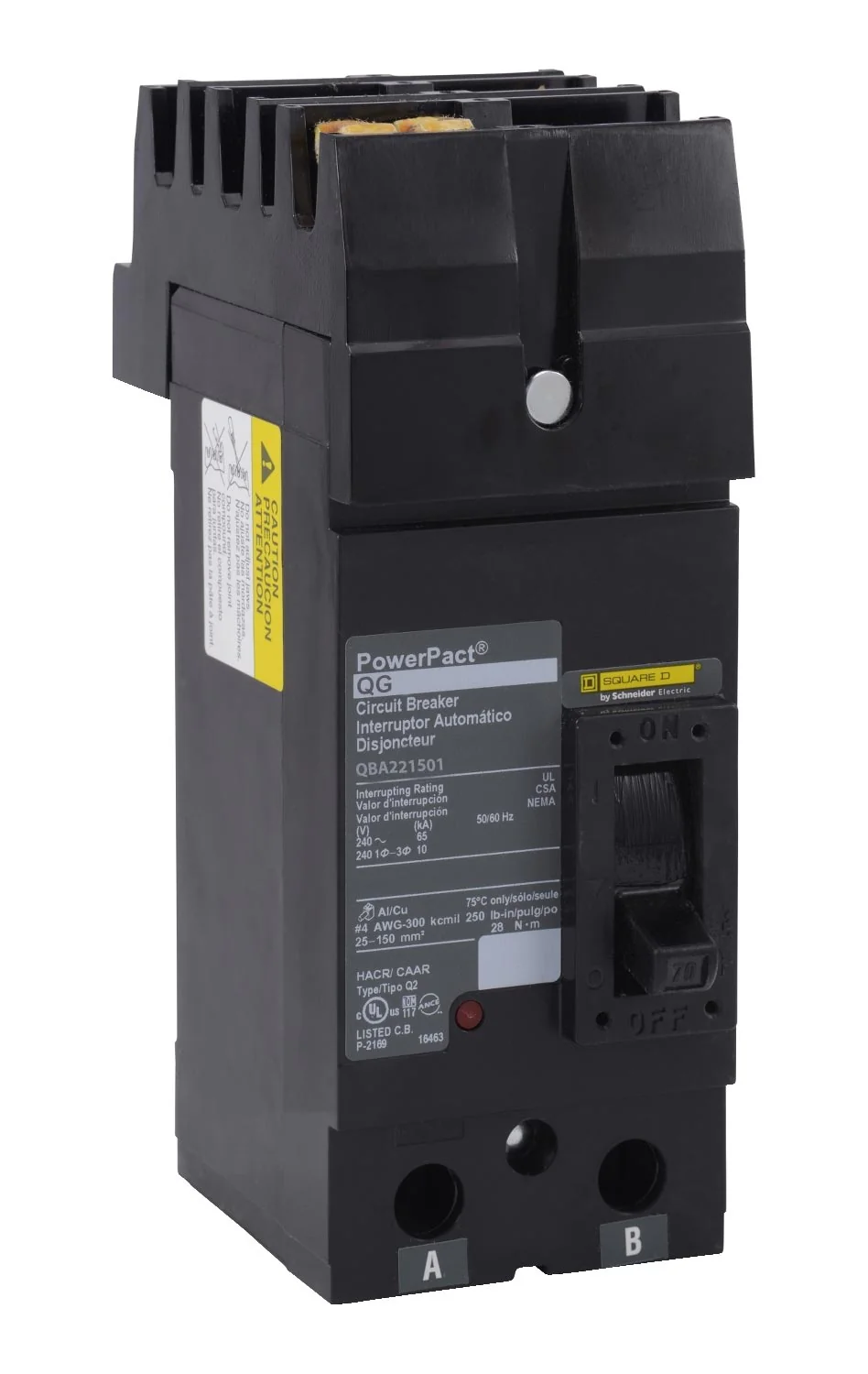

QBA221501 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - QBA221501 - Square D Molded Case Circuit Breakers
-
Part Number:
QBA221501 -
Manufacturer:
-
Family:
I-Line -
Pole:
2 -
Amp
150 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
QBA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V
Dimensions
-
Dimensions (HxWxD):
6.47" x 4.5" x 3.39"
Additional Details
-
Trip Unit Technology:
Thermal Magnetic -
Line Rated Current:
150 Amp -
Mounting Mode:
I Line Bracket
-
Breaking Capacity Code:
B -
Electrical Connection:
I-Line connection line / Lugs load
Standards
Product Description - QBA221501 - Square D Molded Case Circuit Breakers
Square D, I-Line, type QBA, 2P, A & B phase connection, 1PH, 150A, 240V, 10kA@240V, UL listed, standard interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals.
Documentation
Select Condition
From $250.99
QBA221501 - Square D - Molded Case Circuit Breaker—
$250.99
