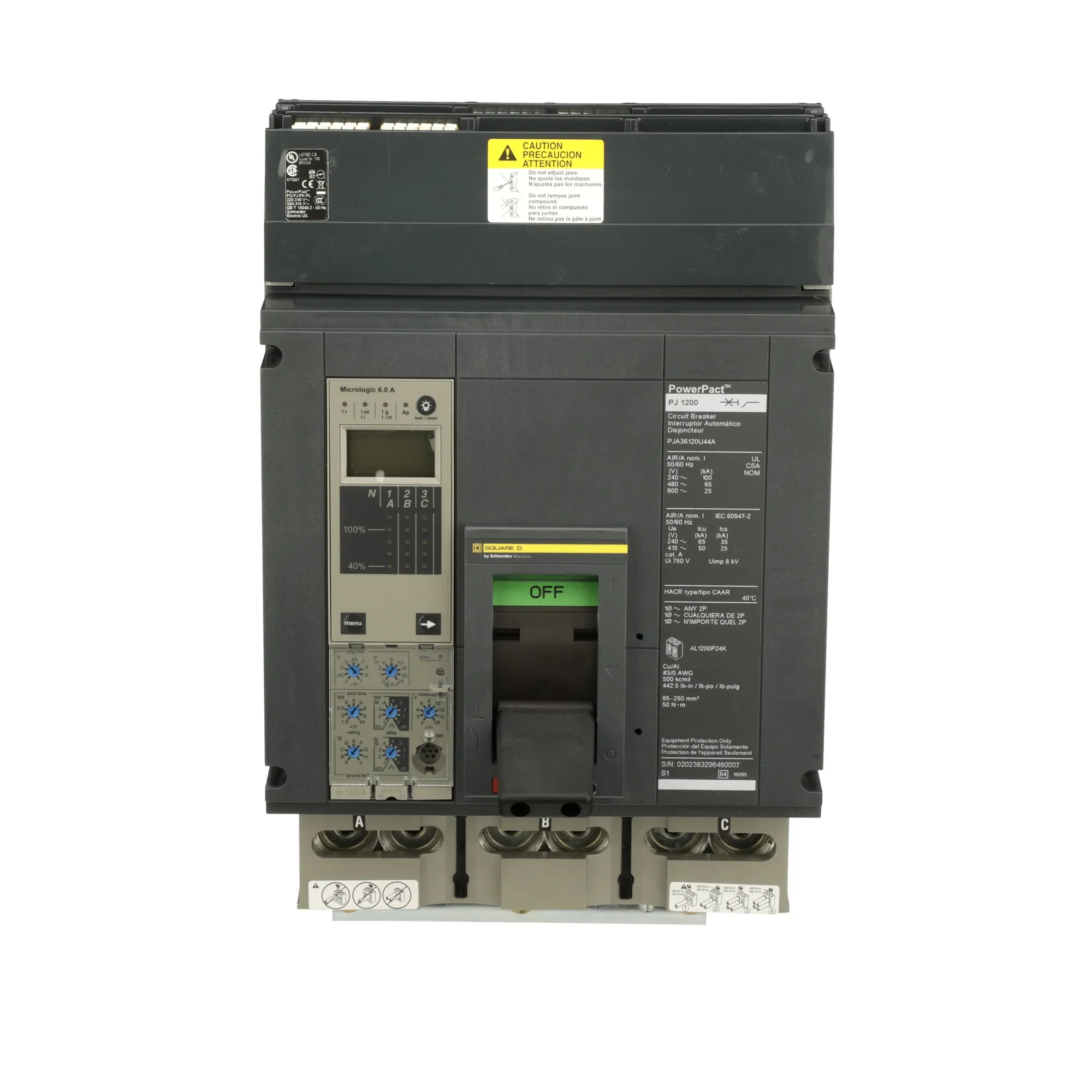

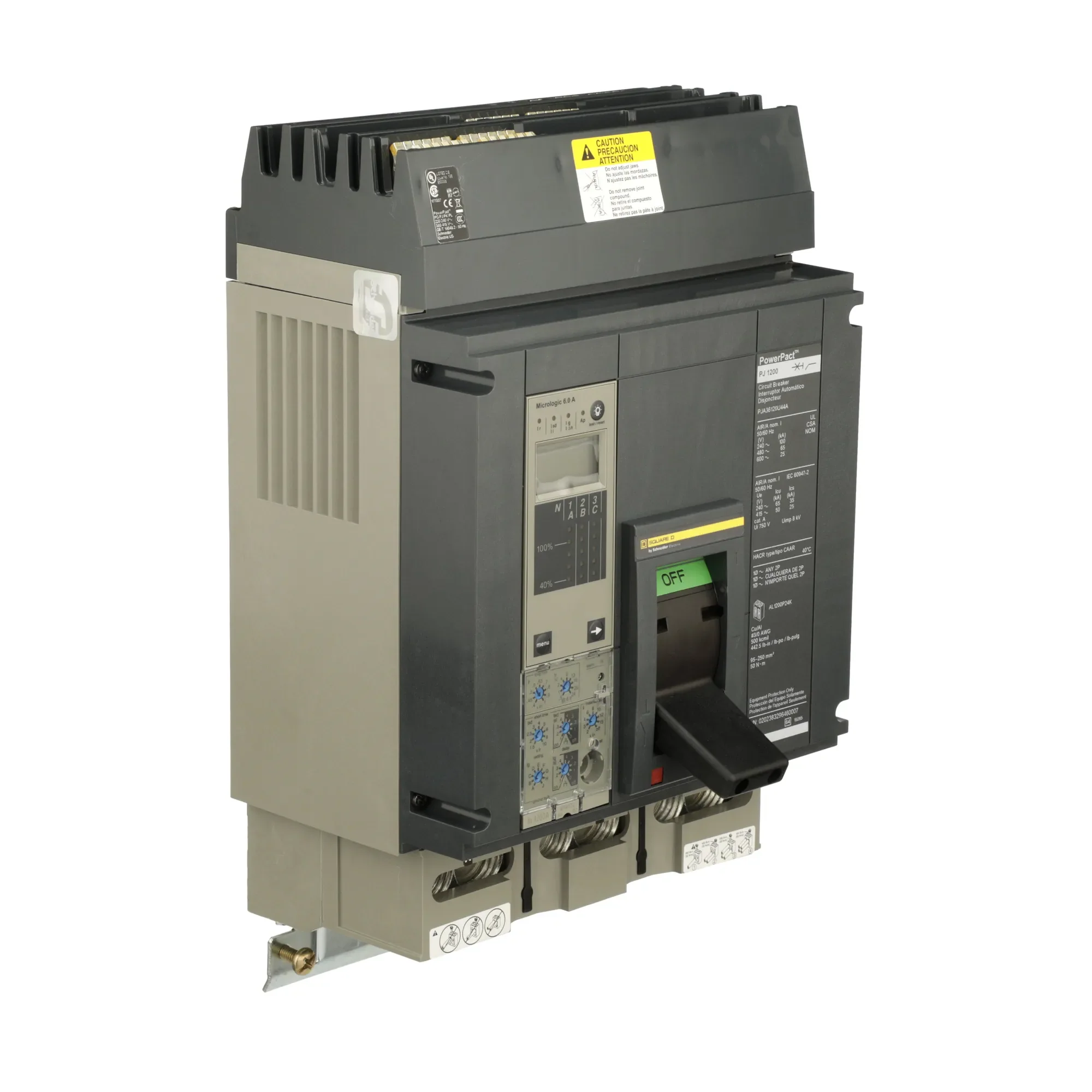

PJA36120U44A - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - PJA36120U44A - Square D Powerpact Circuit Breaker
-
Part Number:
PJA36120U44A -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
1200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
PJA -
Functions:
LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault -
Protection:
Solid State -
AIC Ratings:
65kA@480V

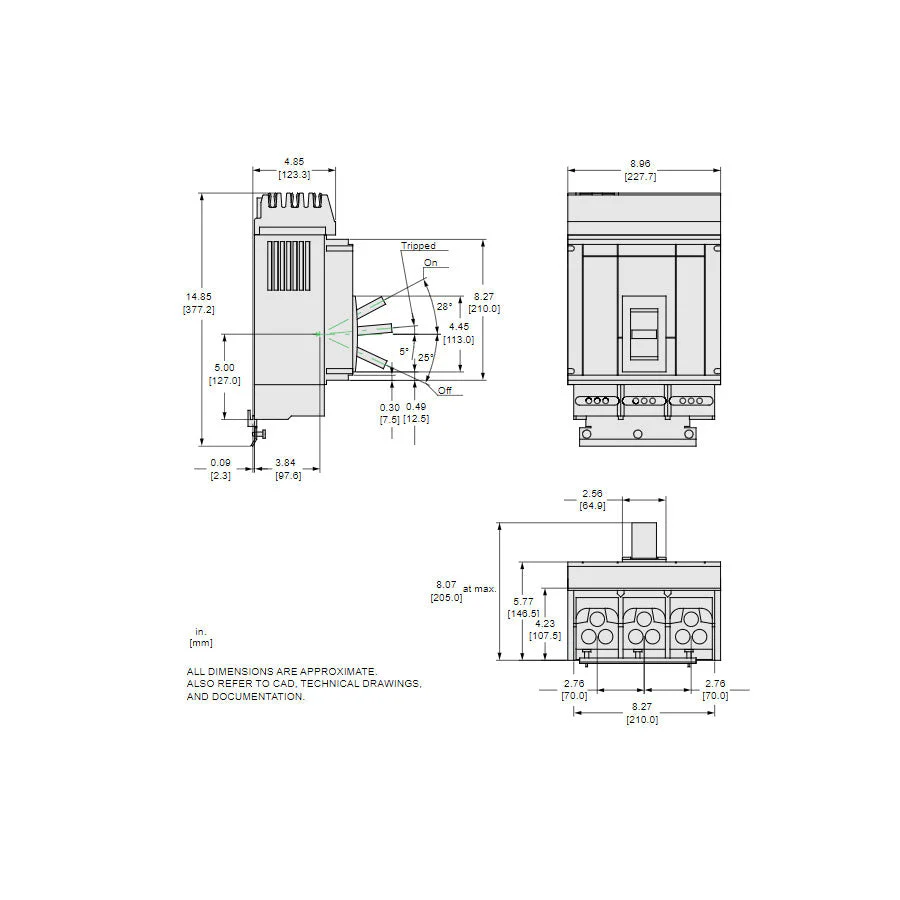

Dimensions
-
Dimensions (HxWxD):
16.16" x 8.27" x 8.05" -
Weight:
32 lbs
Standards
Additional Details
-
Frame Type:
P-Frame -
Trip Unit Technology:
Electronic, ammeter, MicroLogic 6.0 A, LSIG -
Line Rated Current:
1200 Amp
-
Breaking Capacity Code:
J -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Product Description - PJA36120U44A - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type PJA, 3P, ABC phase connection, 3PH, 1200A, 600V, 65kA@480V, UL listed, high interrupting capacity, i-line style plug-in, complete with micrologic interchangeable ammeter 6.0A trip.
Documentation
Select Condition
From $3,000.00
Original: $9,999.99
-70%PJA36120U44A - Square D - Molded Case Circuit Breaker—
$9,999.99
$3,000.00Product Information
