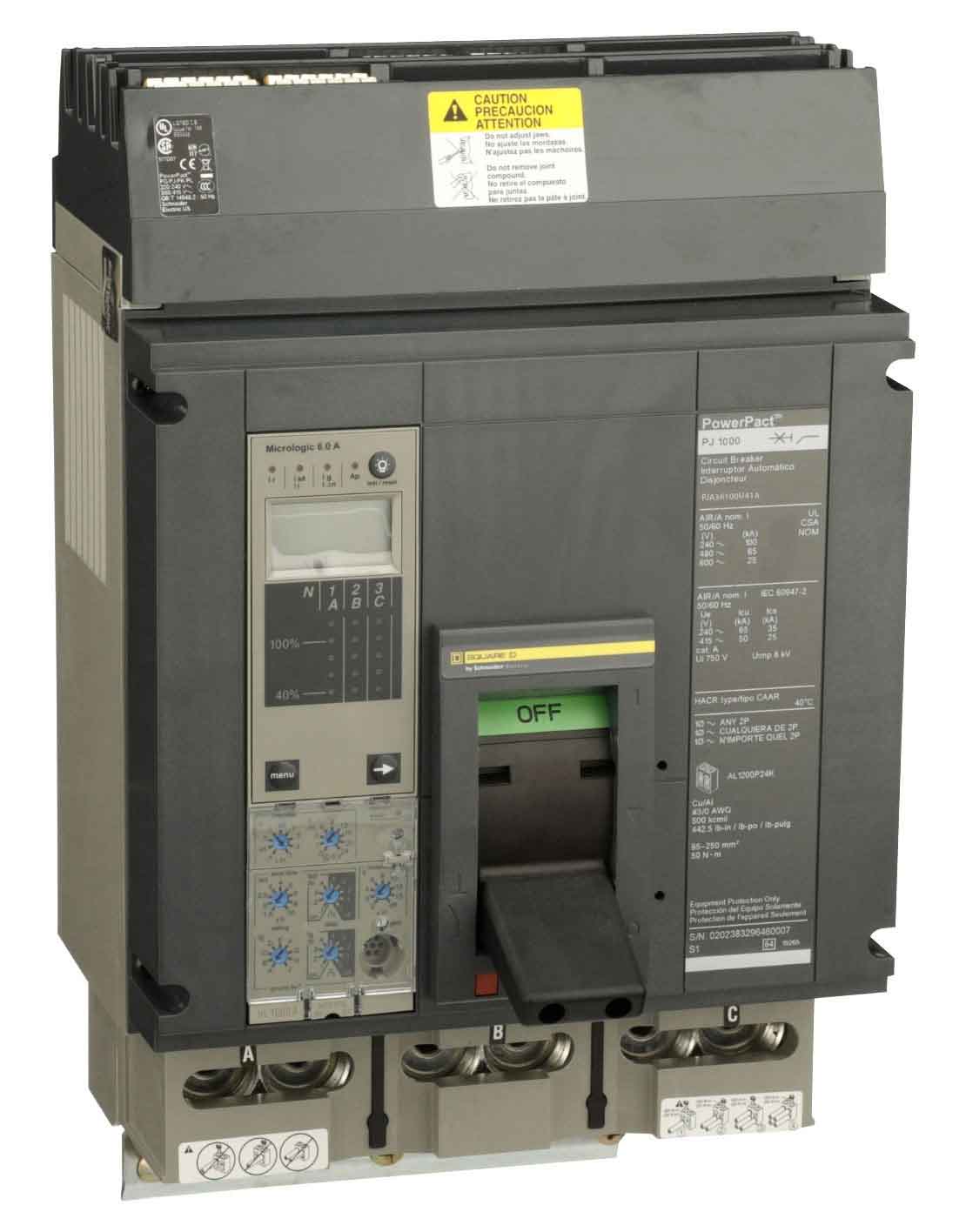

PJA36100U41A - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - PJA36100U41A - Square D Powerpact Circuit Breaker
-
Part Number:
PJA36100U41A -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
1000 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
PJA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
16.16" x 8.27" x 8.05" -
Weight:
32 lbs
Standards
Additional Details
-
Frame Type:
P-Frame -
Trip Unit Technology:
Electronic, ammeter, MicroLogic 3.0 A, LI -
Line Rated Current:
1000 Amp
-
Breaking Capacity Code:
J -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
4 x AWG 3/0...500 kcmil aluminium/copper
Product Description - PJA36100U41A - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type PJA, 3P, ABC phase connection, 3PH, 1000A, 600V, 65kA@480V, UL listed, high interrupting capacity, i-line style plug-in, complete with micrologic interchangeable ammeter 3.0A trip.
Documentation
Select Condition
From $2,151.90
Original: $7,172.99
-70%PJA36100U41A - Square D - Molded Case Circuit Breaker—
$7,172.99
$2,151.90Product Information
