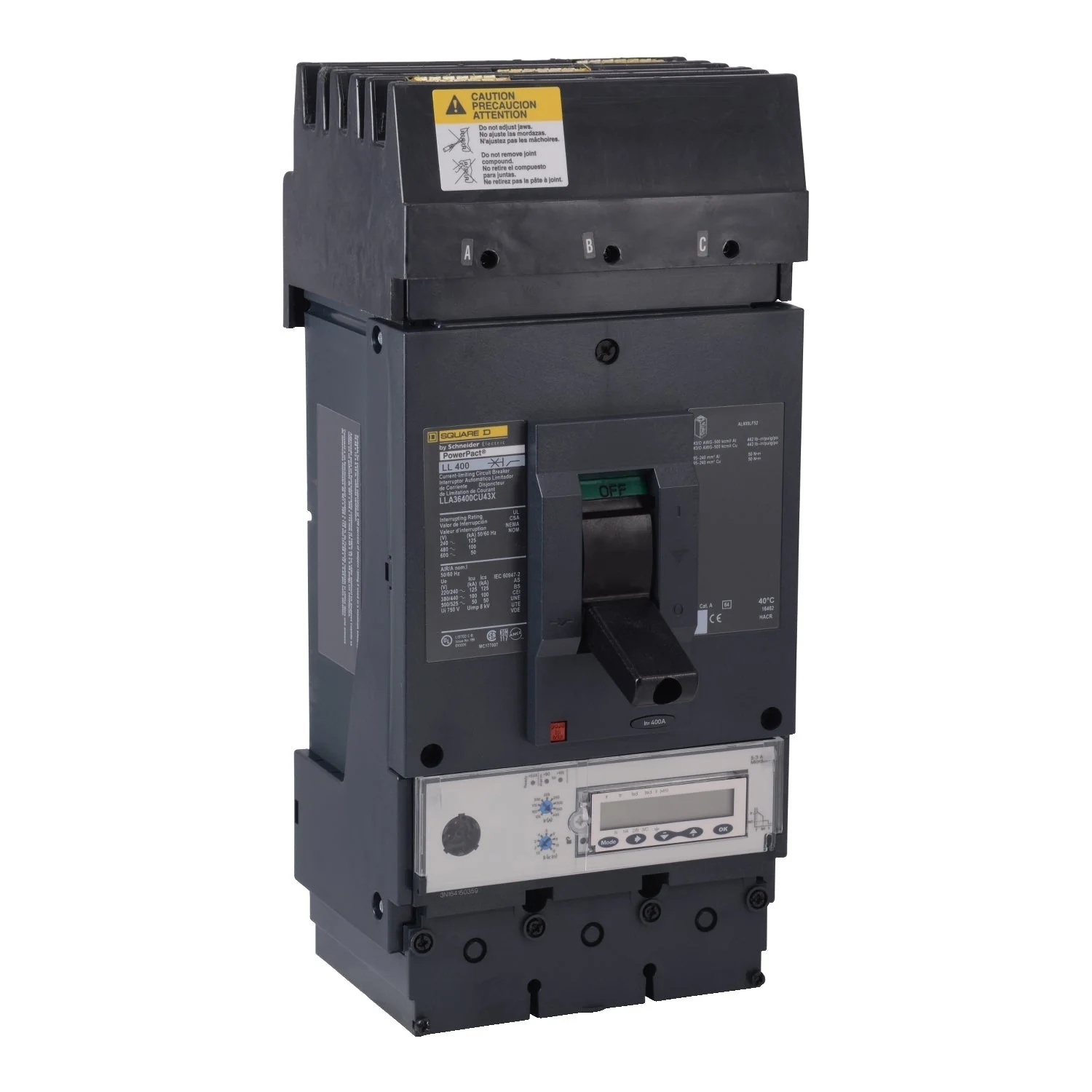

LRA36600U43X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - LRA36600U43X - Square D Powerpact Circuit Breaker
-
Part Number:
LRA36600U43X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
LRA -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
200kA@480V
Dimensions
-
Dimensions (HxWxD):
14.7" x 5.94" x 6.61" -
Weight:
13.67 lbs
Standards
Additional Details
-
Frame Type:
L-Frame -
Trip Unit Technology:
Electronic, standard, Micrologic 3.3 S, LSI -
Line Rated Current:
600 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
R -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...500 kcmil aluminium/copper
Product Description - LRA36600U43X - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type LRA, 3P, 3PH, 600A, 600V, 200kA@480V, UL listed, i-line style plug-in, suitable for reverse connection, complete with non-interchangeable micrologic ammeter 5.3A trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, solid state electronic, molded case circuit breakers.
