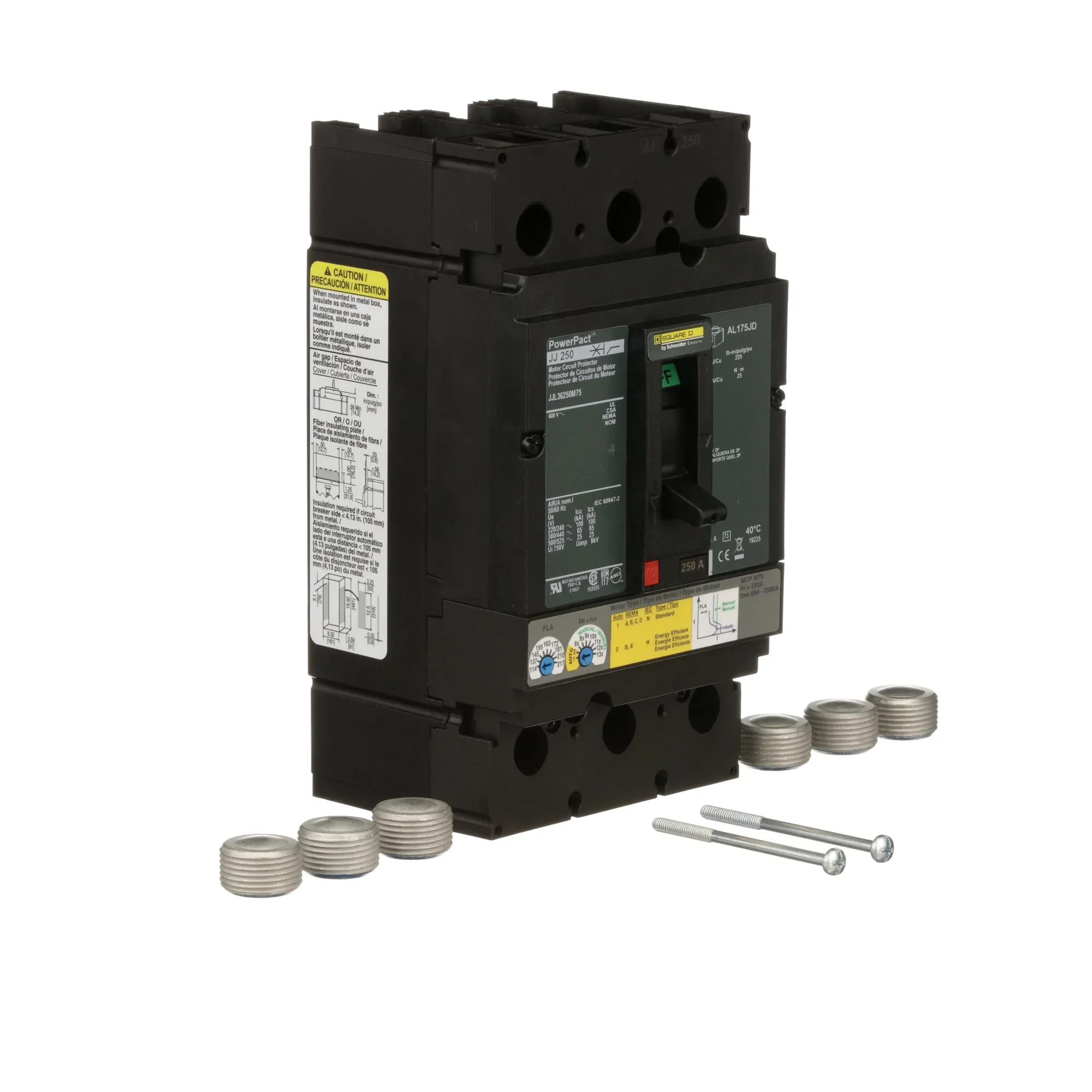

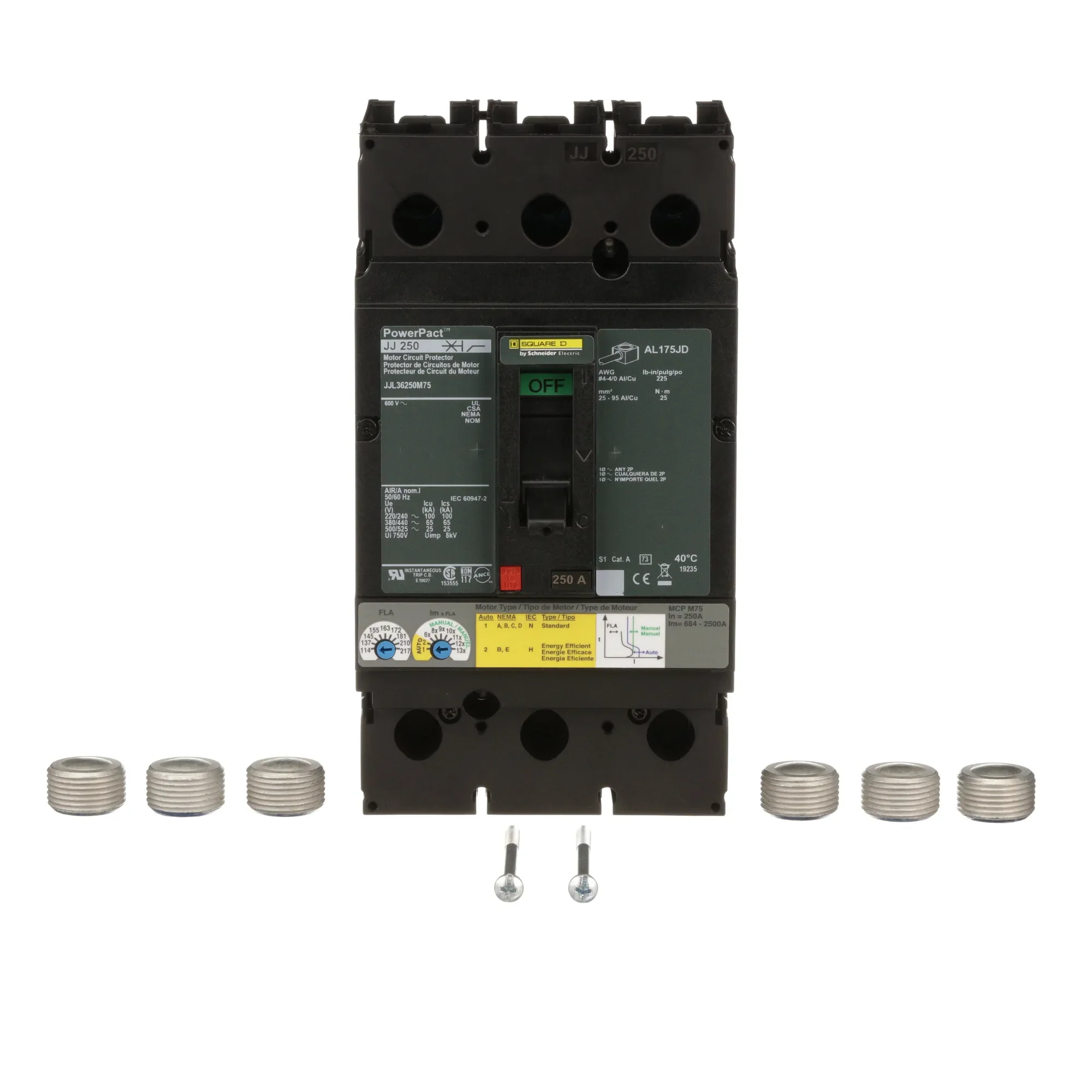

JJL36250M75 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - JJL36250M75 - Square D Powerpact Circuit Breaker
-
Part Number:
JJL36250M75 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
JJL -
Functions:
I - Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
7.52" x 4.12" x 5" -
Weight:
5.29 lbs
Standards
Additional Details
-
Protection Type:
Overload protection / Short-circuit protection -
Frame Type:
J-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
250 Amp -
Mounting Mode:
Unit-Mount Lug
-
Breaking Capacity Code:
J -
Electrical Connection:
Lug line / Lugs load -
Magnetic Hold Current:
1250 Amp -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Product Description - JJL36250M75 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type JJL, 3P, 3PH, 250A, 600V, 65kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 684-2500A, magnetic only, molded case circuit breakers.
Documentation
Original: $1,097.99
-70%$1,097.99
$329.40Product Information
