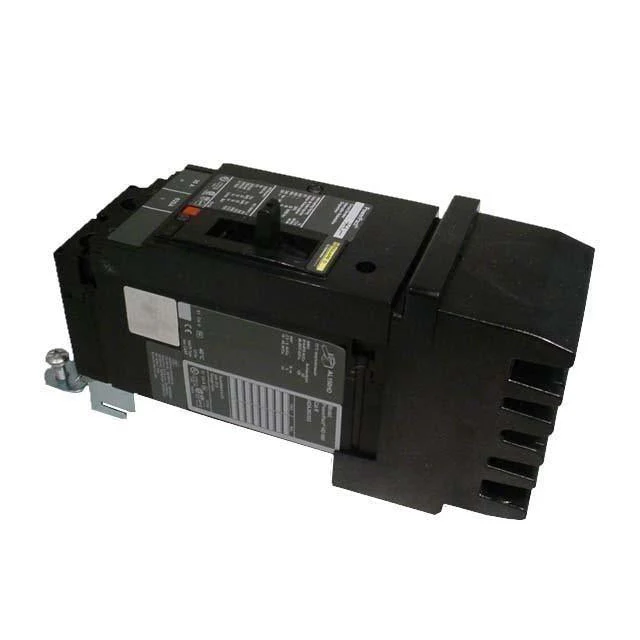

HJA260504 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - HJA260504 - Square D Molded Case Circuit Breakers
-
Part Number:
HJA260504 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
50 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
HJA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
9.73" x 2.94" x 4.8" -
Weight:
4.85 lbs
Additional Details
-
Frame Type:
H-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
50 Amp -
Magnetic Hold Current:
350 A -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
G -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Standards
Product Description - HJA260504 - Square D Molded Case Circuit Breakers
Square D, Powerpact, type HJA, 1PH, 2P, B & C phase connection, 50A, 600V, 65kA@480V, current limiting, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.
Select Condition
From $797.99
HJA260504 - Square D - Molded Case Circuit Breaker—
$797.99
