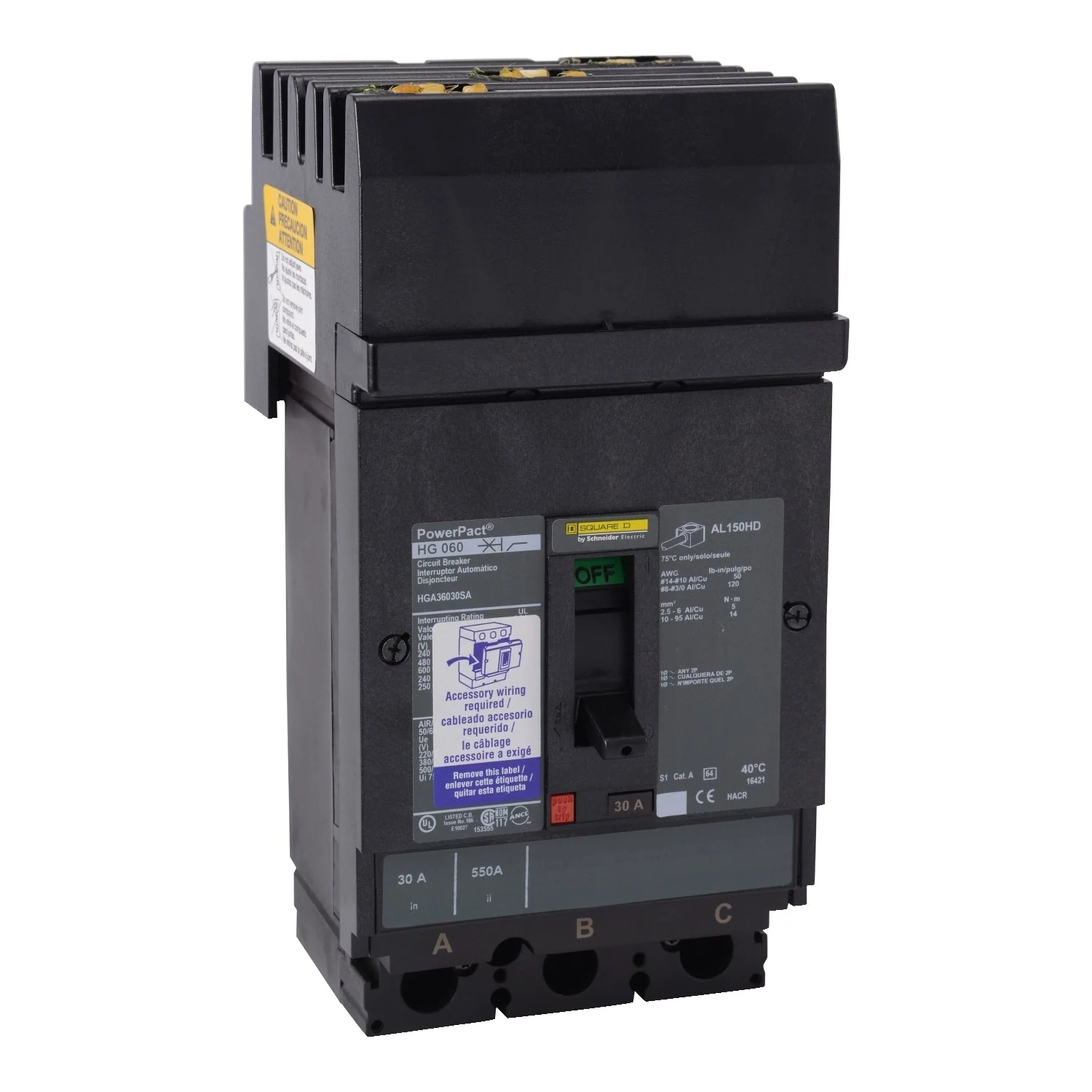

HGA36100U31X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - HGA36100U31X - Square D Powerpact Circuit Breaker
-
Part Number:
HGA36100U31X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
HGA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V

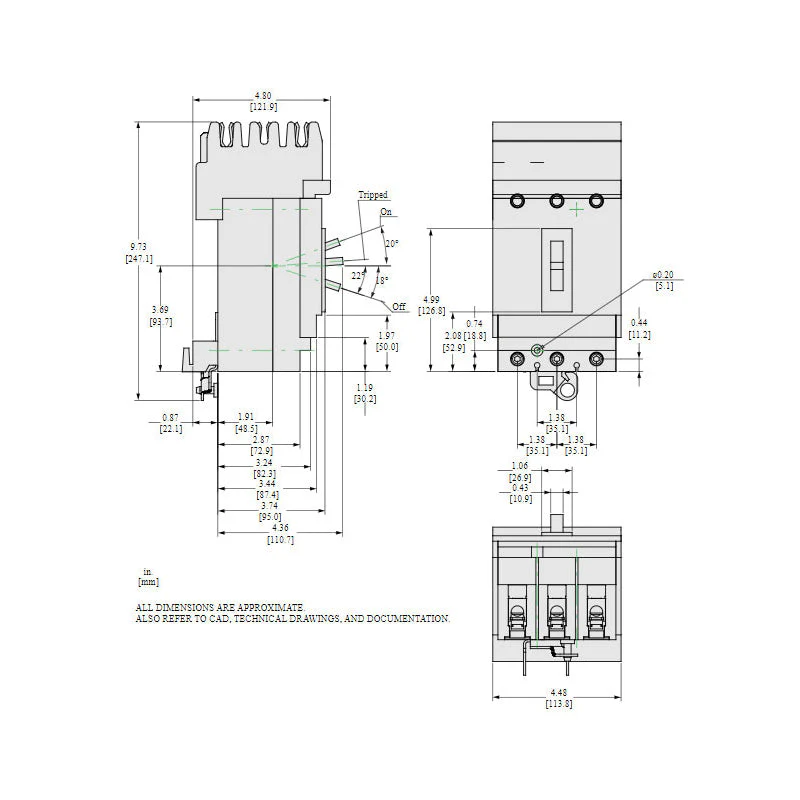

Dimensions
-
Dimensions (HxWxD):
9.73" x 4.48" x 4.8"
-
Weight:
4.85 lbs
Standards
Additional Details
-
Frame Type:
H-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
100 A -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
G -
Electrical Connection:
l-Line Connection line / Lugs load -
Magnetic Hold Current:
900 A -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HGA36100U31X - Square D Powerpact Circuit Breaker
Square D Powerpact HGA 3-phase 3-pole ABC connection, 100A 600V, 35kA@480V interrupting capacity, i-line plug-in, UL certified, reverse fed compatible, with non-interchangeable trip, LI function (Long-Time & Instantaneous), thermal-magnetic molded case circuit breakers.
