HDA36060U33X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - HDA36060U33X - Square D Powerpact Circuit Breaker
-
Part Number:
HDA36060U33X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
60 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
HDA -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V

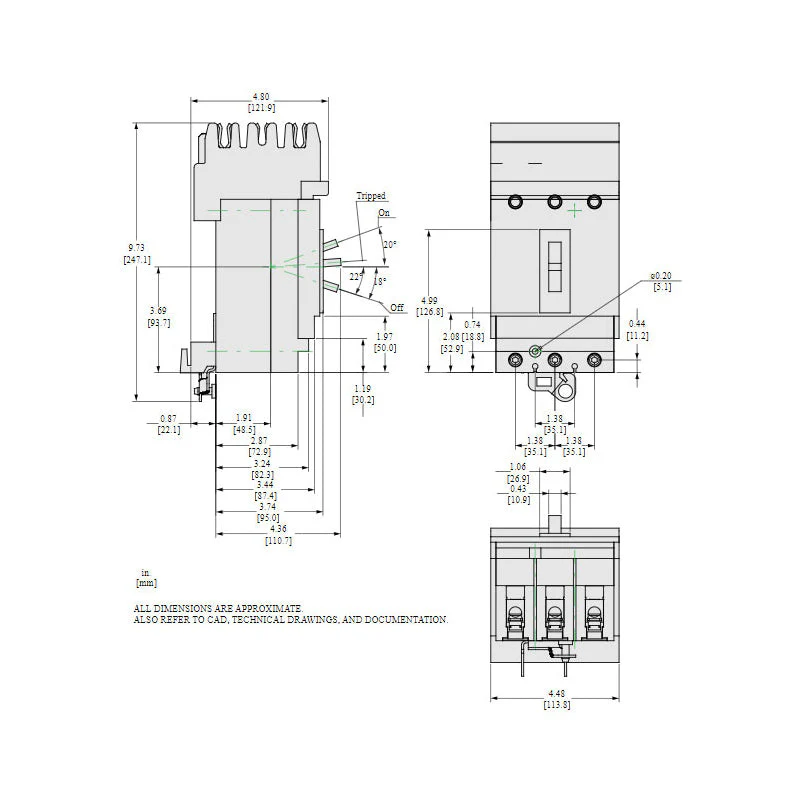

Dimensions
-
Dimensions (HxWxD):
6.42" x 4.09" x 3.39"
-
Weight:
4.85 lbs
Standards
Additional Details
-
Frame Type:
H-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
60 A -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
D -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HDA36060U33X - Square D Powerpact Circuit Breaker
Square D, Powerpact, type HDA, 3P, ABC phase connection, 3PH, 60A, 600V, 18kA@480V, standard interrupting capacity, i-line style plug-in, UL listed, suitable for reverse connection, can be used for 2P applications, complete with micrologic standard 3.2S non-interchangeable trip, LSI - Long-Time.
