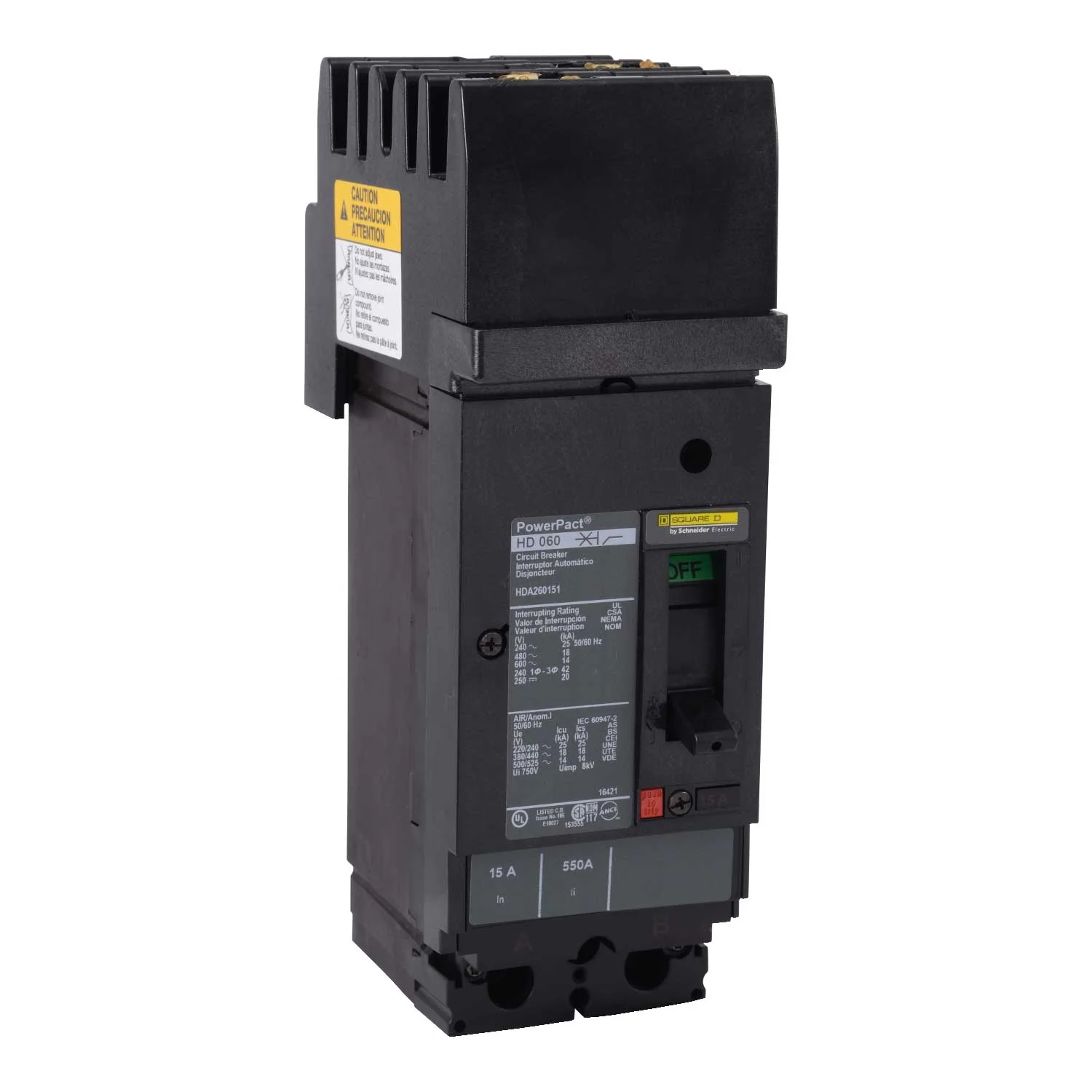

HDA261501 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - HDA261501 - Square D Powerpact Circuit Breaker
-
Part Number:
HDA261501 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
150 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
HDA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
9.73" x 2.94" x 4.8"
-
Weight:
1.36 lbs
Standards
Additional Details
-
Frame Type:
H-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
150 A -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
D -
Electrical Connection:
I-Line connection line / Lugs load -
Magnetic Hold Current:
900 A -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HDA261501 - Square D Powerpact Circuit Breaker
Square D, Powerpact, type HDA, 2P, A & B phase connection, 1PH, 150A, 600V, 18kA@480V, UL listed, standard interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic, molded case circuit breakers.
Documentation
Select Condition
From $256.20
Original: $853.99
-70%HDA261501 - Square D - Molded Case Circuit Breaker—
$853.99
$256.20Product Information
