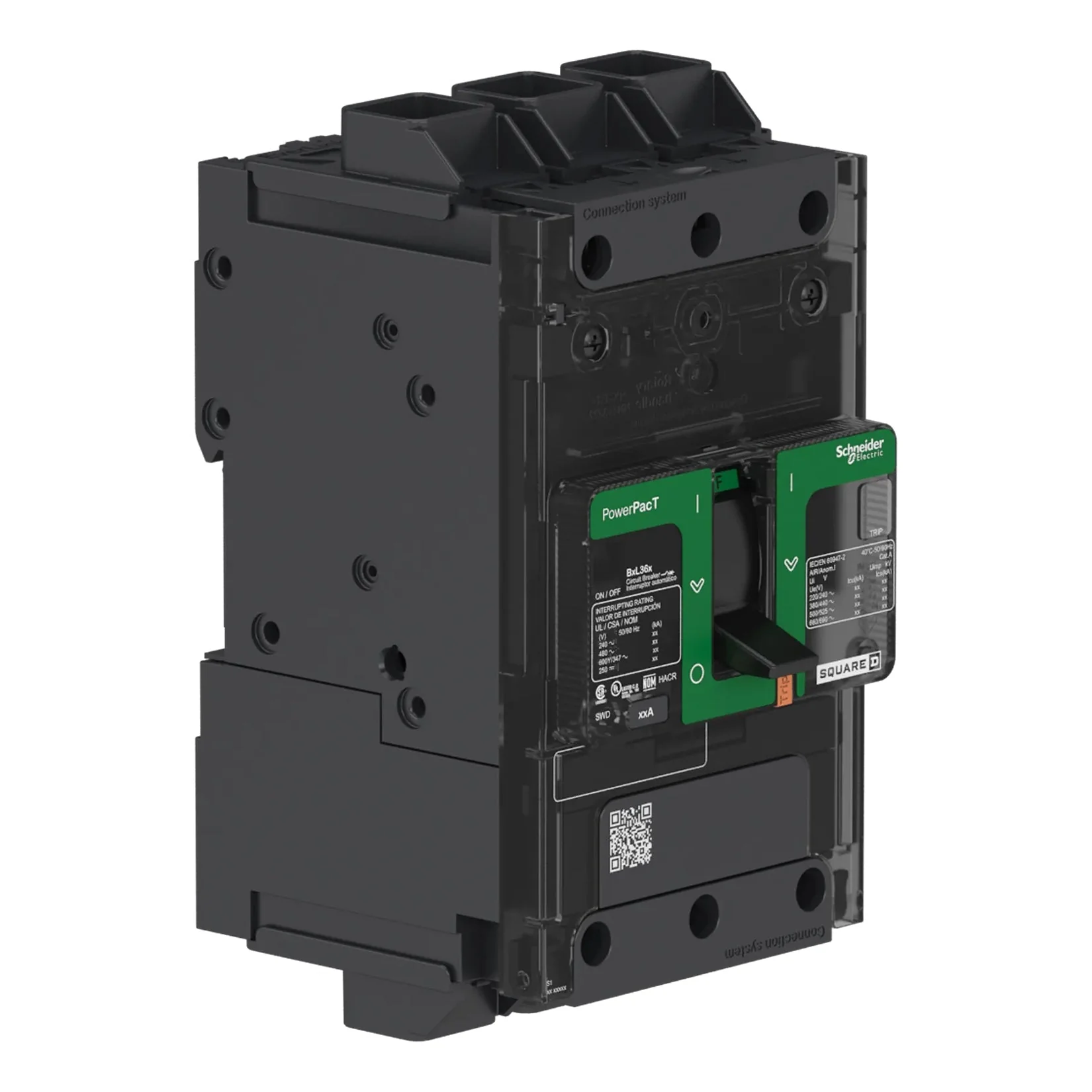

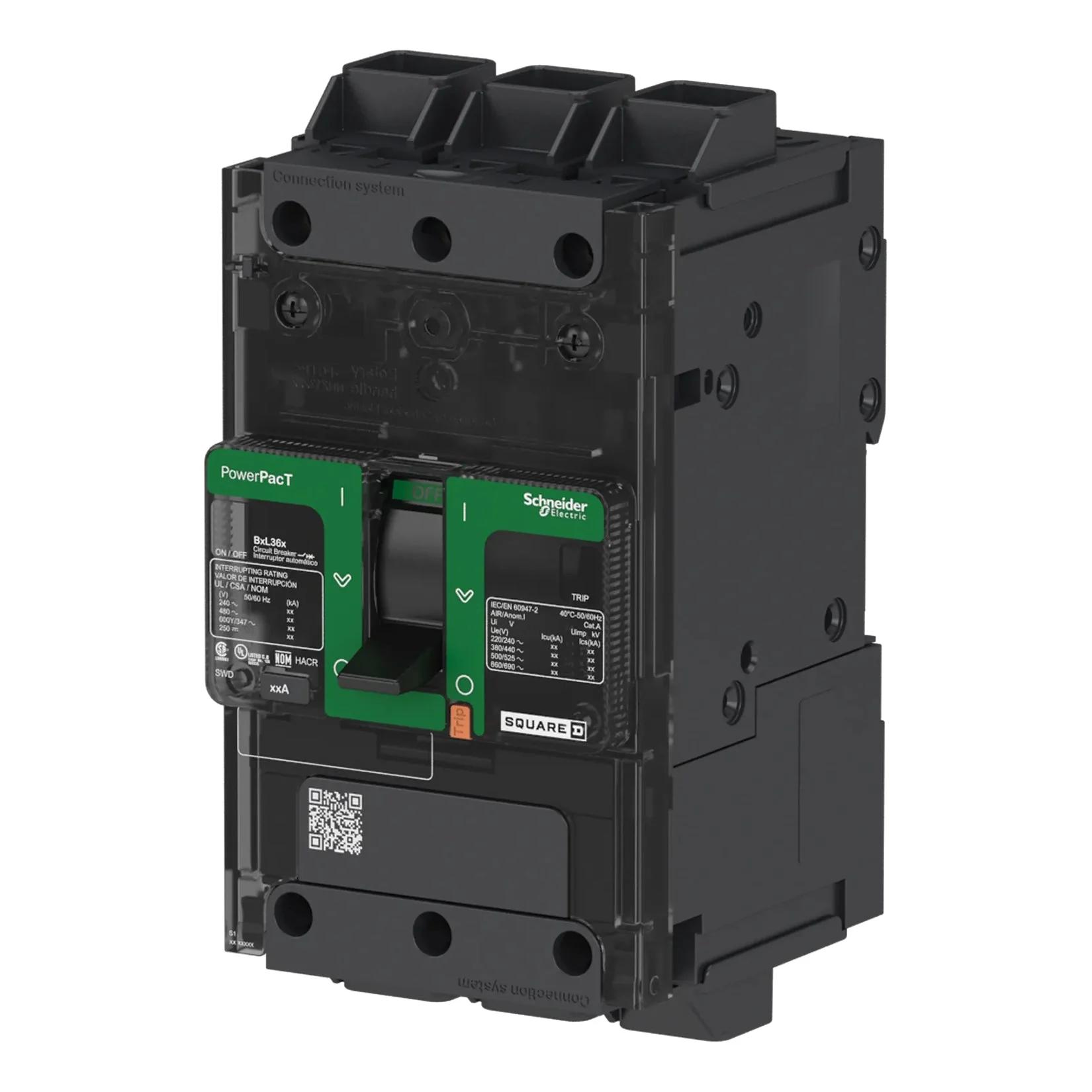

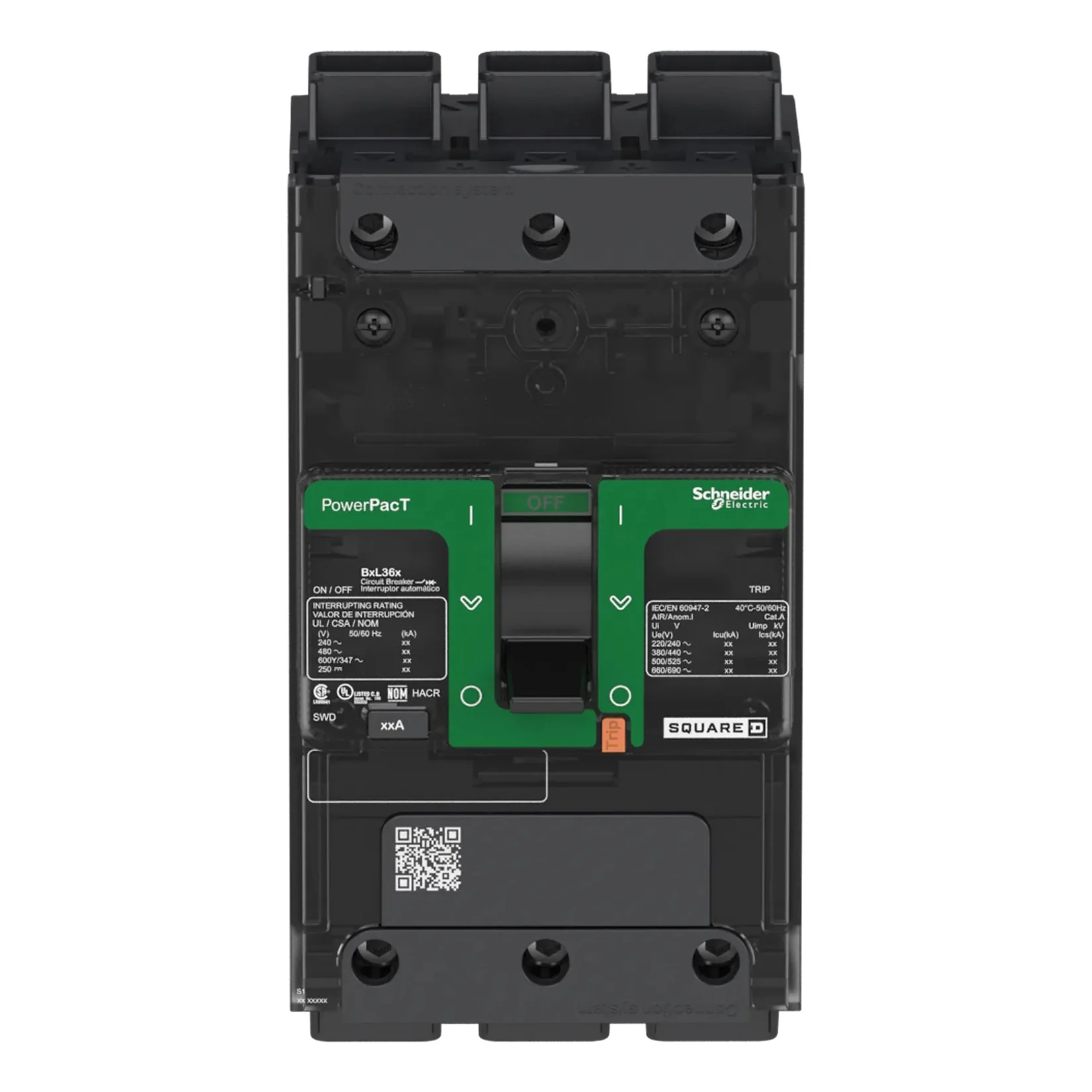

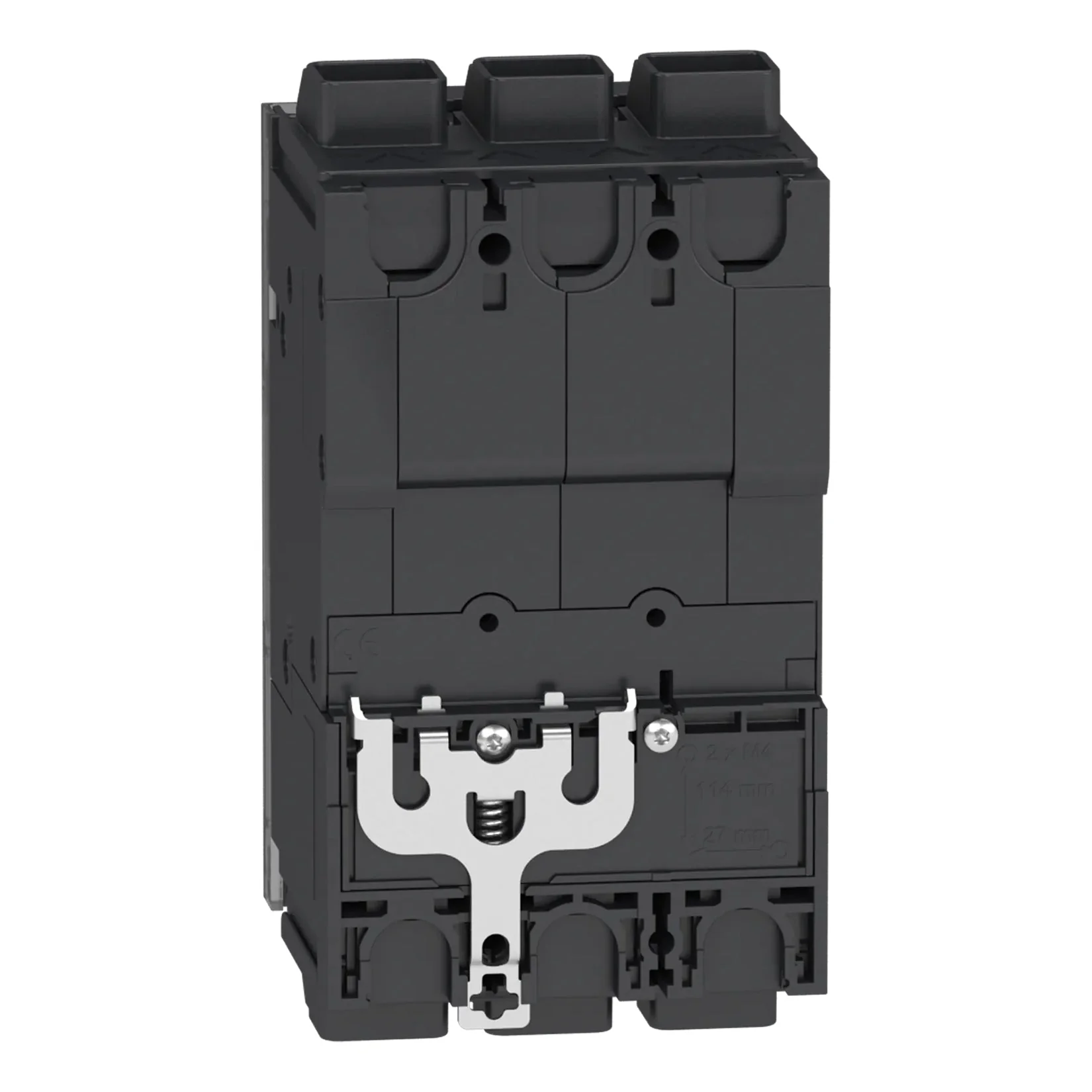

BGL36100 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - BGL36100 - Square D Molded Case Circuit Breakers
-
Part Number:
BGL36100 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
BGL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
5.39" x 3.19" x 3.15"
-
Weight:
2.37 lbs
Additional Details
-
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
100 Amp -
Mounting Mode:
I-Line
-
Breaking Capacity Code:
G -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 2/0 aluminium/copper
Standards
Product Description - BGL36100 - Square D Molded Case Circuit Breakers
Square D / Schneider Electric, Powerpact, type BGL, 3PH, 3P, 600Y/347Vac, 100A, 35kA@480V, feed-thru with EverLink connectors, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals.
