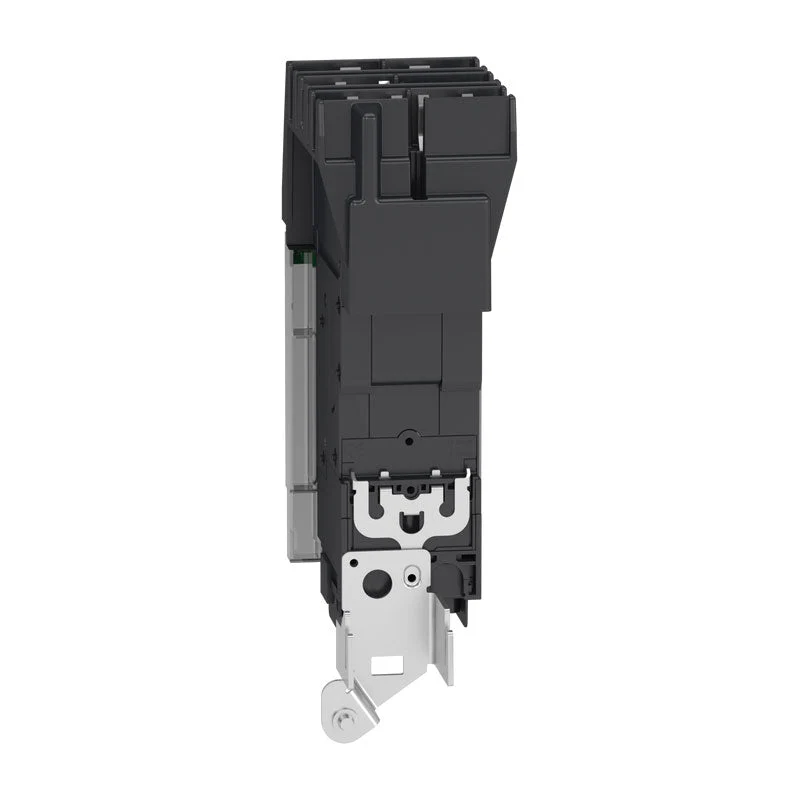

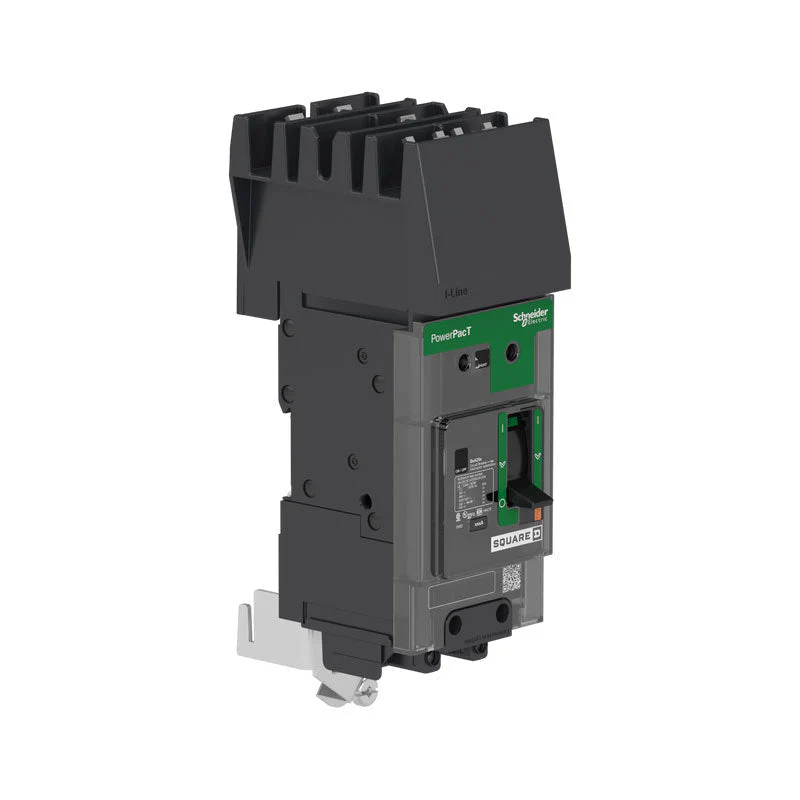

BGA261252 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - BGA261252 - Square D Molded Case Circuit Breakers
-
Part Number:
BGA261252 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
125 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
BGA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V

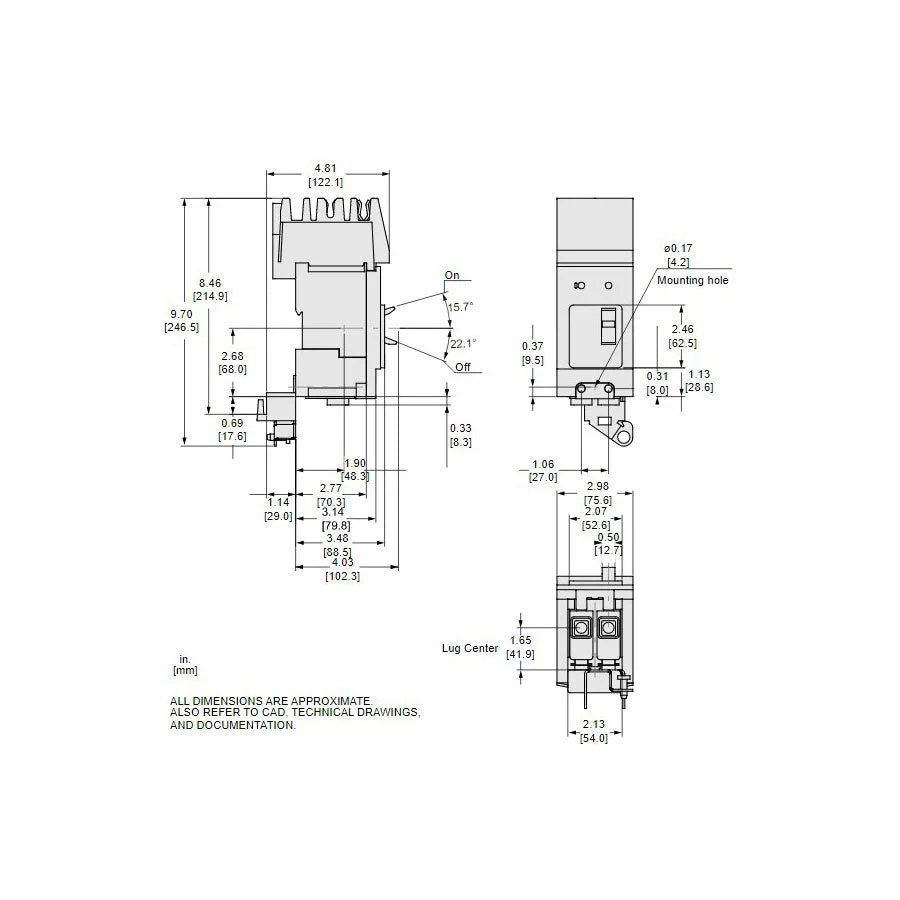

Dimensions
-
Dimensions (HxWxD):
5.39" x 2.13" x 3.50"
-
Weight:
2.37 lbs
Additional Details
-
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
125 Amp -
Mounting Mode:
I-Line
-
Breaking Capacity Code
G -
Electrical Connection:
I-Line Connection line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 2/0 aluminium/copper
Standards
Product Description - BGA261252 - Square D Molded Case Circuit Breakers
Schneider Electric,Square D, Powerpact, type BGA, 1PH, 2P, 600Y/347Vac, 125A, 35kA@480V, i-line style plug-in with AC phase connection, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, thermal magnetic.
