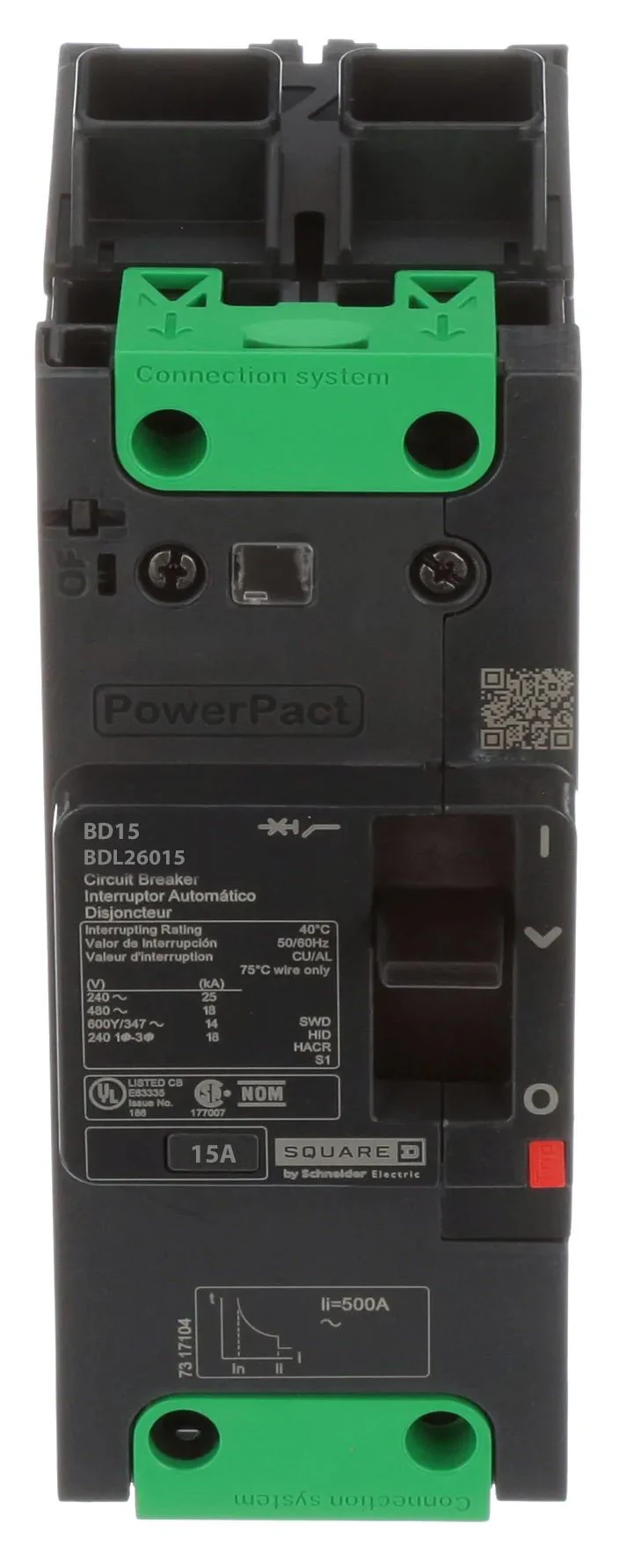

BDL26015 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - BDL26015 - Square D Powerpact Circuit Breaker
-
Part Number:
BDL26015 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
15 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
BDL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
5.39" x 2.13" x 3.15"
-
Weight:
1.70 lbs
Standards
Additional Details
-
Module Type:
B-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
15 Amp -
Mounting Mode:
Clip-on 35 x 15 mm symmetrical DIN rail) By screws plate)
-
Breaking Capacity Code
D -
Electrical Connection:
Everlink lug line, Everlink lug load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Product Description - BDL26015 - Square D Powerpact Circuit Breaker
Square D / Schneider Electric, Powerpact, type BDA, 3PH, 3P, 600Y/347Vac, 125A, 18kA@480V rated, i-line style plug-in with ABC phase connection, complete with non-interchangeable trip
Documentation
ÂÂ
Select Condition
From $77.10
Original: $256.99
-70%BDL26015 - Square D - Molded Case Circuit Breaker—
$256.99
$77.10Product Information
