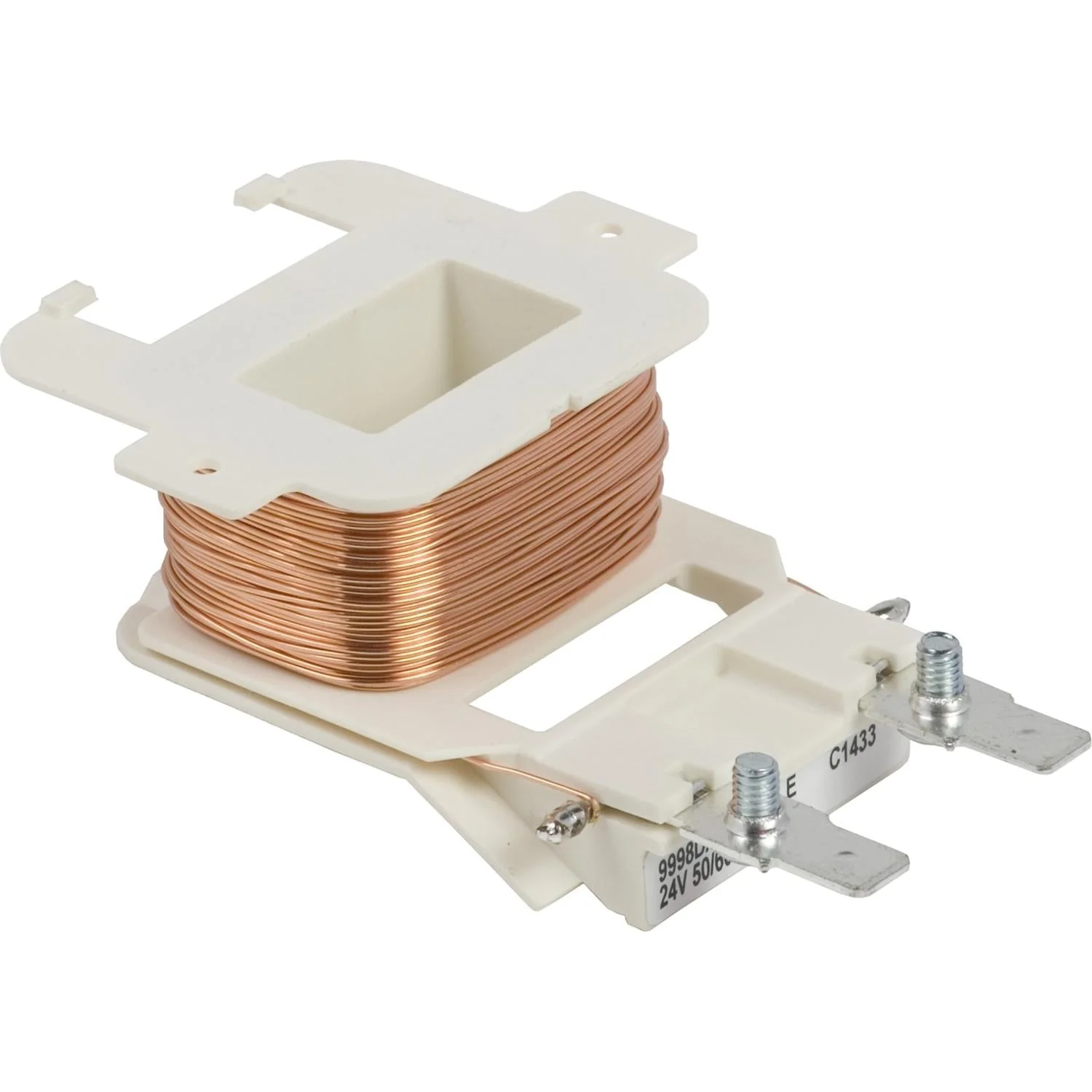

9998DA2V14 - Square D - Magnetic Coil
Overview
Product Specifications - 9998DA2V14 -Square D Magnetic Coil
-
Part Number:
9998DA2V14 -
Manufacturer:
-
Family:
Class 9998 -
Volt:
24
-
Category:
-
Type:
DA
Dimensions
-
Dimensions (HxWxD):
3.27 x 2.56 x 3.67 -
Weight:
0.15 lbs
Standards
Product Description - 9998DA2V14 -Square D Magnetic Coil
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This replacement coil is for 8910DPA5 or 8910DPA6 definite purpose contactor rated 50A or 60A with 2 or 3 poles. Replacement coils are available with a variety of coil voltages. This 24 VAC 50/60 Hz coil is for a 8910DPA5 and 8910DPA6 definite purpose contactor. The inrush power of this coil is 109 VA. It has an average sealed consumption of 10 VA. This coil is 3.27 inches tall, 2.56 inches wide and 3.67 inches deep. This coil is used in a contactor that is UL listed and CSA certified.
Original: $84.99
-70%$84.99
$25.50Product Information
