LRD1512 - Square D - Overload Relay
Overview
Product Specifications - LRD1512 - Square D Overload Relay
-
Part Number:
LRD1512 -
Manufacturer:
-
Family:
TeSys D -
Amp:
8
-
Category:
-
Type:
LRD
Dimensions
-
Dimensions (HxWxD):
1.77 x 3.62 -
Weight:
0.42 lbs
Standards
Product Description - LRD1512 - Square D Overload Relay

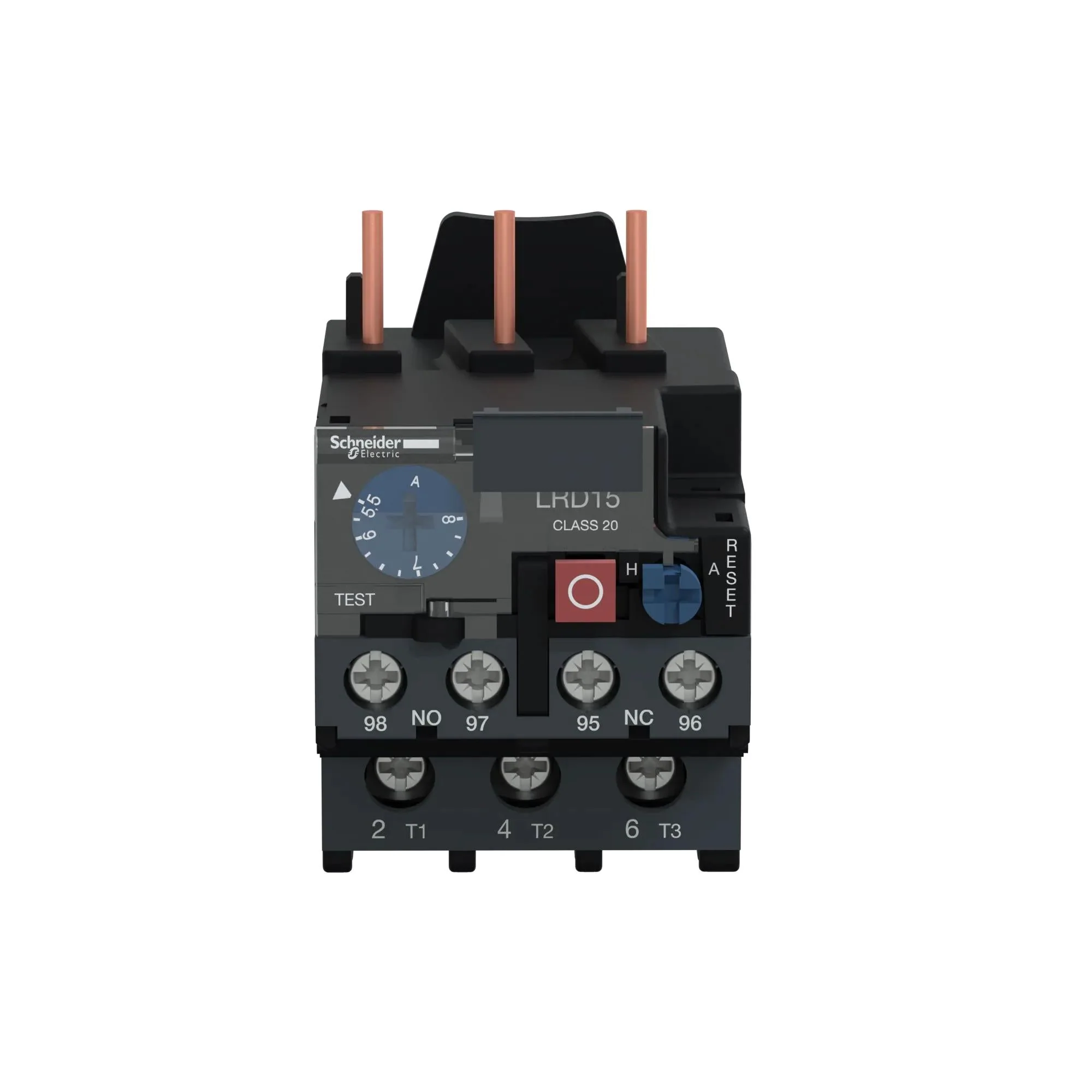

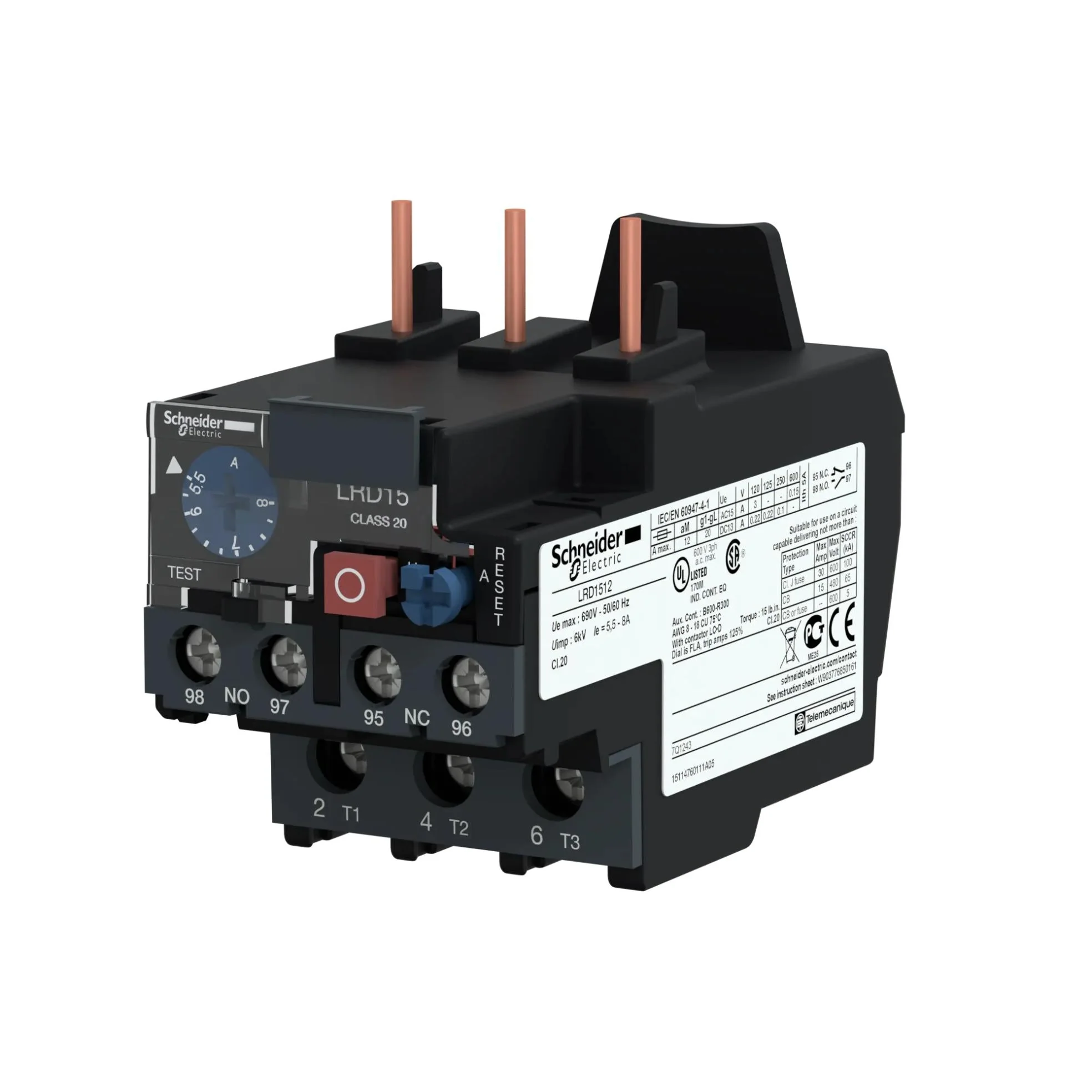

TeSys LRD thermal overload relay, 8A/690V, thermal setting range 5.5-8A, tripping class 20, for protection of 3-phase motors 3kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signaling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B105 (to be ordered separately). Multi standards certified (IEC, UL, CSA, Marine), Green Premium compliant (RoHS/REACh).
Original: $99.99
-70%$99.99
$30.00Product Information
