Product Specifications - 9001BW241 - Square D Control Station

---

Standards

---

Product Description - 9001BW241 - Square D Control Station

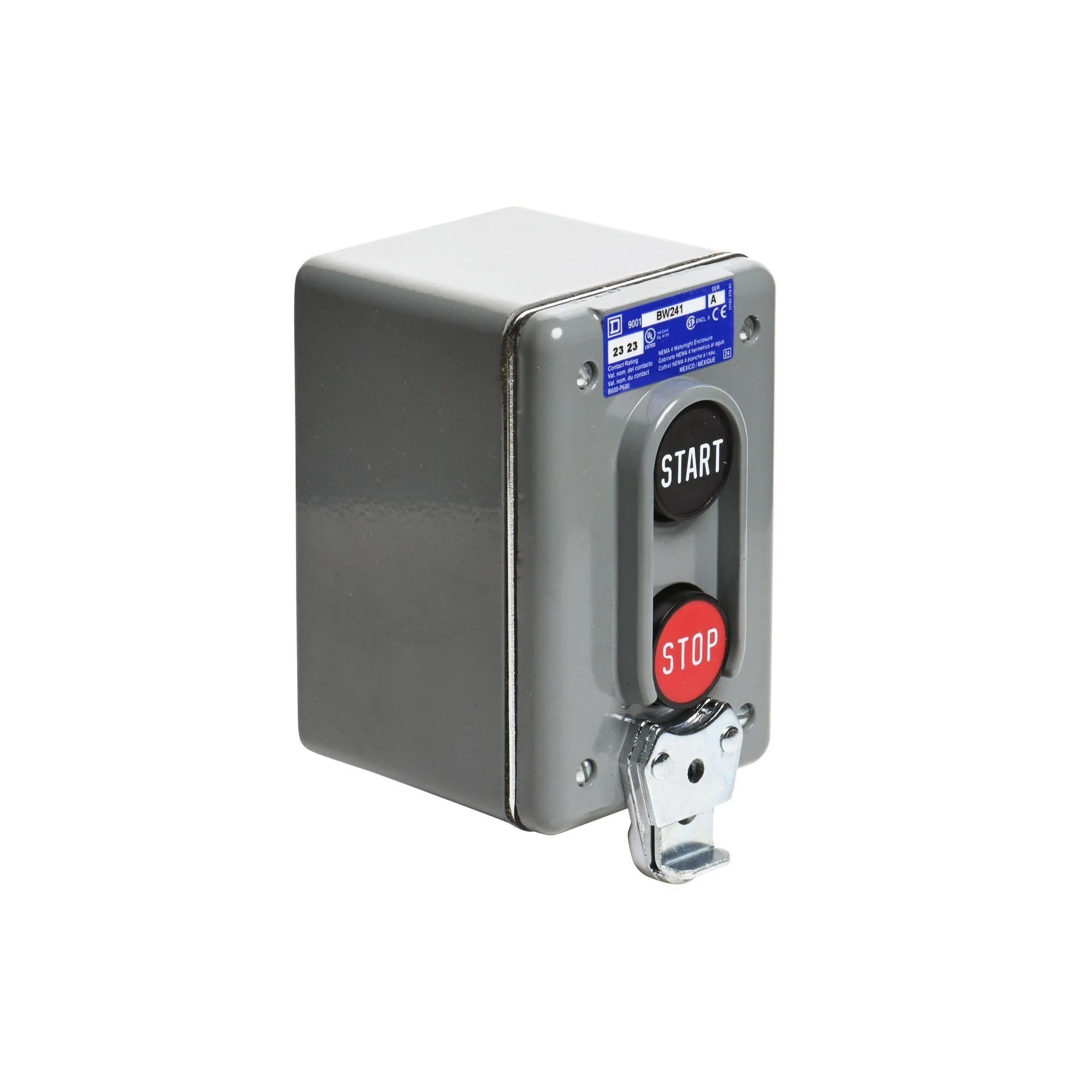

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two round momentary push buttons. It has a START push button with a normally open contact. It has a STOP push button with a normally closed contact. The STOP push button has a lockout on it. This NEMA 4 watertight and dusttight control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.

---
