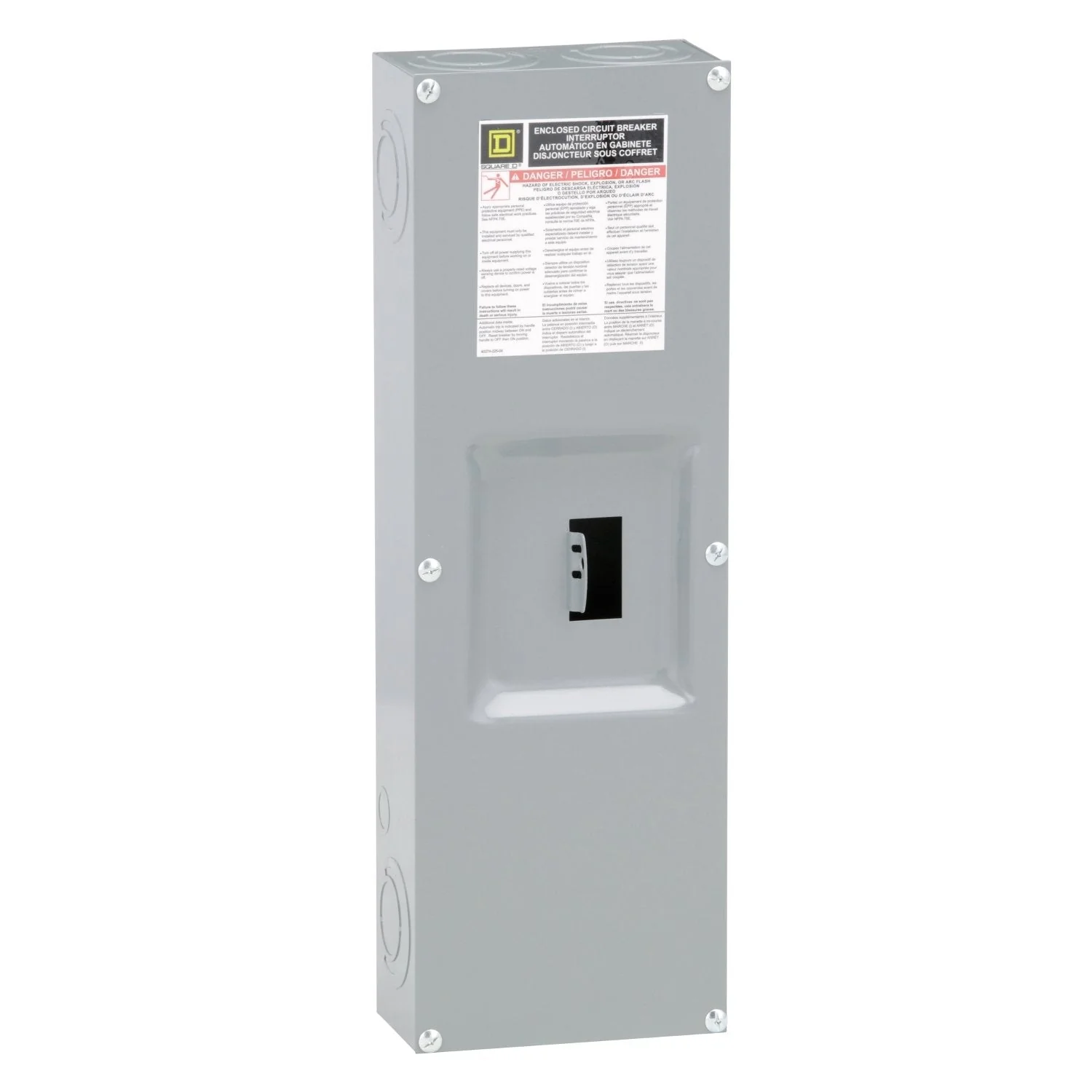

Q22200NS - Square D Electric Circuit Breaker Enclosure

Schneider Electric circuit breaker enclosure measuring is ideally used for a current rating of 100 - 200 amps. the enclosure is made up of steel which is durable and is surface mounted. it is used for 2 pole q2l/q2l-h/q2lh circuit breakers and measures 7.63 Inch x 4.25 Inch x 23.13 Inch. circuit breaker enclosure is UL listed and CSA certified.

Specifications:

• Circuit breaker type: Q-Frame
• Enclosure material: Steel
• Width: 7.64 in (194 mm)
• Height: 588 mm
• Depth: 4.25 in (108 mm)
• Rated voltage: 240 V at AC
• Line Rated Current: 200 A
• Poles description: 2P
• NEMA degree of protection: NEMA 1
• Product certifications: CSA, UL
• Authentic Square D Product
• Dimensions (H x W x L): 23.14" x 7.64" x 4.25"
