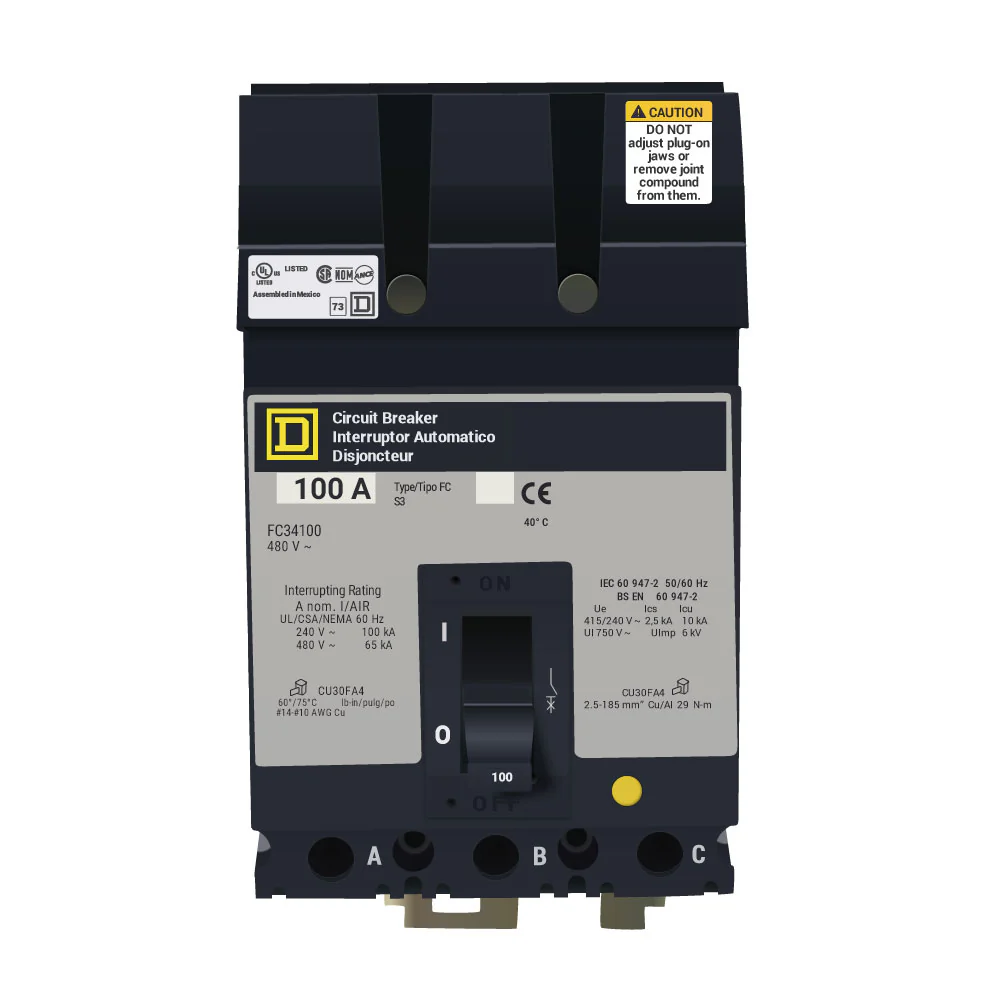

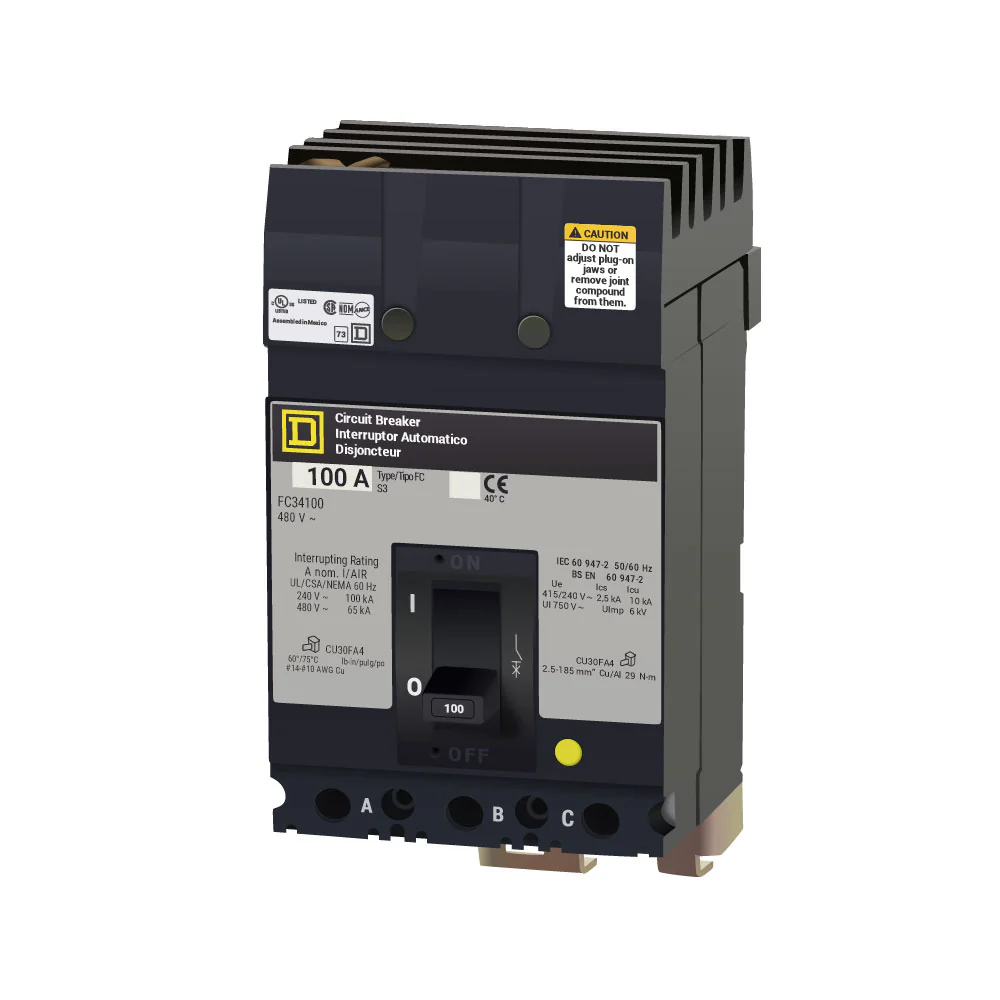

FC34100 - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - FC34100 - Square D Molded Case Circuit Breakers
-
Part Number:
FC34100 -
Manufacturer:
-
Family:
I-Line -
Pole:
3 -
Amp:
100 -
Volt:
480 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
F Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
7.5 x 12 x 7.4 -
Weight:
4.46 lbs
Standards
Product Description - FC34100 - Square D Molded Case Circuit Breakers
The FC34100 is another type FC molded case circuit breaker from Square D's I-Line series. It features 3 poles (3P), operates in three phases (3PH), with a current rating of 100A at 480V. Similar to the previous models, it boasts a high interrupting capacity of 65kA at 480V and offers Long-Time and Instantaneous trip functions. This Thermal Magnetic circuit breaker is designed for I-Line Style Plug-In installations, providing reliable protection for various industrial applications.
