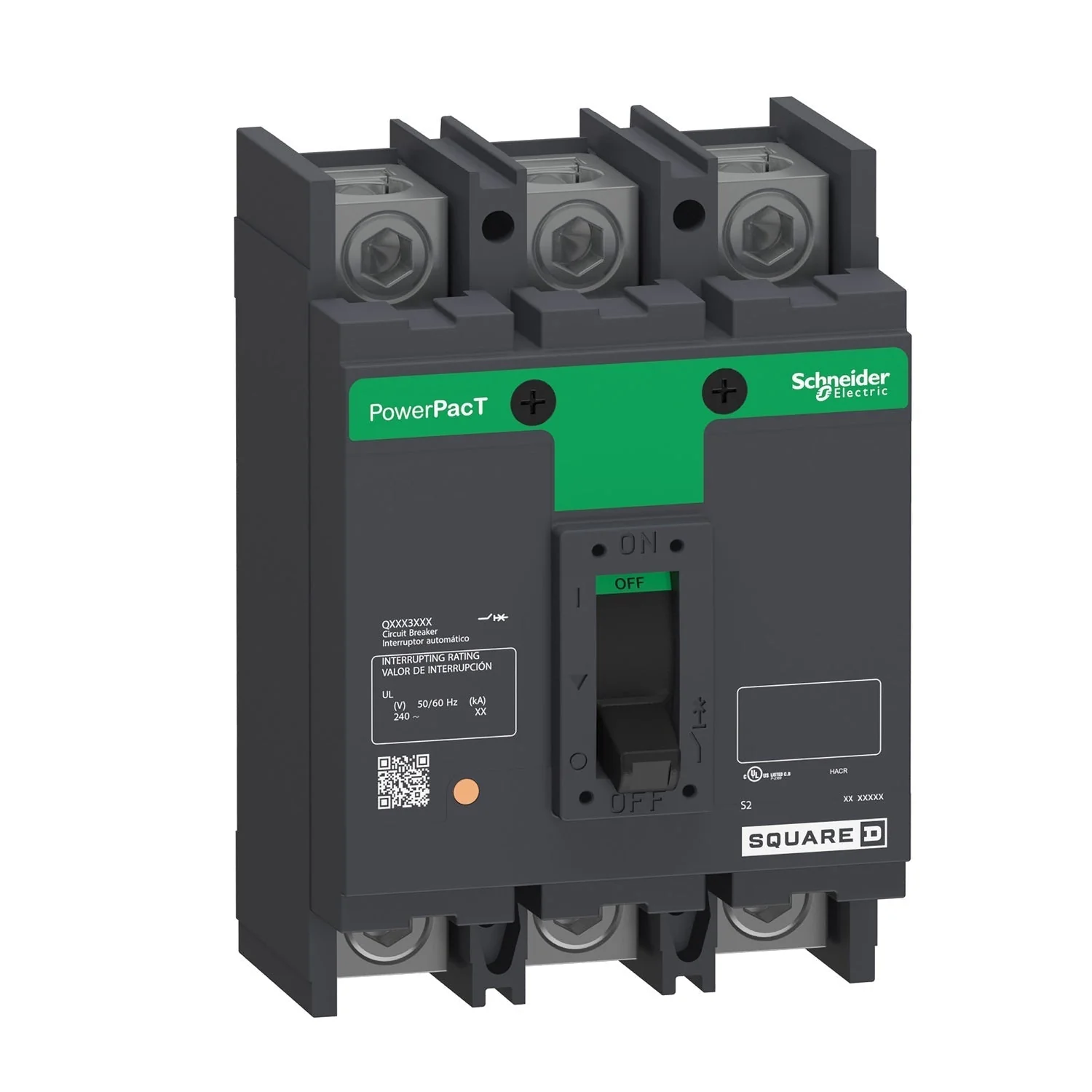

QDP32100TM - Square D - 100 Amp Molded Case Circuit Breaker
Overview
Product Specifications - QDP32100TM - Square D Powerpact Circuit Breaker
-
Part Number:
QDP32100TM -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
100 -
Volt:
240 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
QDP -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@240V
Dimensions
-
Dimensions (HxWxD):
6.47" x 4.5" x 3.93"
-
Weight:
4.9 lbs
Standards
Additional Details
-
Frame Type:
Q-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
100 Amp -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code:
D -
Electrical Connection:
Terminal nut line/Lugs load -
Magnetic Hold Current:
1200 Amp -
Continuous Current Rating:
80% -
Control Type:
Operating handle
Product Description - QDP32100TM - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type QDP, 3P, 3PH, 100A, 240V, 25kA@240V, UL listed, standard interrupting capacity, bolt-on, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line side lug terminals, top feed main, thermal magnetic, molded case circuit breakers.
