Overview
Product Specifications - SHLD69500NT Siemens Molded Case
-
Part Number:
SHLD69500NT -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
500 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
LD Frame -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
7.5 x 11 x 4. -
Weight:
21
Standards
Product Description - SHLD69500NT Siemens Molded Case

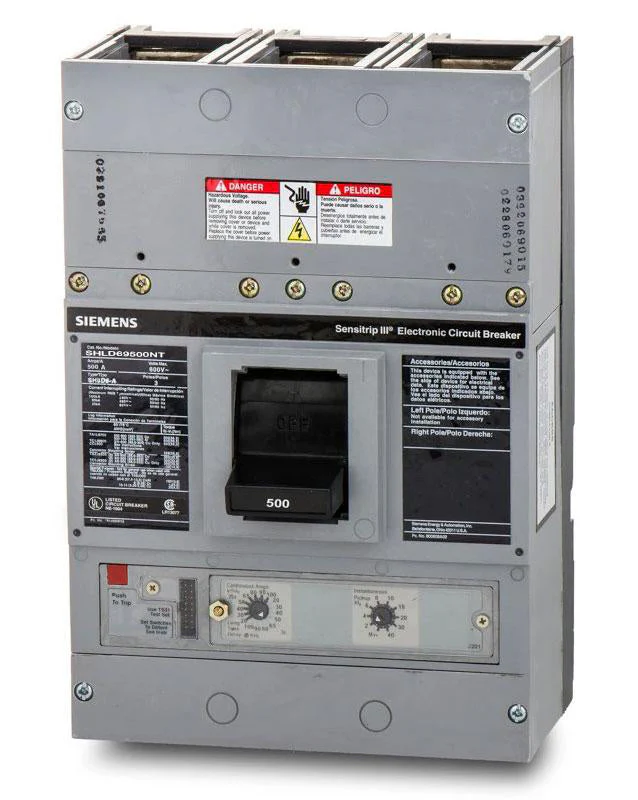

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP (ETU). STANDARD 40 DEG C BREAKER LD FRAME WITH HIGH BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 500A 3-POLE BREAKER (35KAIC AT 600V) (65KAIC AT 480V) LSI. SENSITRIP FUNCITIONS. SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE: 3/0AWG - 500KCM (CU) / 4/0AWG - 500KCM (AL). DIMENSIONS (W x H x D) IN: 7.5 x 11 x 4.
Original: $4,285.99
-70%$4,285.99
$1,285.80Product Information
