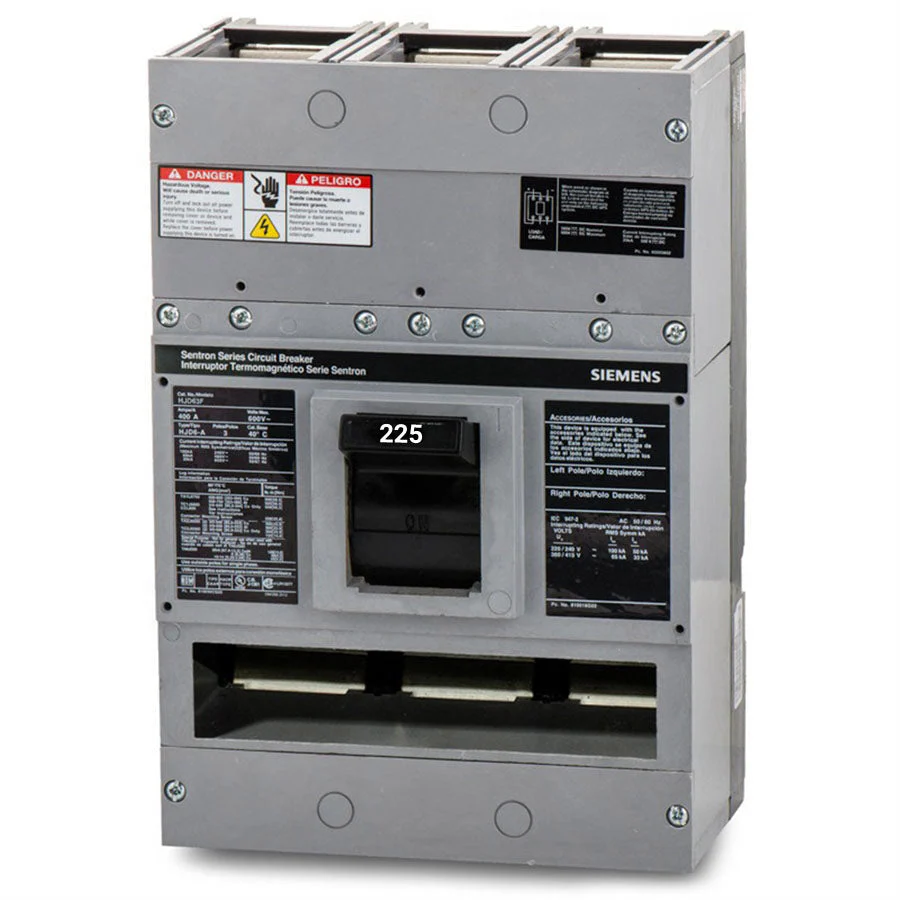

HHJD63B225 - Siemens - Molded Case
Overview
Product Specifications - HHJD63B225 Siemens Molded Case
-
Part Number:
HHJD63B225 -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
225 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
JD Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
7.5 x 11 x 4. -
Weight:
0.02
Standards
Product Description - HHJD63B225 Siemens Molded Case
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER JD FRAME WITH EXTRA HIGH BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 225A 3-POLE BREAKER (50KAIC AT 600V) (100KAIC AT 480V). SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE: 3/0AWG - 500KCM (CU) / 4/0AWG - 500KCM (AL). DIMENSIONS (W x H x D) IN: 7.5 x 11 x 4.
Original: $4,715.99
-70%$4,715.99
$1,414.80Product Information
