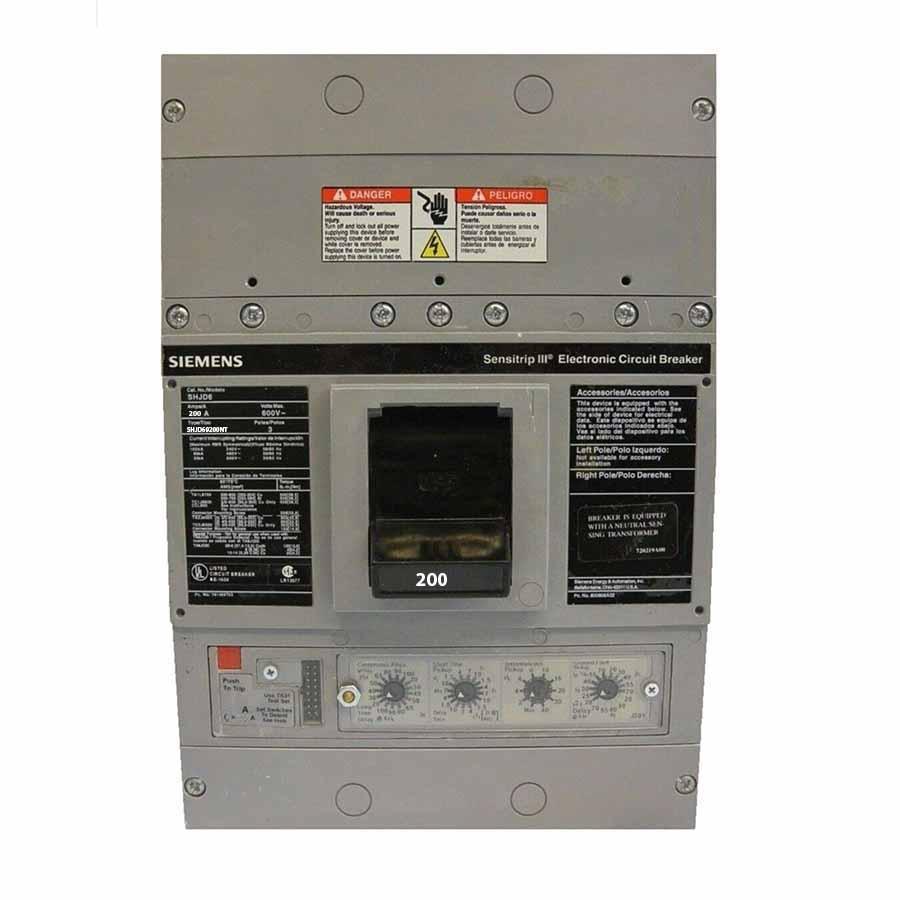

SHJD69200NT - Siemens - Molded Case Circuit Breaker
Overview
Product Specifications - SHJD69200NT - Siemens Breakers Molded Case Circuit Breakers
-
Part Number:
SHJD69200NT -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
SHJD -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
11" x 7.5" x 4"
-
Weight:
21 lbs
Standards
Product Description - SHJD69200NT - Siemens Breakers Molded Case Circuit Breakers
Siemens Low Voltage Sentron Molded Case Circuit Breaker With Electronic Trip (Etu). Standard 40 Deg C Breaker Jd Frame With High Breaking Capacity. Meets Ul 489 / Iec 60947-2 Standards. 200A 3-Pole Breaker (35Kaic At 600V) (65Kaic At 480V) Lsi. Sensitrip Funcitions. Special Features: Line And Load Side Lugs (Ta2J6500) Wire Range: 3/0Awg - 500Kcm (Cu) / 4/0Awg - 500Kcm (Al)
Documentation
Original: $3,707.99
-70%$3,707.99
$1,112.40Product Information
