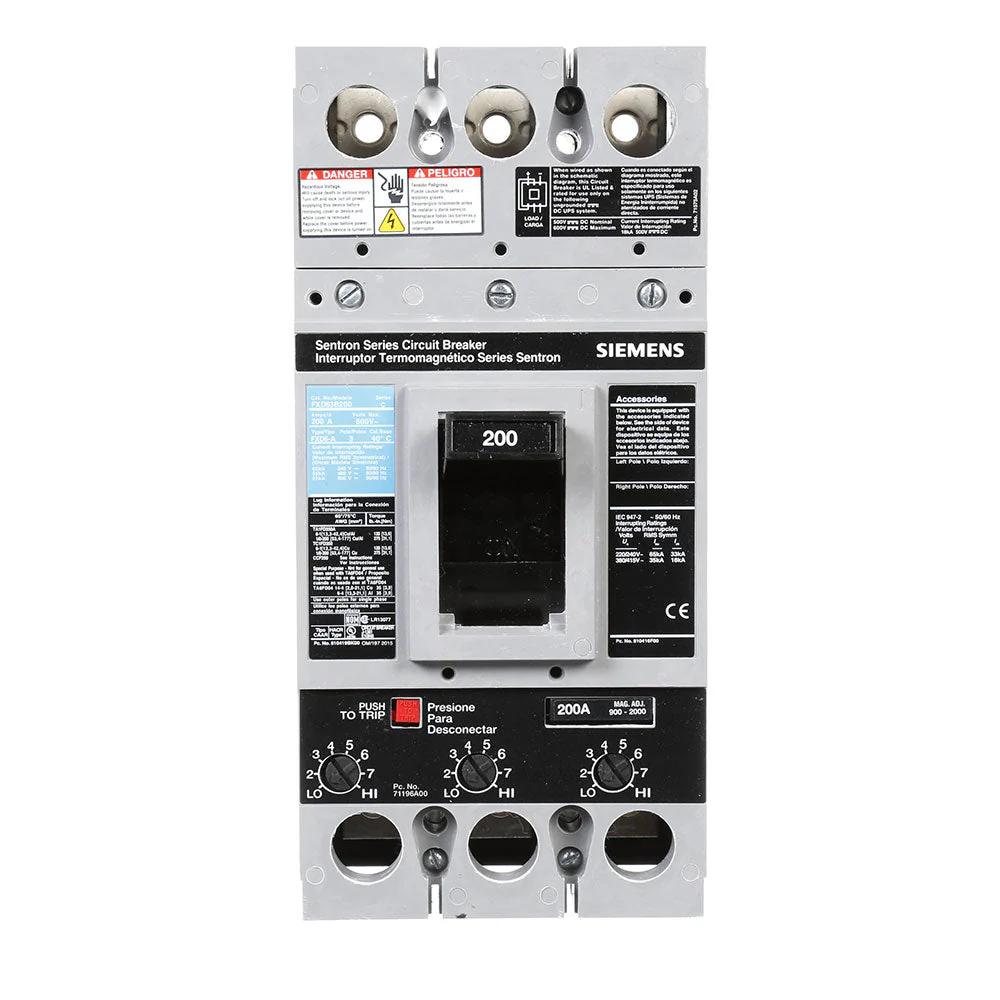

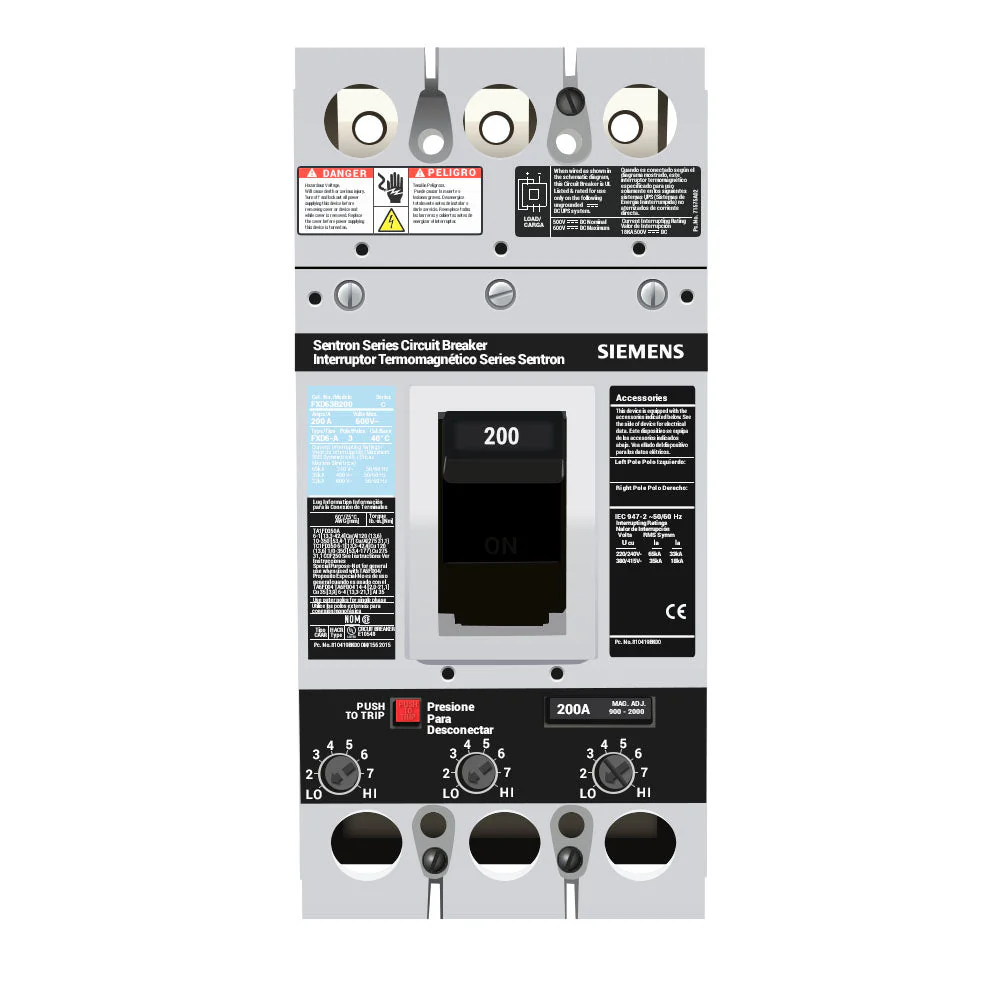

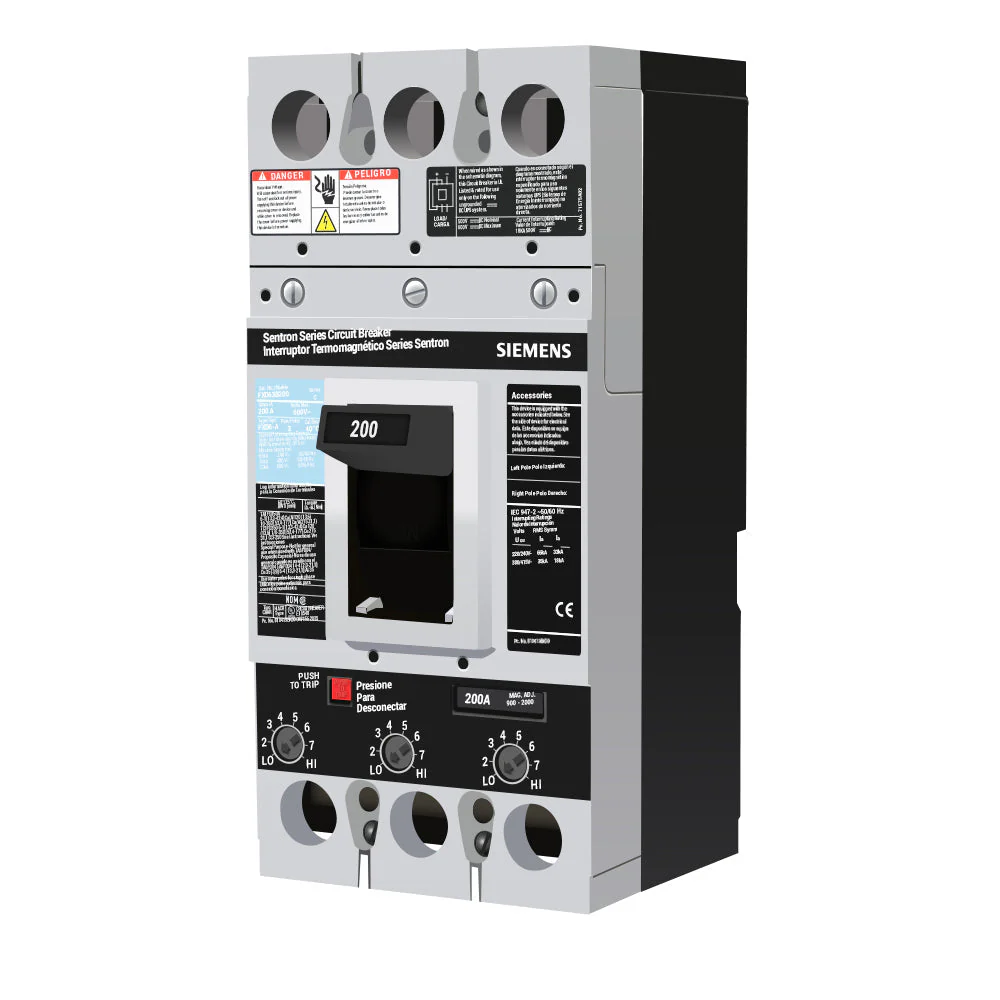

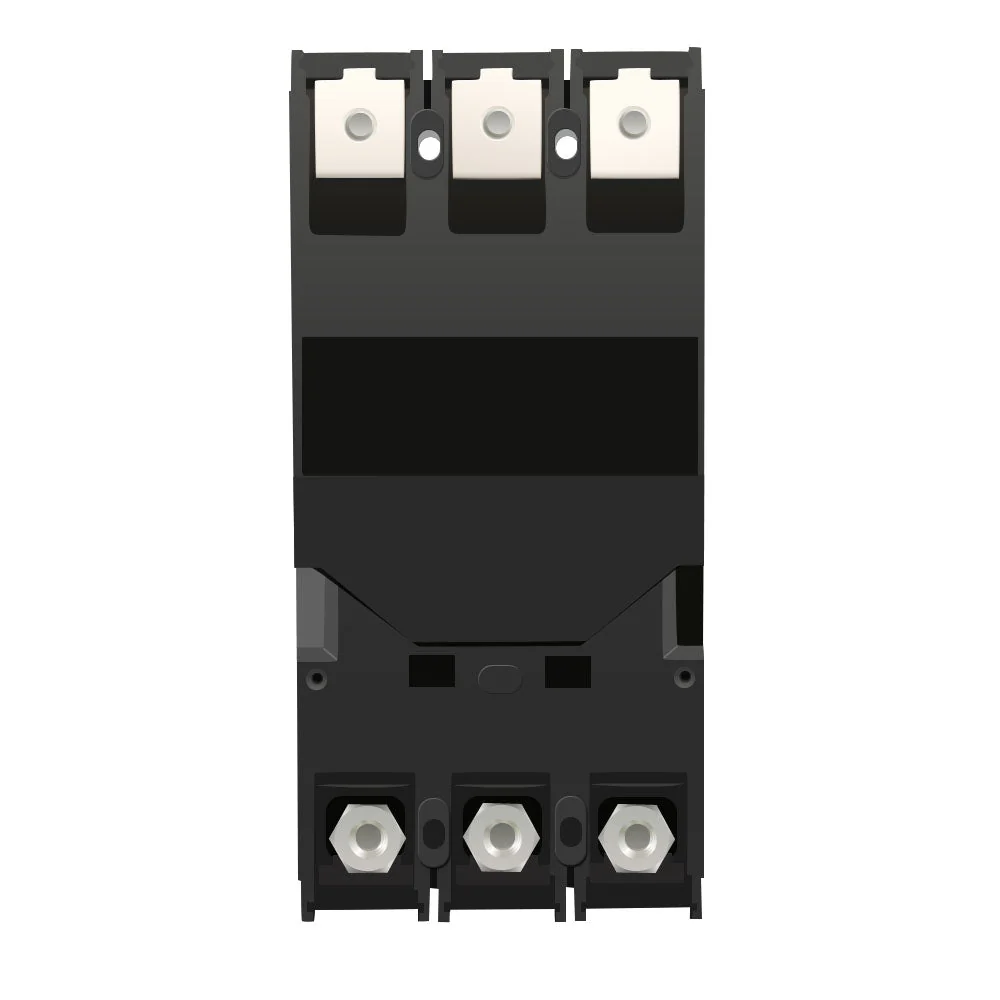

FXD63B200L - Siemens - Molded Case Circuit Breaker
Overview
Product Specifications - FXD63B200L - Siemens Breakers Molded Case Circuit Breakers
-
Part Number:
FXD63B200L -
Manufacturer:
-
Family:
Sentron Series -
Pole:
3 -
Amp
200 -
Volt:
1 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
FXD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
9.5" x 4.5" x 4"
-
Weight:
8.65 lbs
Standards
Product Description - FXD63B200L - Siemens Breakers Molded Case Circuit Breakers
Siemens, Sentron Series, type FXD, 3P, 3PH, 200A, 600V, 35kA@480V, standard interrupting capacity, 40 degree C, bolt-on, UL listed for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions. No lugs installed. thermal magnetic molded case circuit breakers.
