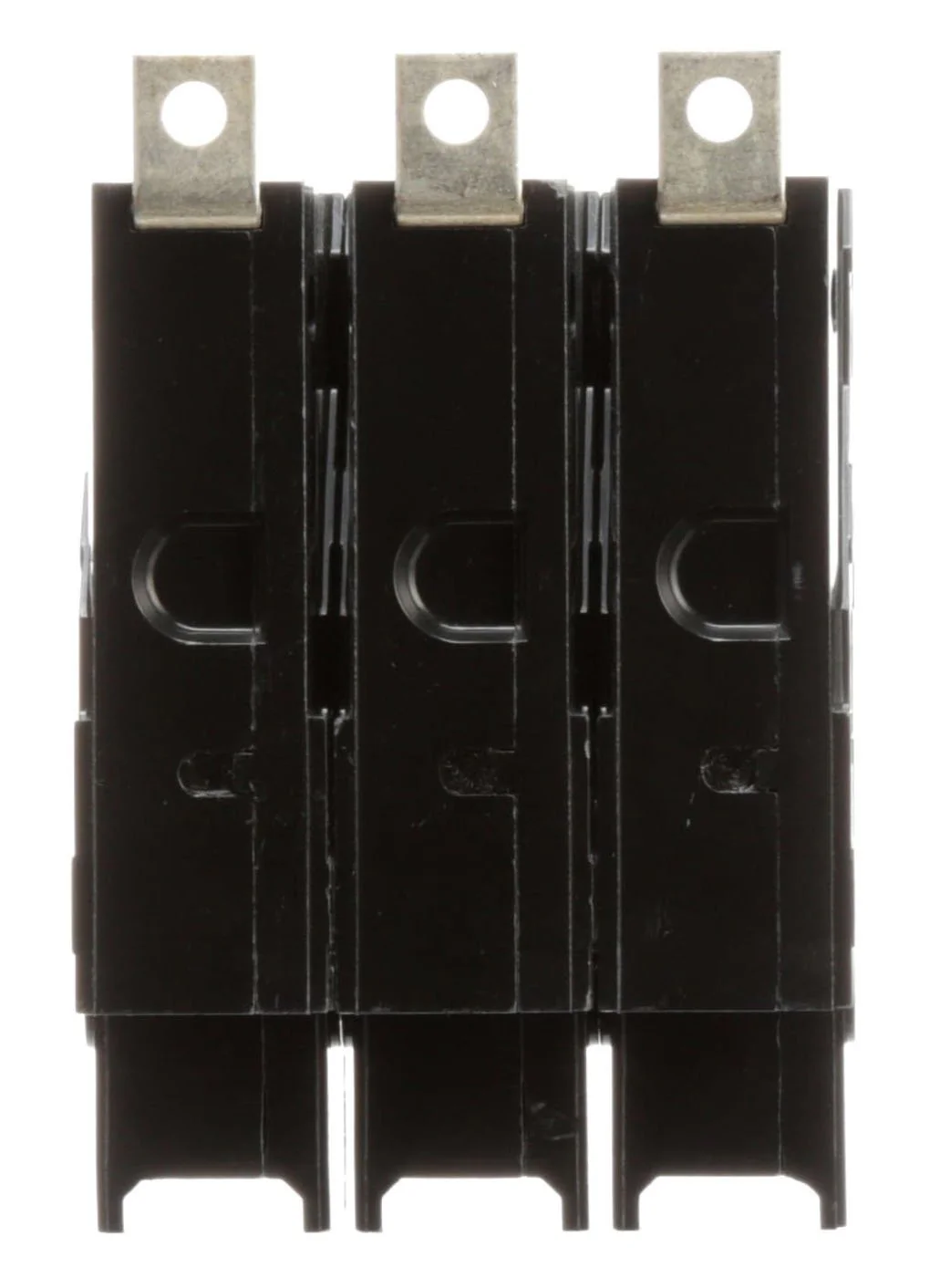

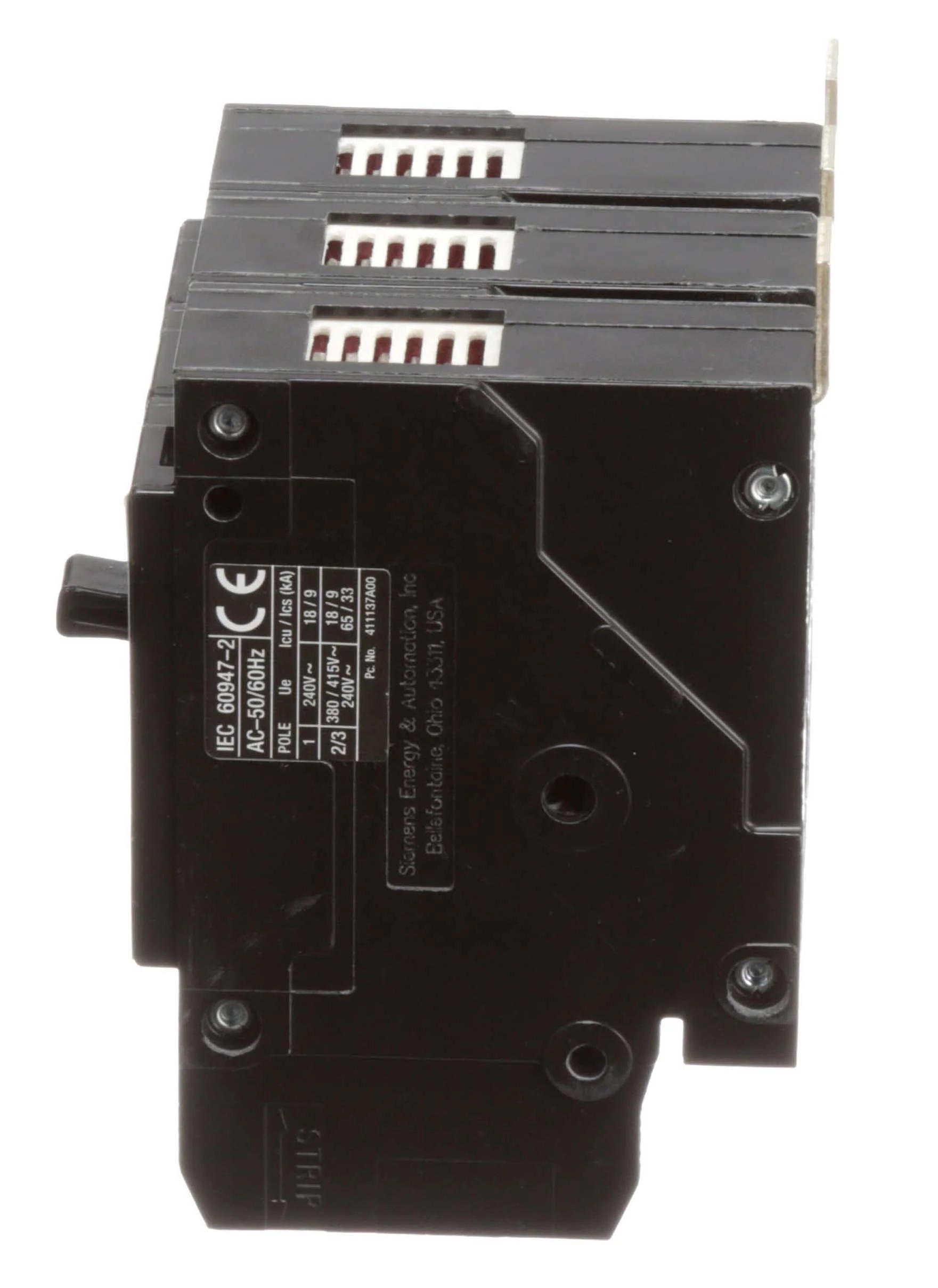

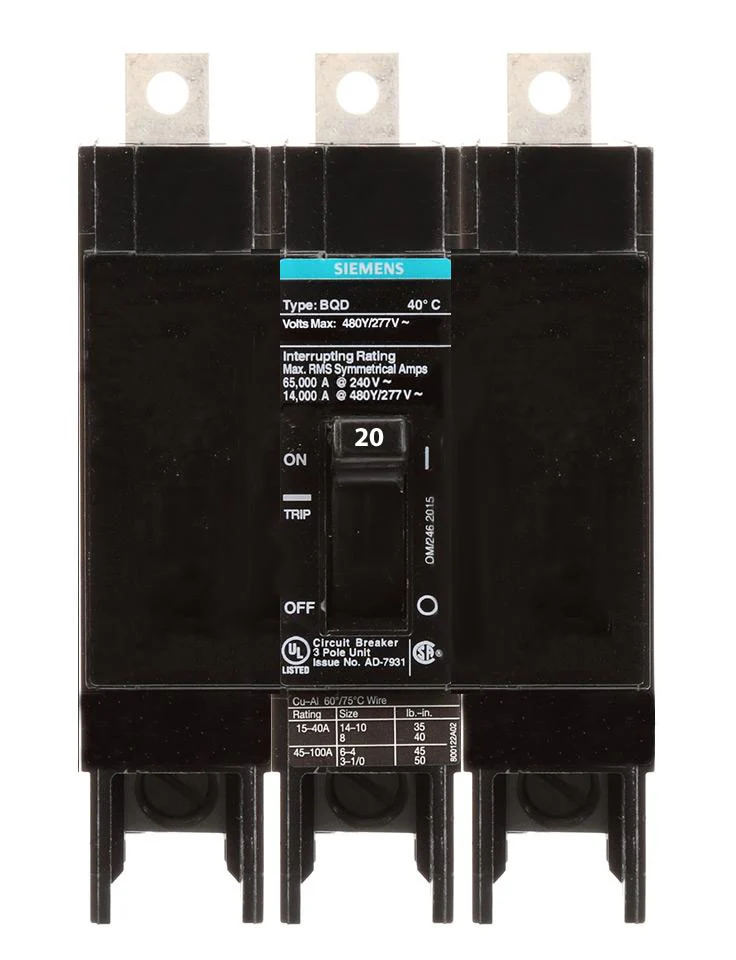

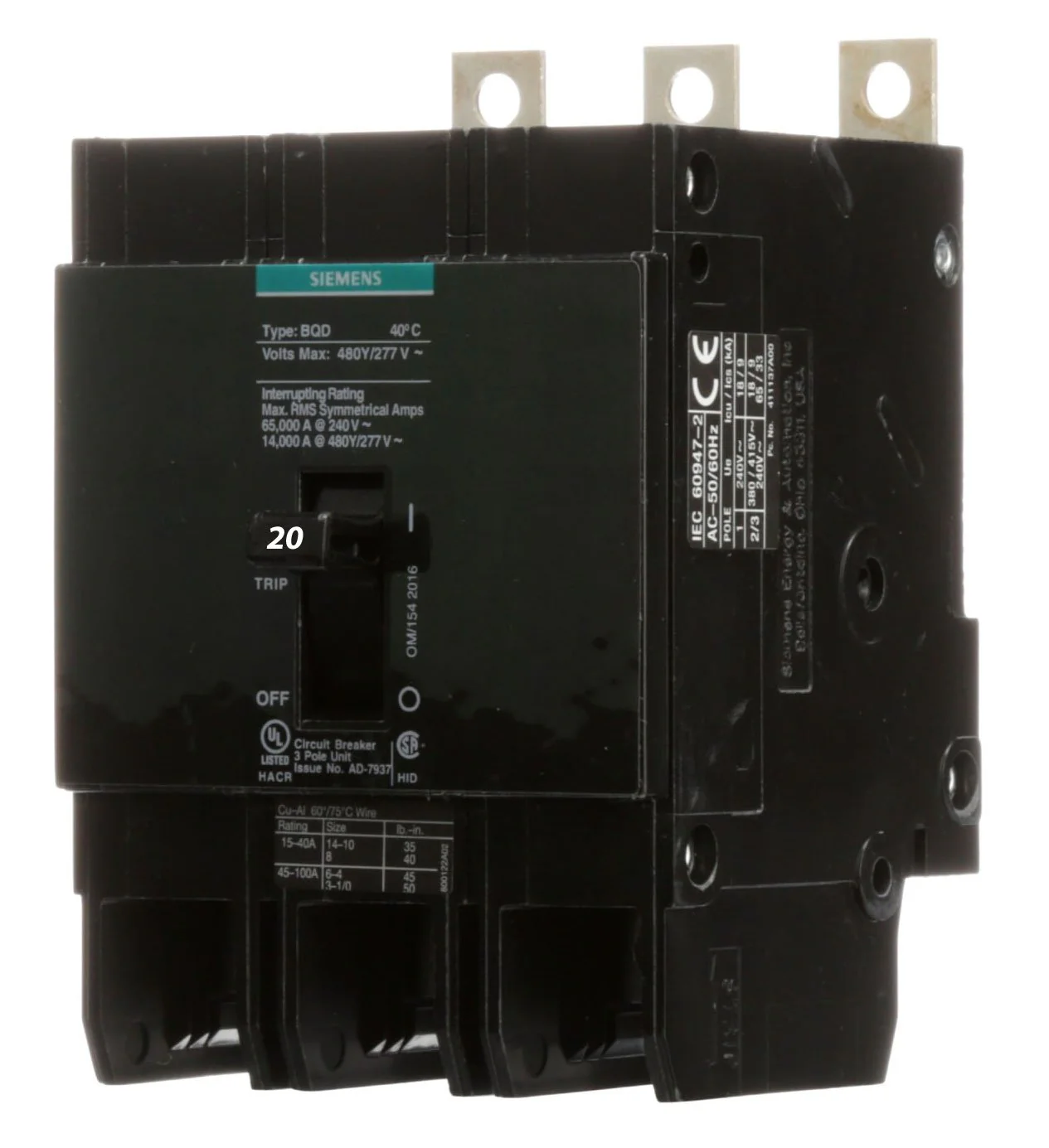

BQD320 - Siemens Bolt-On Molded Case Circuit Breaker

Siemens / ITE Bolt-On Circuit Breaker Its Compact And Easy to Install three poles BQD type molded case circuit breaker finds application in load centers it has a voltage rating of 240 Vac/480 Vac Star/277 Vac At 60 Hz and current rating of 20 amps at 40 deg c it has an interrupt current rating of 14000 amps at 480 Vac Star/277 Vac and circuit breaker is Ul listed csa certified.

Specifications:

• Product Lifecycle (PLM): PM300:Active Product
• Net Weight (lb): 1.92 lb
• Product Group: 5361
• Compliance with the substance restrictions according to RoHS directive: Since: 07/01/2006
• Authentic Siemens Product
• Voltage Rating: 480 Volt
• 3 phase
