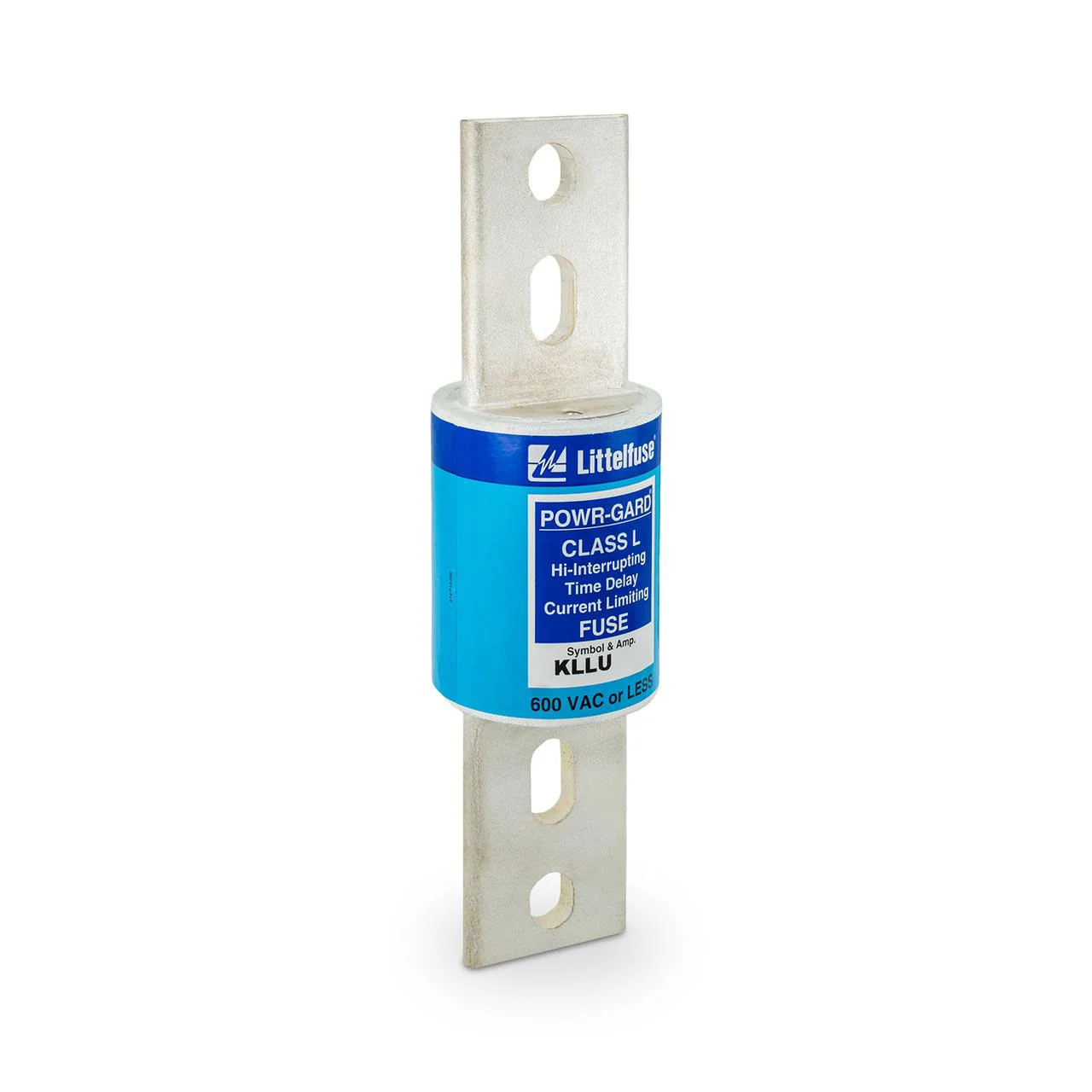

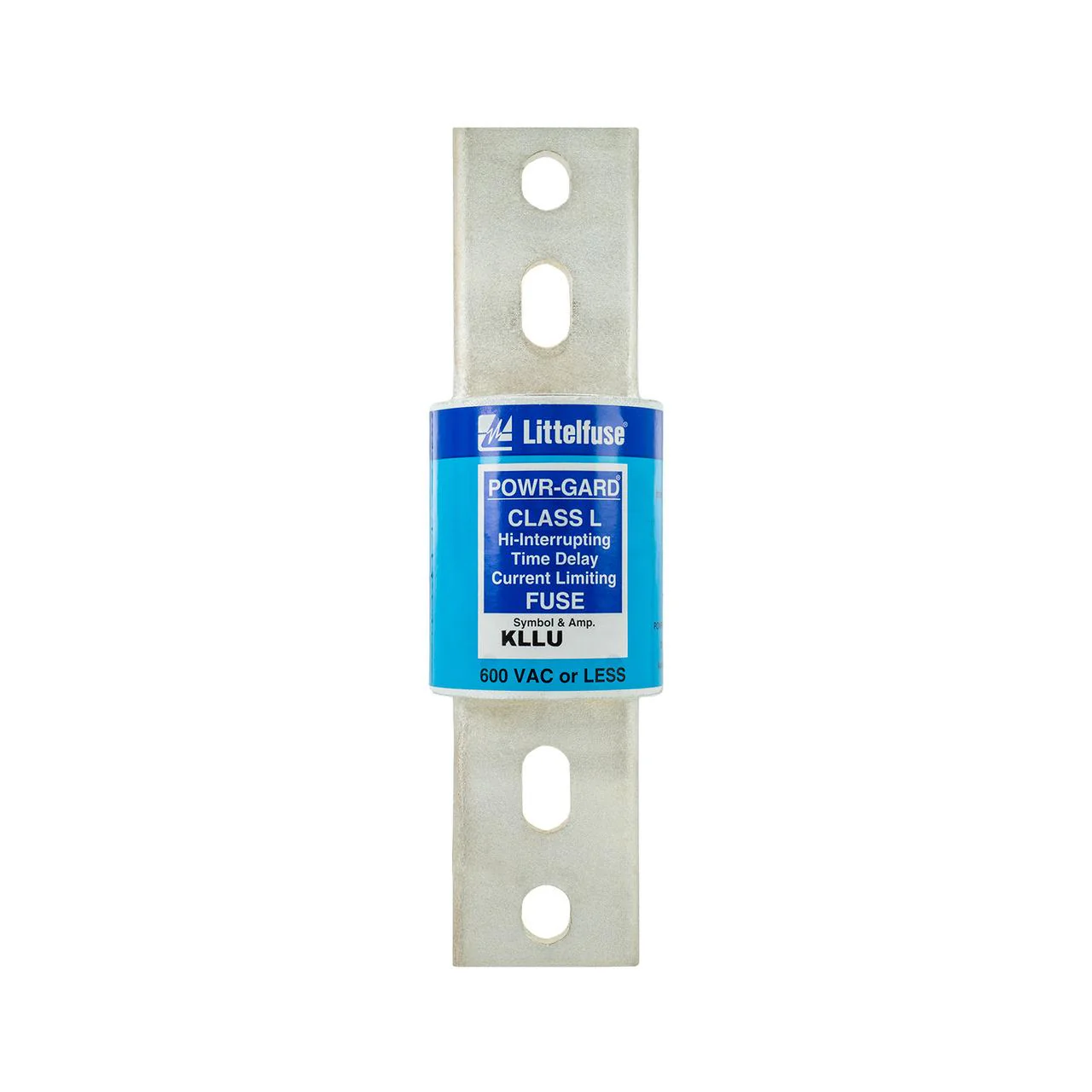

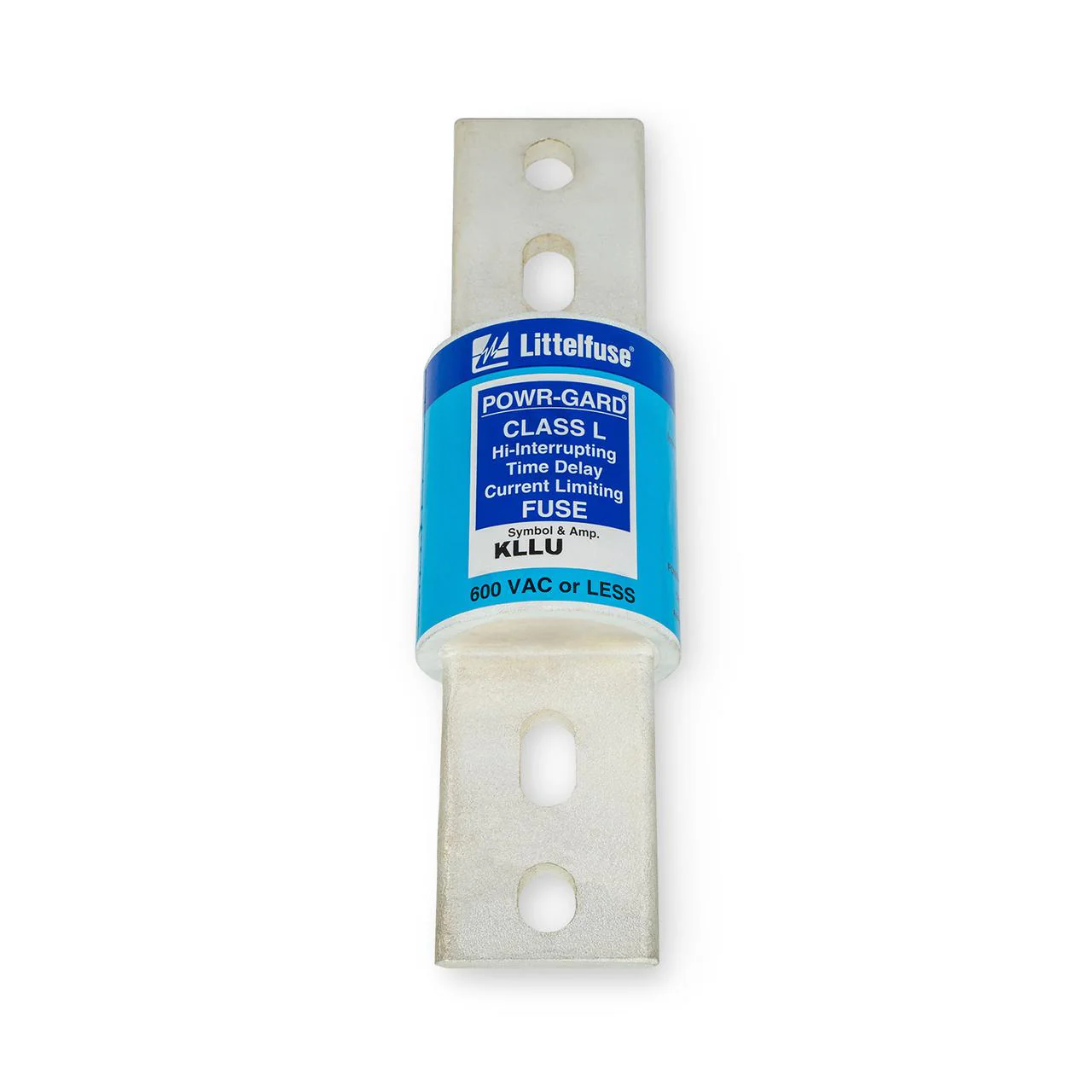

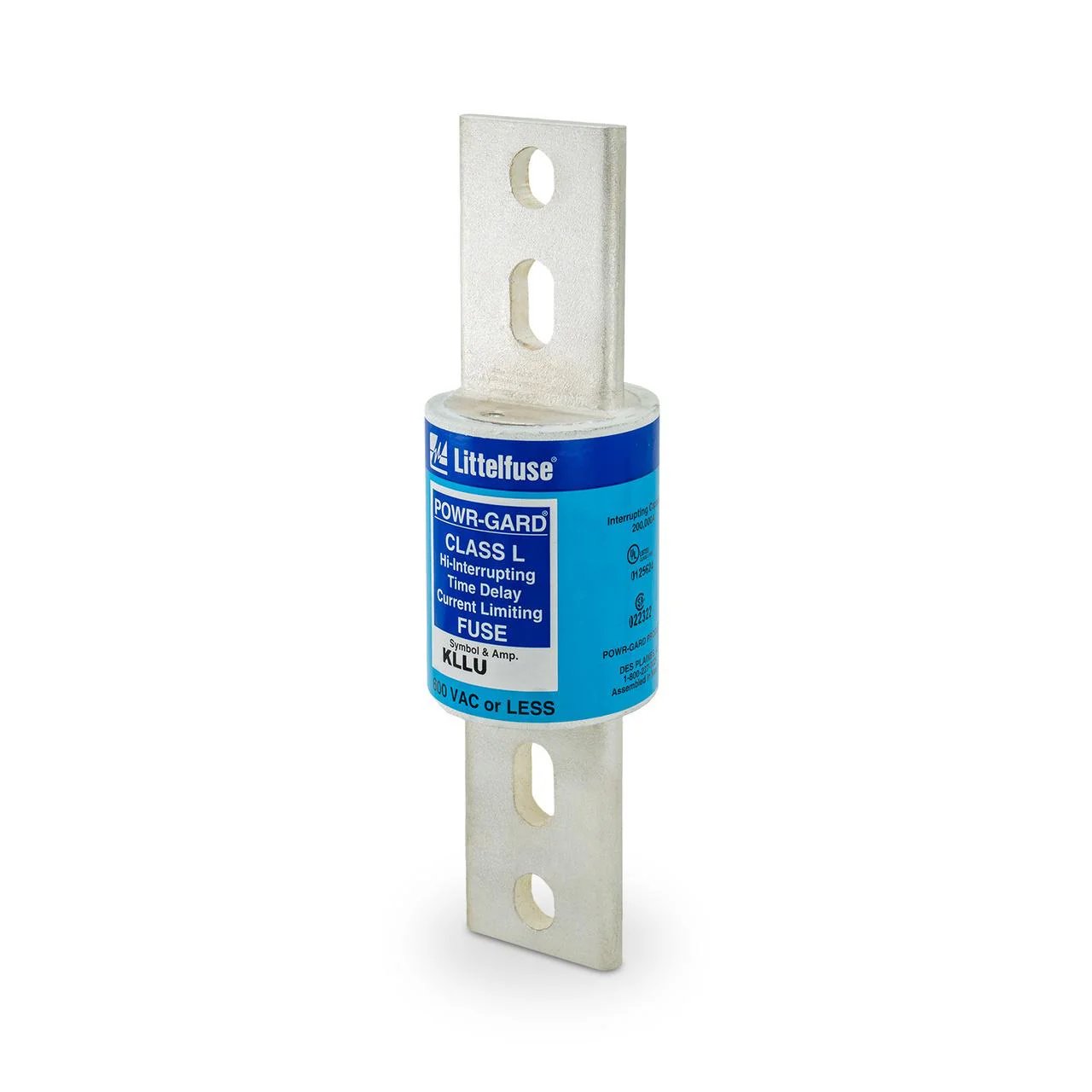

KLLU1200 - Littelfuse 1200 Amp Bolt-In Low Voltage Fuse
Overview
Product Specifications - KLLU1200 - Littelfuse Low Voltage
-
Part Number:
KLLU1200 -
Manufacturer:
-
Family:
Powr-Gard -
Amp:
1200 -
Volt:
600
-
Category:
-
Connection:
Bolt-In -
Type:
KLLU -
AIC Ratings:
200kA@600V
Dimensions
-
Dimensions (HxWxD):
2.25 x 3.75 -
Weight:
2 lbs
Standards
Product Description - KLLU1200 - Littelfuse Low Voltage
KLLU1200: Littelfuse Powr-Gard Class L fuse with time delay and current-limiting characteristics, rated for 1200A at 600Vac/300Vdc. It has a 200kA interrupting capacity at 600V and is 2" in diameter. UL and CSA certified, suitable for switchboard mains, motor control centers, and large motor branch circuits.
$193.20
Original: $643.99
-70%KLLU1200 - Littelfuse 1200 Amp Bolt-In Low Voltage Fuse—
$643.99
$193.20Product Information
