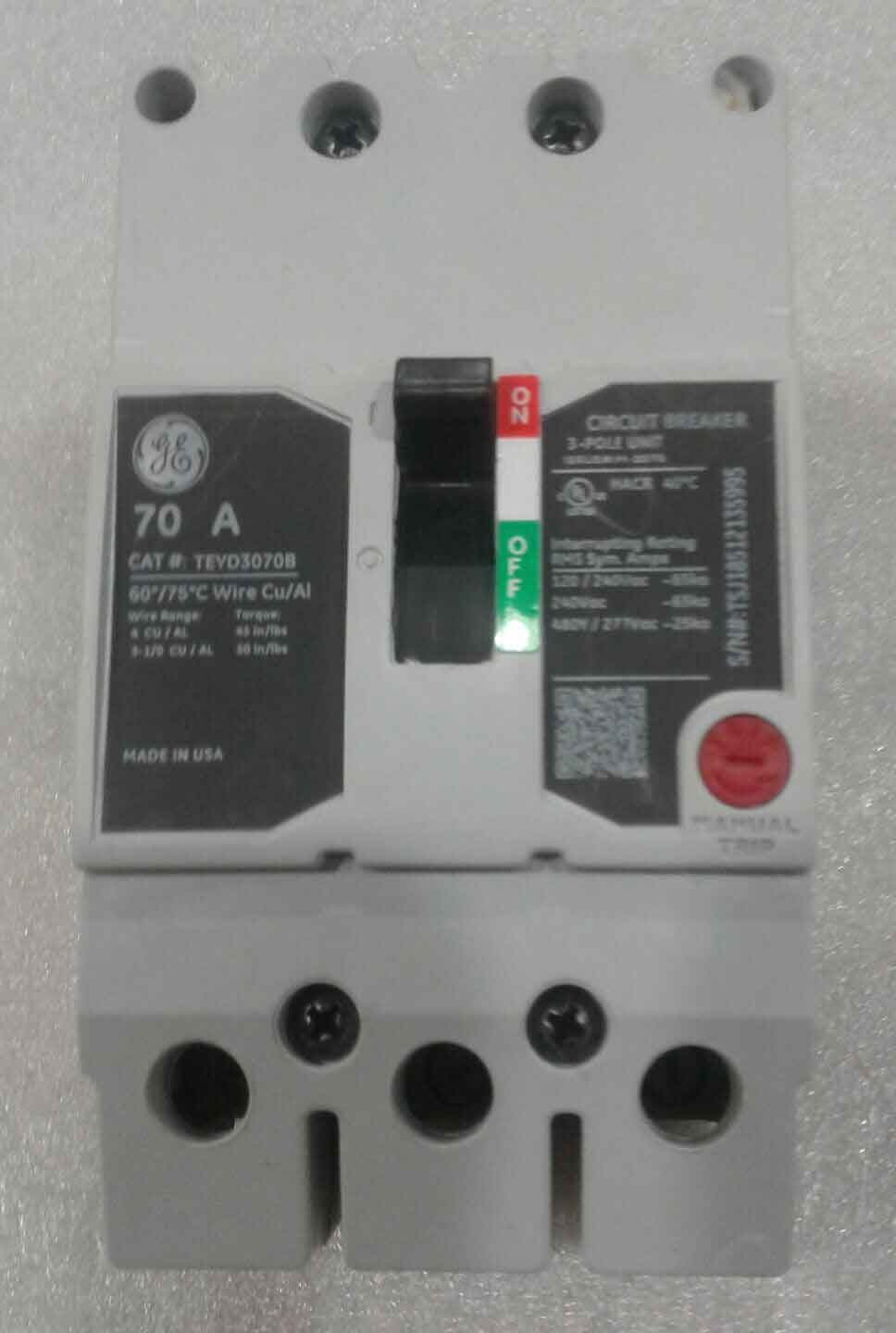

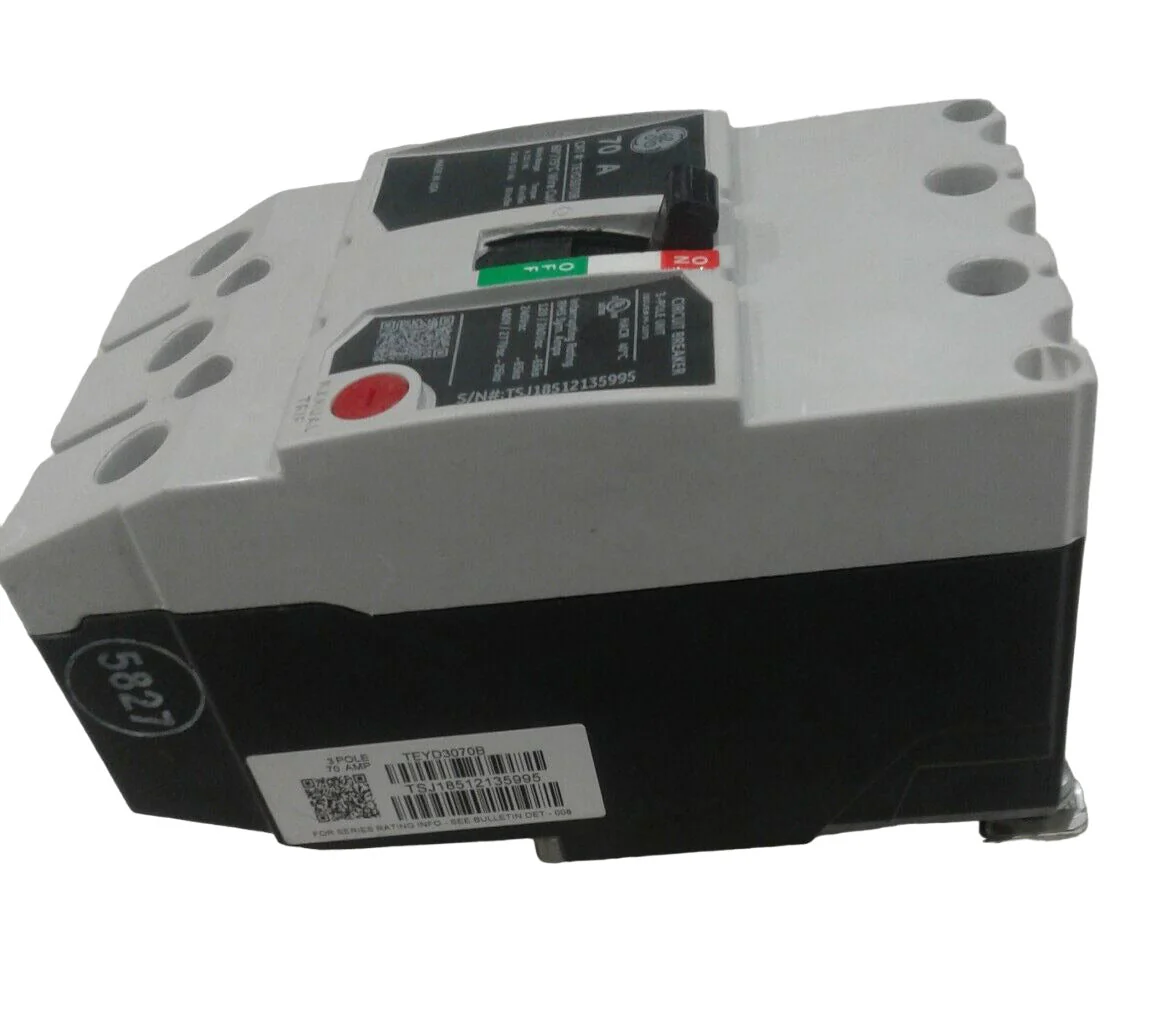

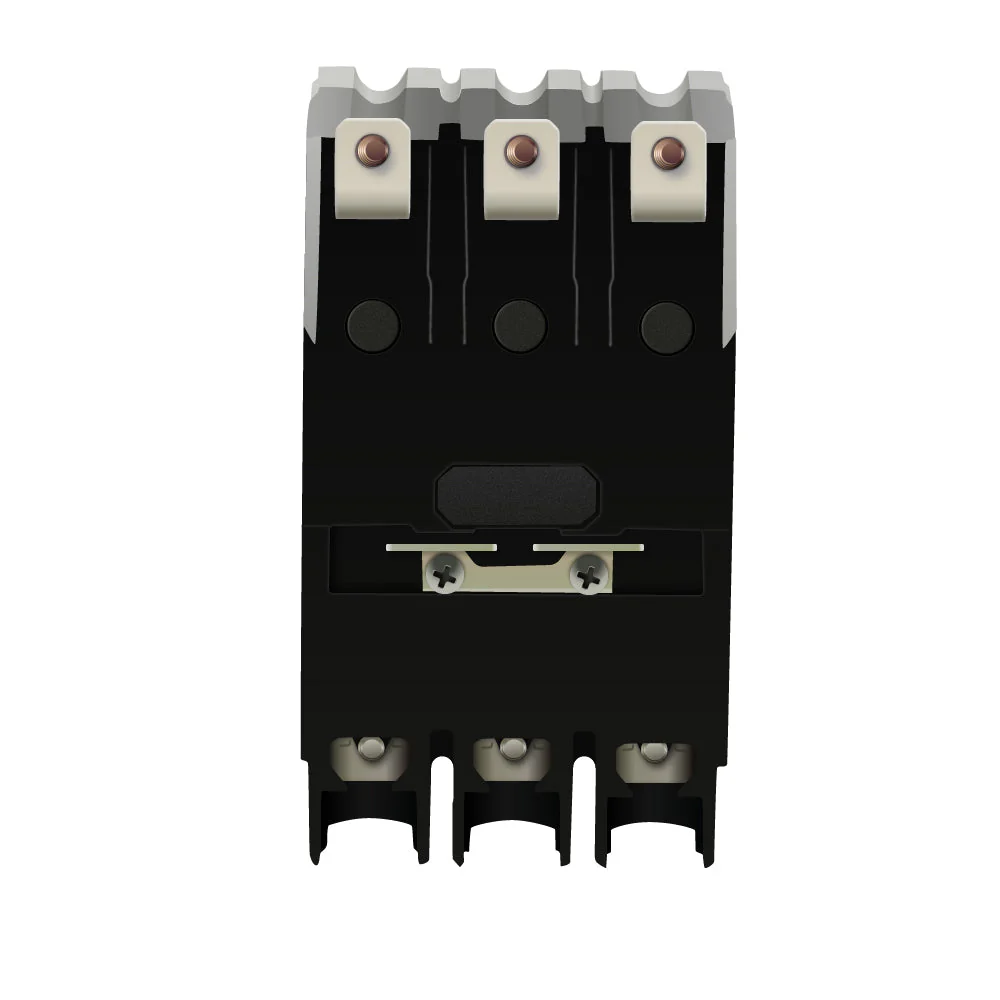

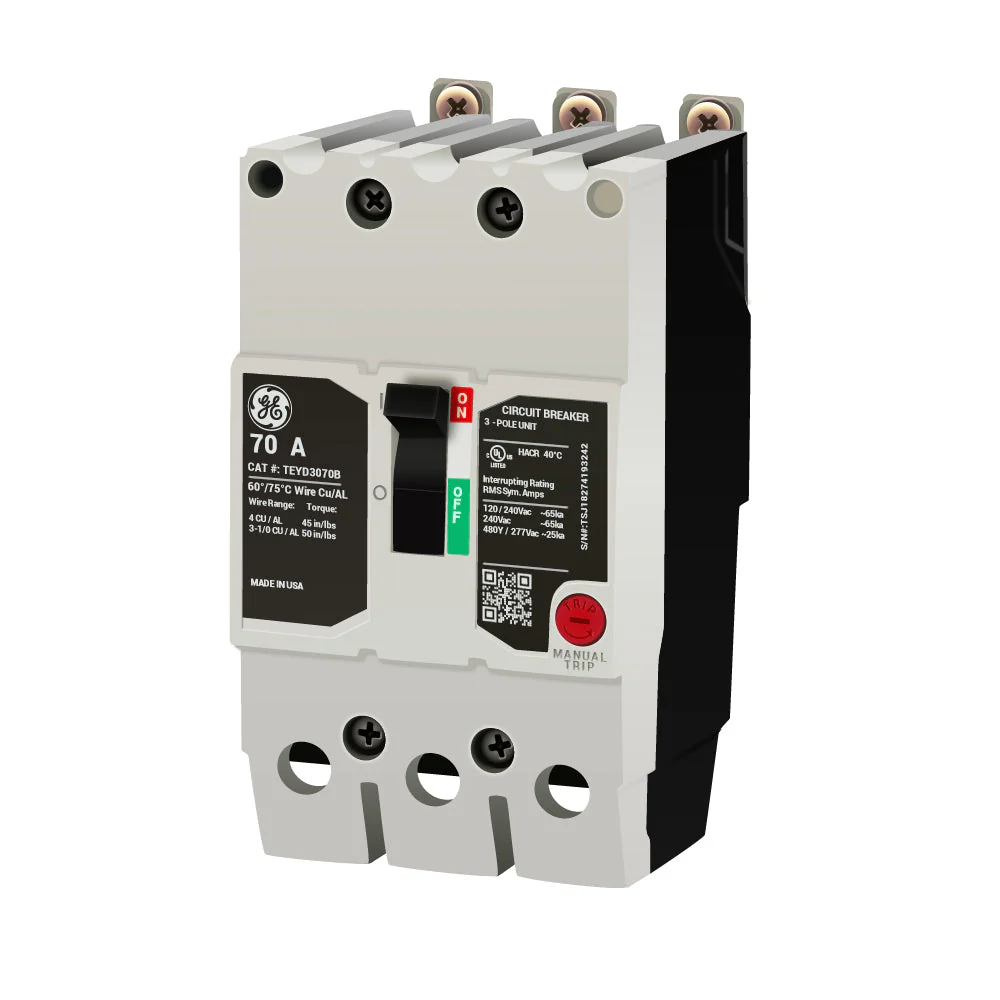

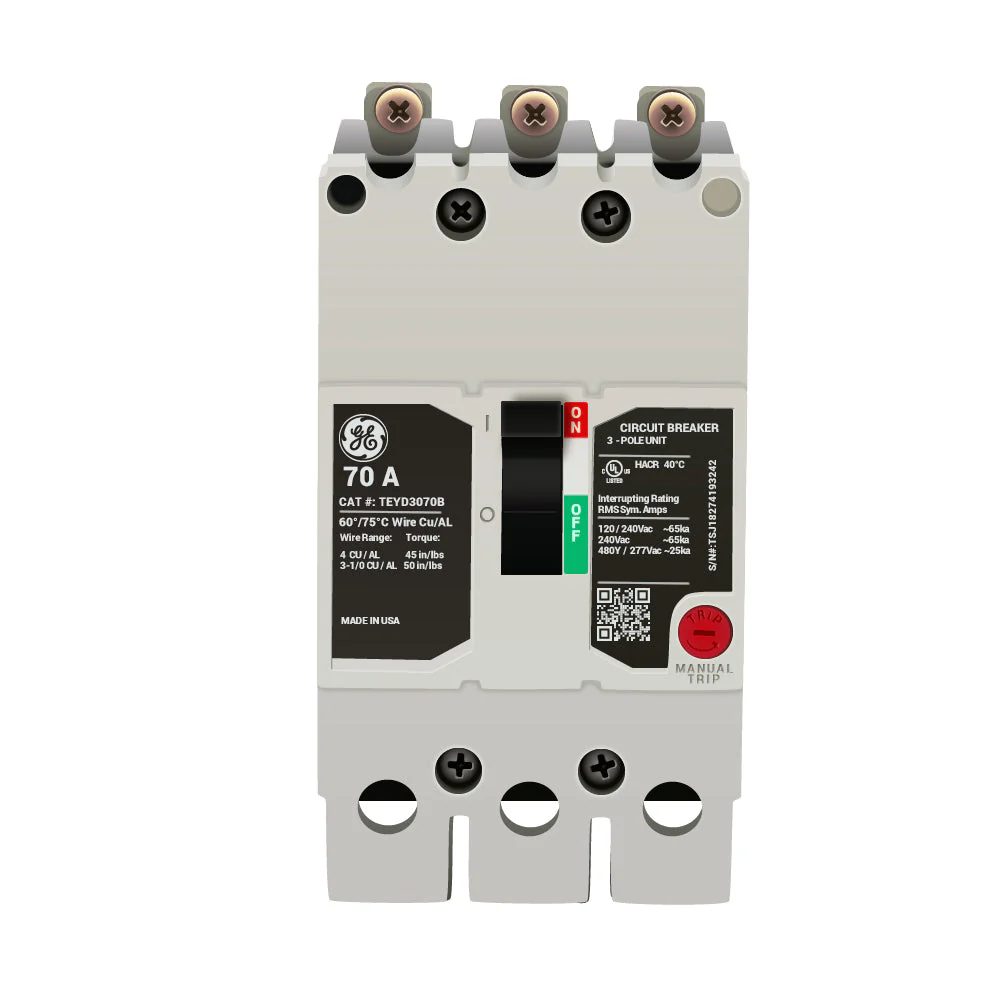

TEYD3070B - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - TEYD3070B - General Electrics Molded Case Circuit Breakers
-
Part Number:
TEYD3070B -
Manufacturer:
-
Family:
TEYD Series -
Pole:
3 -
Amp
70 -
Volt:
480 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
TEYD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@480V
Dimensions
-
Dimensions (HxWxD):
5.38 x 3 x 3.5 -
Weight:
2.5 lb
Standards
Product Description - TEYD3070B - General Electrics Molded Case Circuit Breakers
TEYD3070B Circuit Breaker: General Electric, TEYD Series, type TEYD, 3P, 3PH, 70A, 480/277V, 25kA@480V. Standard interrupting capacity, 40B0C, Bolt-On, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, load side lug terminals, Thermal Magnetic, molded case circuit breakers.
Select Condition
From $367.99
TEYD3070B - General Electrics - Molded Case Circuit Breakers—
$367.99
