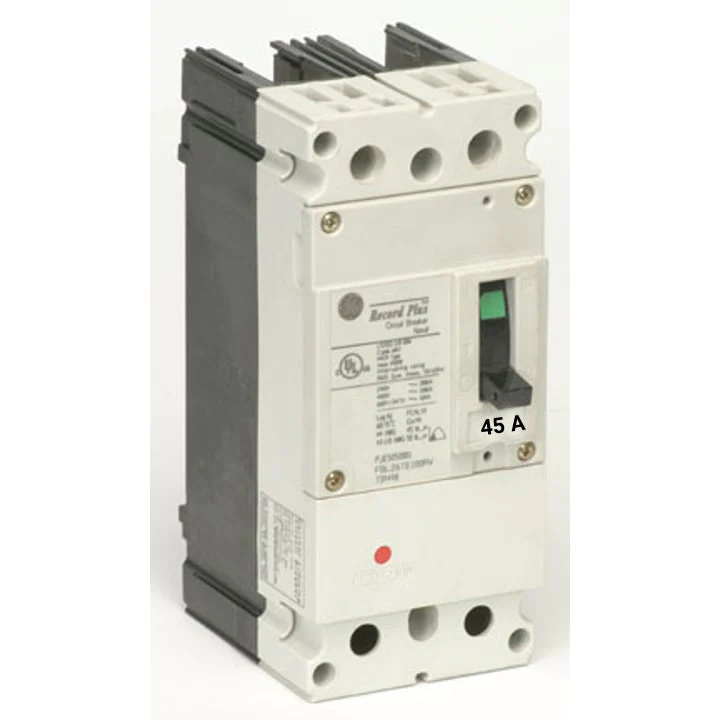

FBV26TE045RV - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - FBV26TE045RV - General Electrics Molded Case Circuit Breakers
-
Part Number:
FBV26TE045RV -
Manufacturer:
-
Family:
Record Plus -
Pole:
2 -
Amp
45 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Bolt-On -
Type:
FBV -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
150kA@480V
Dimensions
-
Dimensions (HxWxD):
4.25 x 1.25 x 6.5 -
Weight:
7 lb
Standards
Product Description - FBV26TE045RV - General Electrics Molded Case Circuit Breakers
FBV26TE045RV, another product from General Electric's Record Plus series, follows the FBV type and FB100 frame specifications. Designed for 2P (2-phase), 1PH applications, it features a 45A current capacity and a standard interrupting capacity of 150kA@480V. The Bolt-On installation, along with Long-Time (LI) and Instantaneous trip functions, load side lug terminals, panel connections, and fixed Thermal Magnetic features, makes it suitable for various electrical setups.
