FBN16TE035RV - General Electrics - Molded Case Circuit Breakers
Overview
Product Specifications - FBN16TE035RV - General Electrics Molded Case Circuit Breakers
-
Part Number:
FBN16TE035RV -
Manufacturer:
-
Family:
Record Plus -
Pole:
1 -
Amp
35 -
Volt:
600 -
Phase:
1
-
Category:
-
Connection:
Bolt-On -
Type:
FBN -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
8.5 x 3.25 x 4.25 -
Weight:
7 lb
Standards
Product Description - FBN16TE035RV - General Electrics Molded Case Circuit Breakers

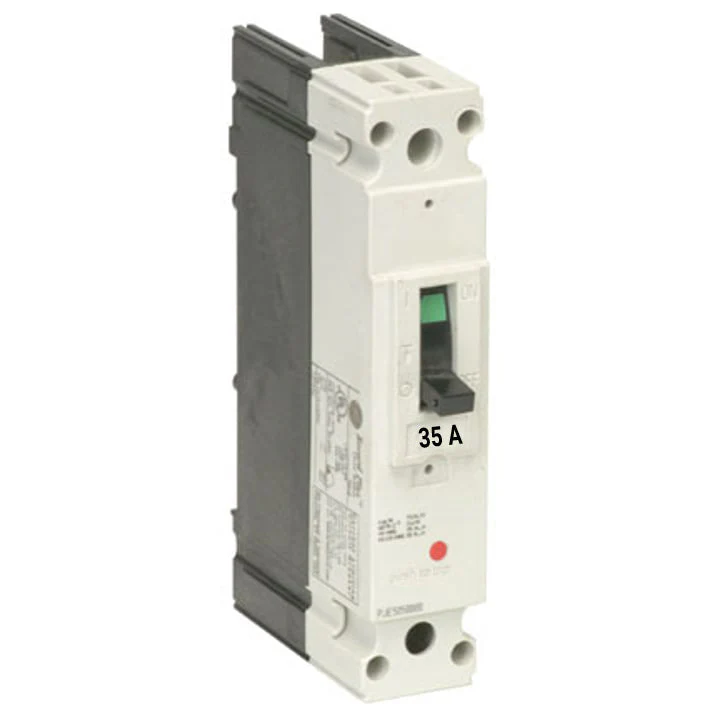

FBN16TE035RV, another product from General Electric, is a Record Plus type FBN circuit breaker with a FB100 frame, 1P (1-phase), 35A, 600V, and a high interrupting capacity at 65kA@480V. Similar to the previous model, it includes LI - Long-Time and Instantaneous trip functions, load side lug terminals, panel connections, and fixed Thermal Magnetic features.
