TG4321R - General Electrics - Disconnect
Overview
Product Specifications - TG4321R - General Electrics Disconnect
-
Part Number:
TG4321R -
Manufacturer:
-
Family:
Spec-Setter -
Pole:
3 -
Amp
30 -
Volt:
240 -
Phase:
3
-
Category:
-
Type:
TG -
AIC Ratings:
100kA@240V
Dimensions
-
Dimensions (HxWxD):
6.25 x 6.84 x 10.12 -
Weight:
6 lb
Standards
Product Description - TG4321R - General Electrics Disconnect

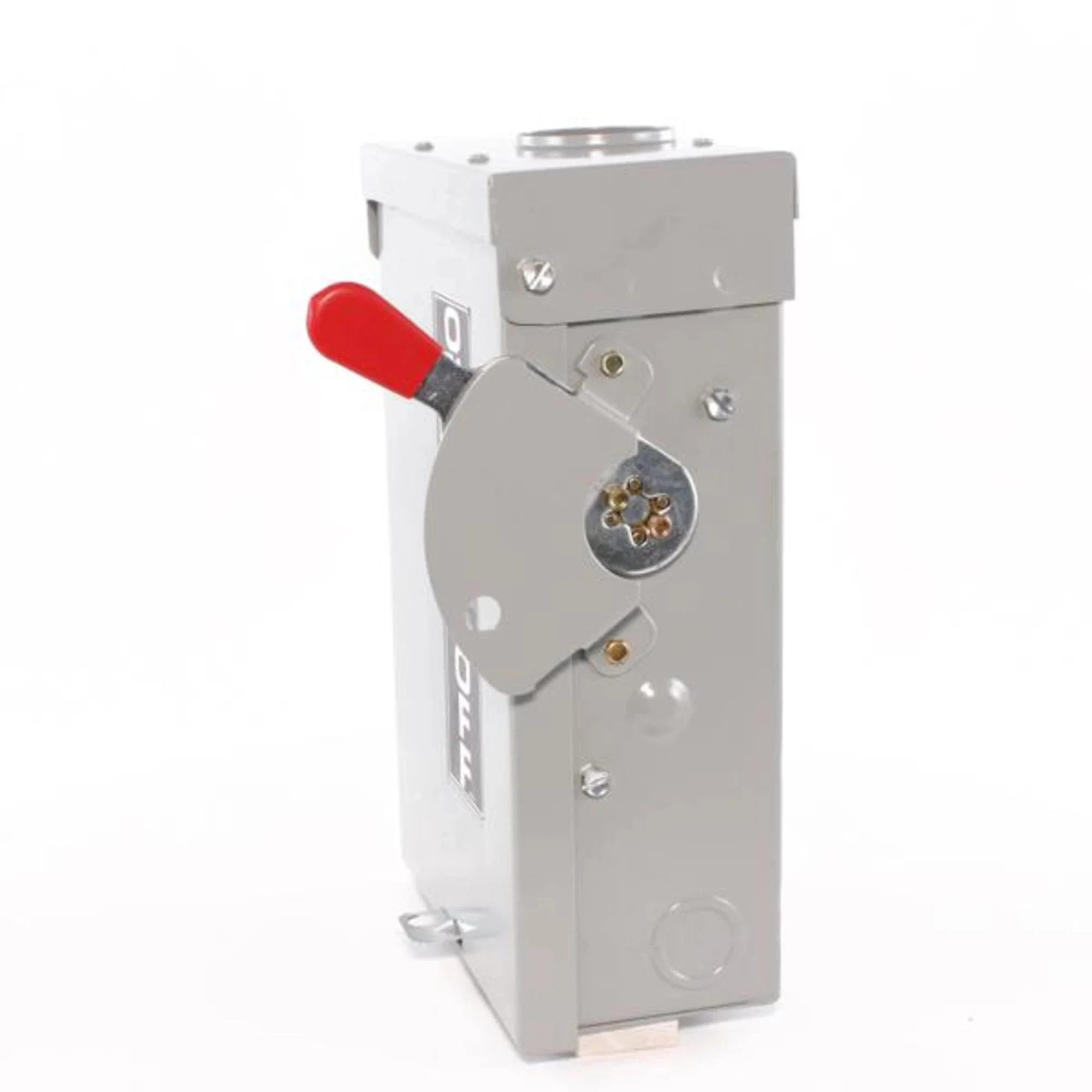

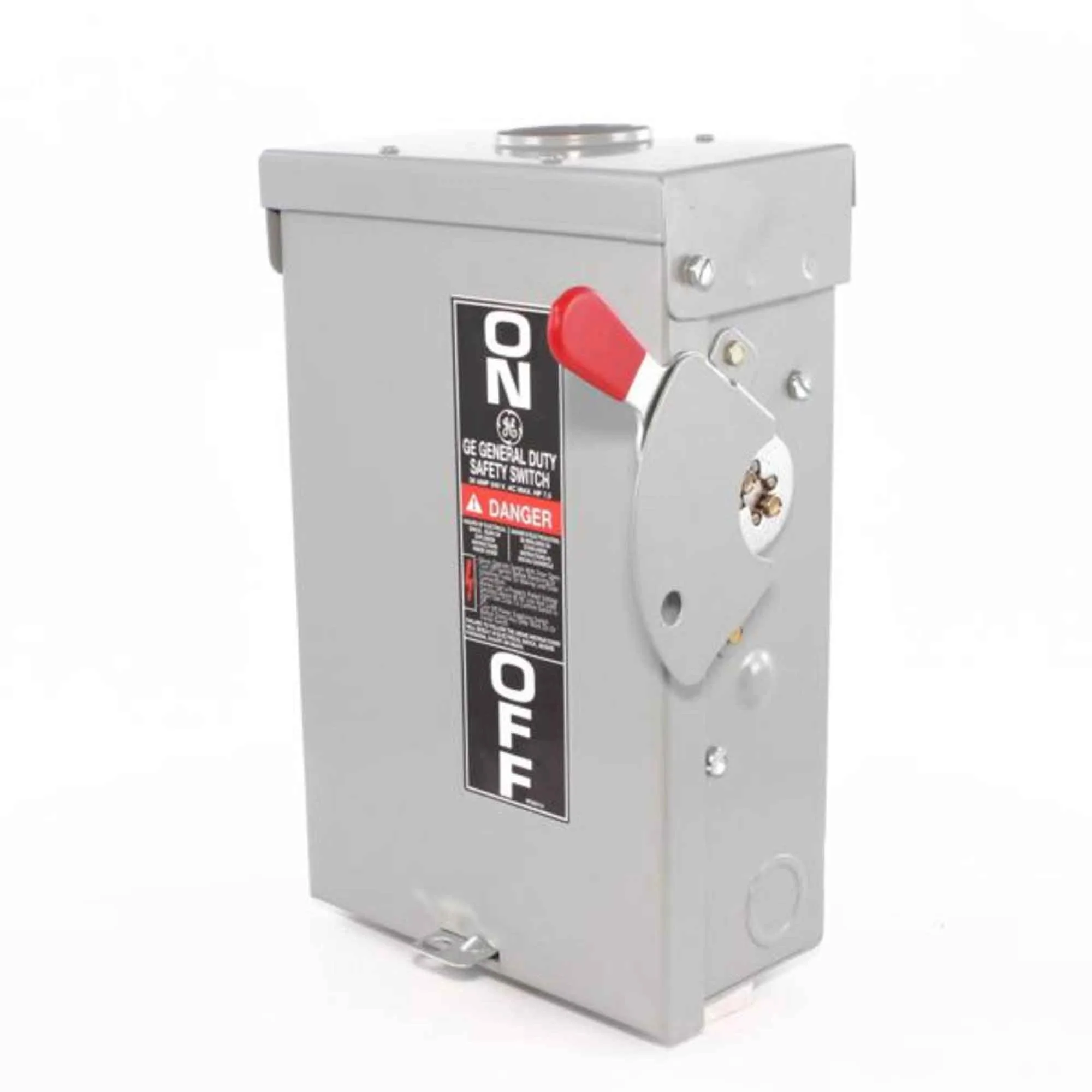

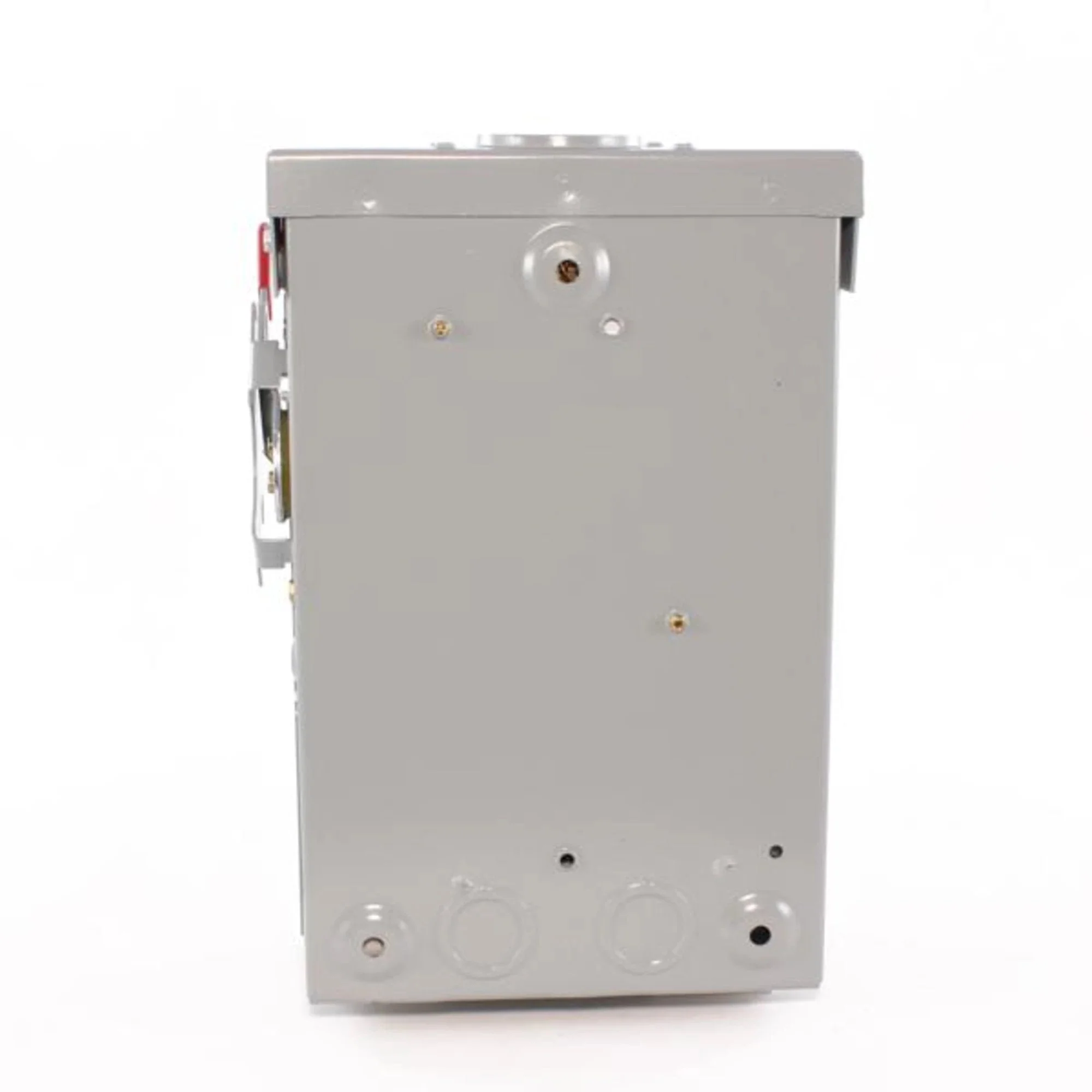

TG4321R by General Electric is a Spec-Setter Type TG disconnect safety switch suitable for outdoor use. With a UL listing, this 3PH, 3P, 4-wire switch is designed for 240V systems. It has a 30A rating and a 100kA@240V short-circuit current rating. The NEMA 3R classification ensures its reliability in outdoor environments. This fusible type switch accepts class R fuses and features a single style.
