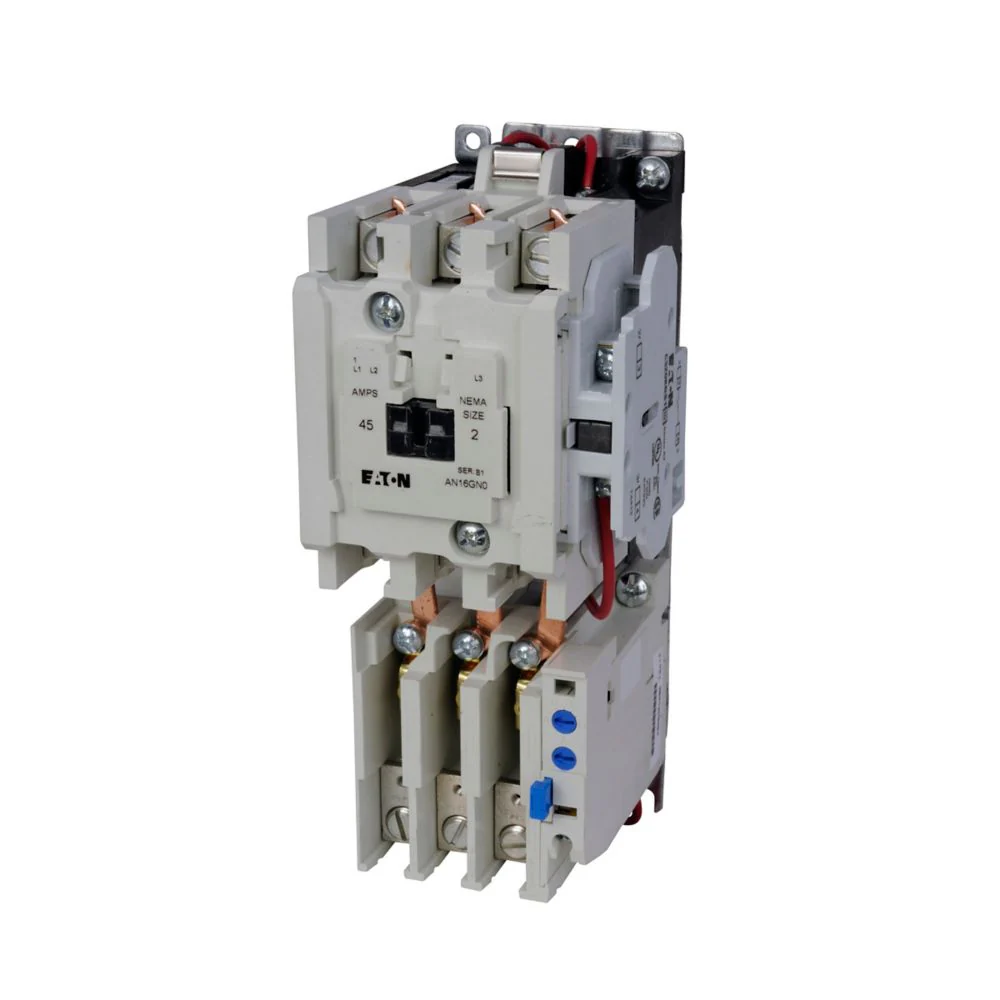

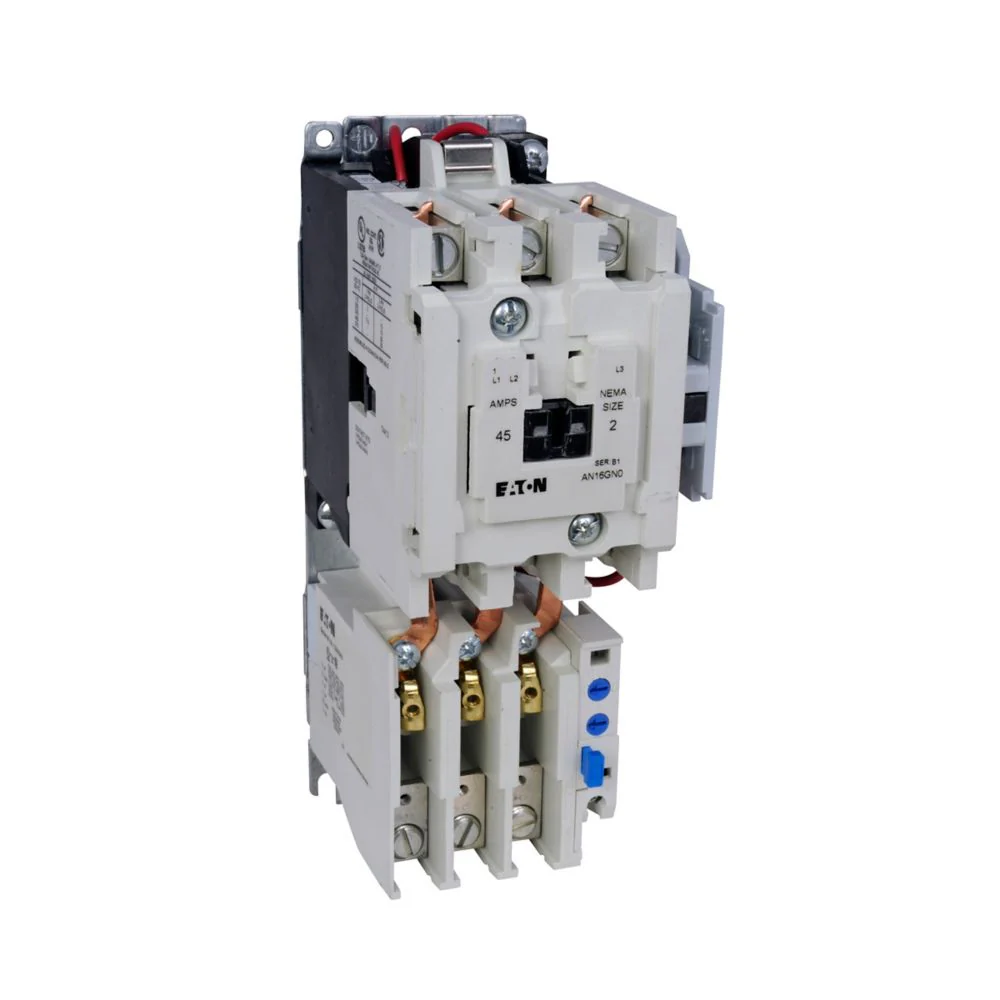

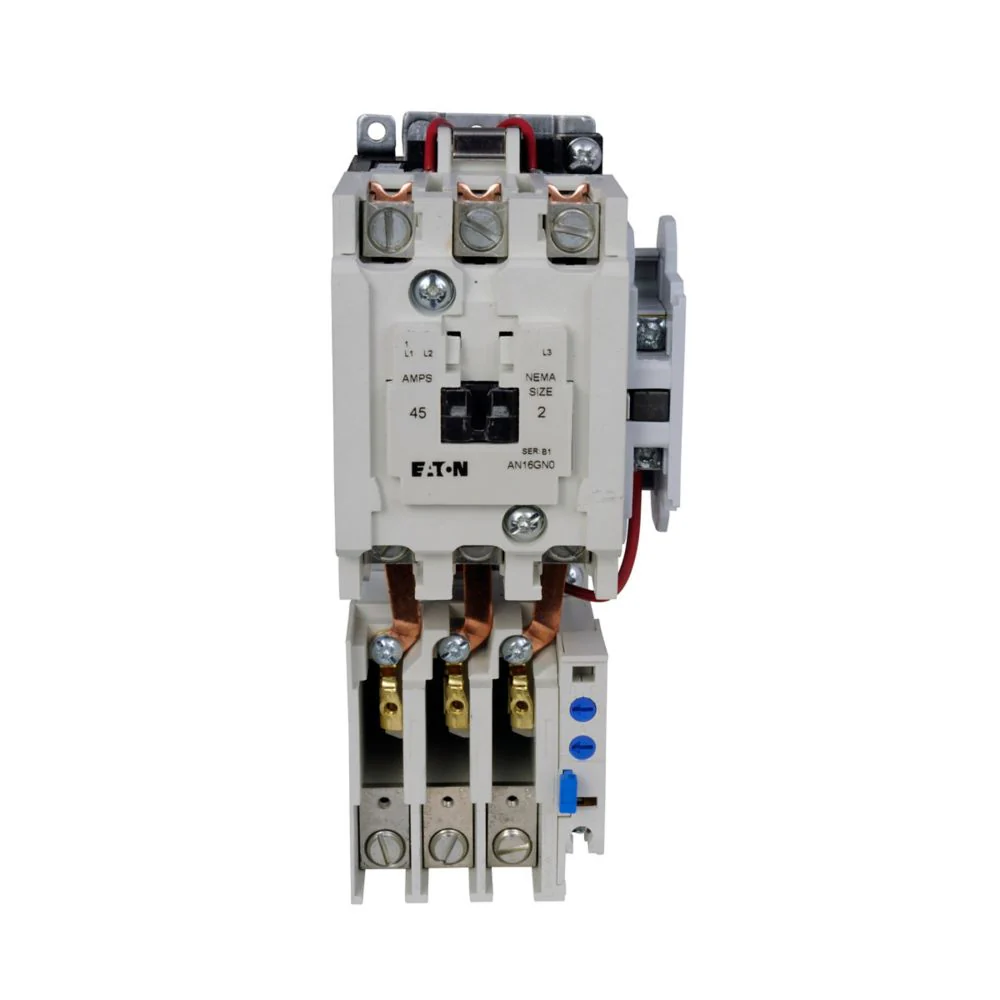

AN16GN0EB - Eaton - Starter
Overview
Product Specifications - AN16GN0EB - Eaton Cutler-Hammer Starter
-
Part Number:
AN16GN0EB -
Manufacturer:
-
Amp:
45A -
Phase:
3 -
Category:
-
HP Rating Max:
3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V
-
Special Features:
Starter w/C306 bi-metal OLR
Dimensions
-
Dimensions (HxWxD):
4.94 in x 3.31 in x 4.38 in -
Weight:
3.3 lb
Standards
Product Description - AN16GN0EB - Eaton Cutler-Hammer Starter
Eaton Freedom NEMA motor control starter, Non-Reversing Reset Overload Relay Starter, 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V maximum horsepower, 208V/60 Hz coil voltage, 45A, Three-pole, Size 2
Select Condition
From $155.40
Original: $517.99
-70%AN16GN0EB - Eaton - Starter—
$517.99
$155.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - AN16GN0EB - Eaton Cutler-Hammer Starter
-
Part Number:
AN16GN0EB -
Manufacturer:
-
Amp:
45A -
Phase:
3 -
Category:
-
HP Rating Max:
3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V
-
Special Features:
Starter w/C306 bi-metal OLR
Dimensions
-
Dimensions (HxWxD):
4.94 in x 3.31 in x 4.38 in -
Weight:
3.3 lb
Standards
Product Description - AN16GN0EB - Eaton Cutler-Hammer Starter
Eaton Freedom NEMA motor control starter, Non-Reversing Reset Overload Relay Starter, 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V maximum horsepower, 208V/60 Hz coil voltage, 45A, Three-pole, Size 2
