LGU360033W - Eaton - Molded Case Circuit Breakers
Overview
Product Specifications - LGU360033W - Eaton Molded Case Circuit Breakers
-
Part Number:
LGU360033W -
Manufacturer:
-
Family:
Series G -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
LGU -
Functions:
LS - Long-Time and Short-Time -
Protection:
Solid State -
AIC Ratings:
150kA@480V
Dimensions
-
Dimensions (HxWxD):
5.48" x 5.48" x 5.48" -
Weight:
15.3 lb
Standards
Product Description - LGU360033W - Eaton Molded Case Circuit Breakers

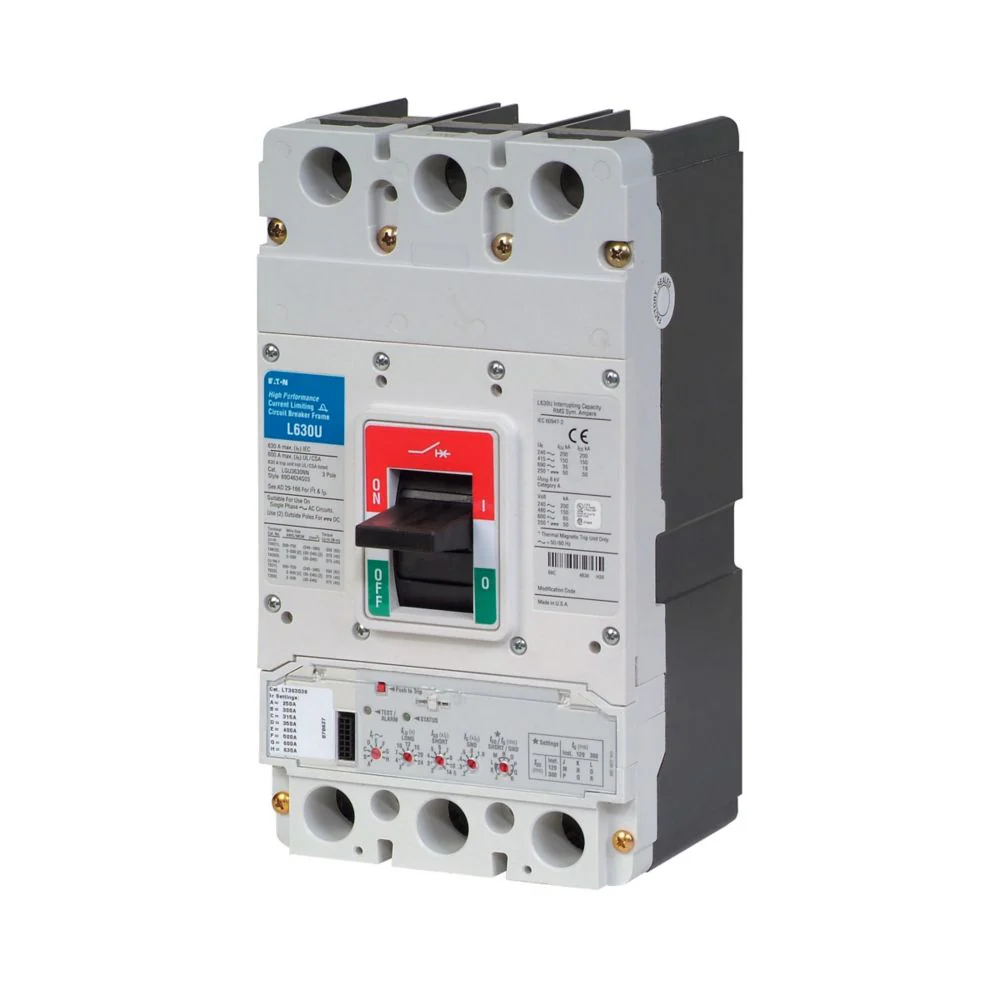

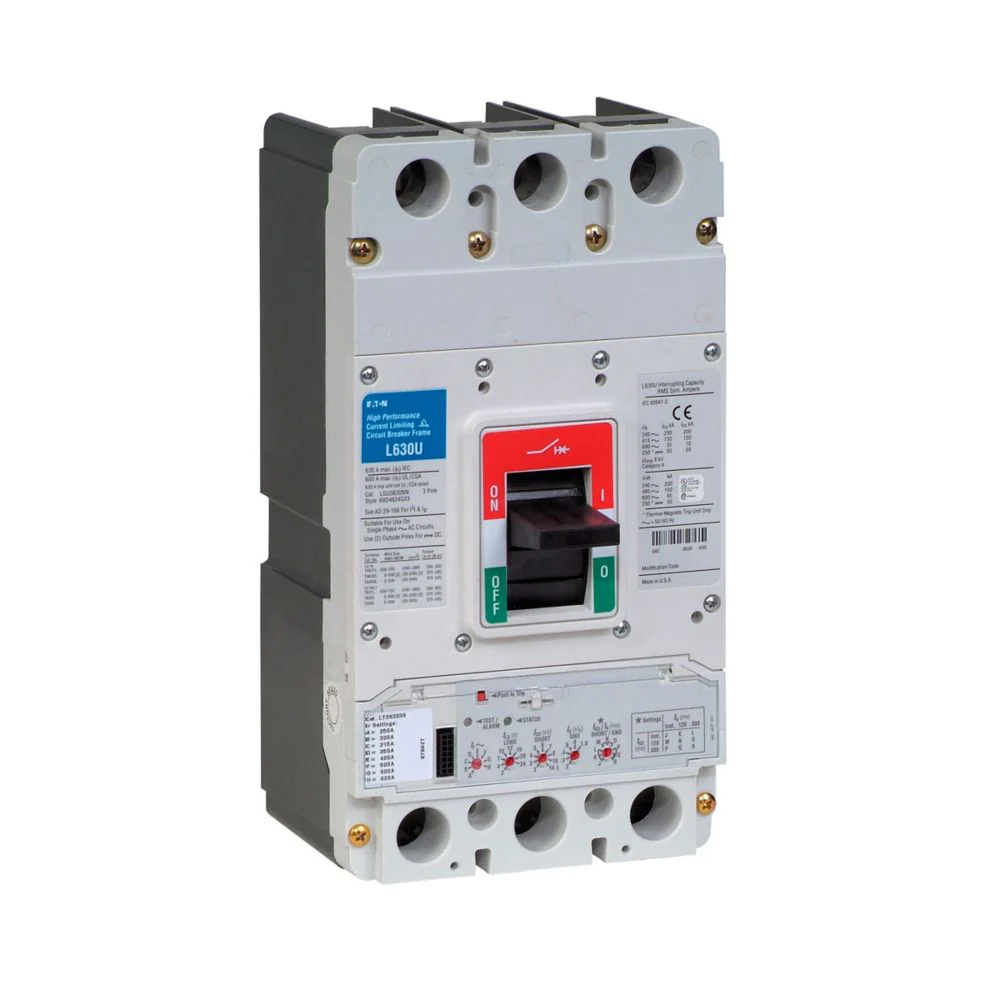

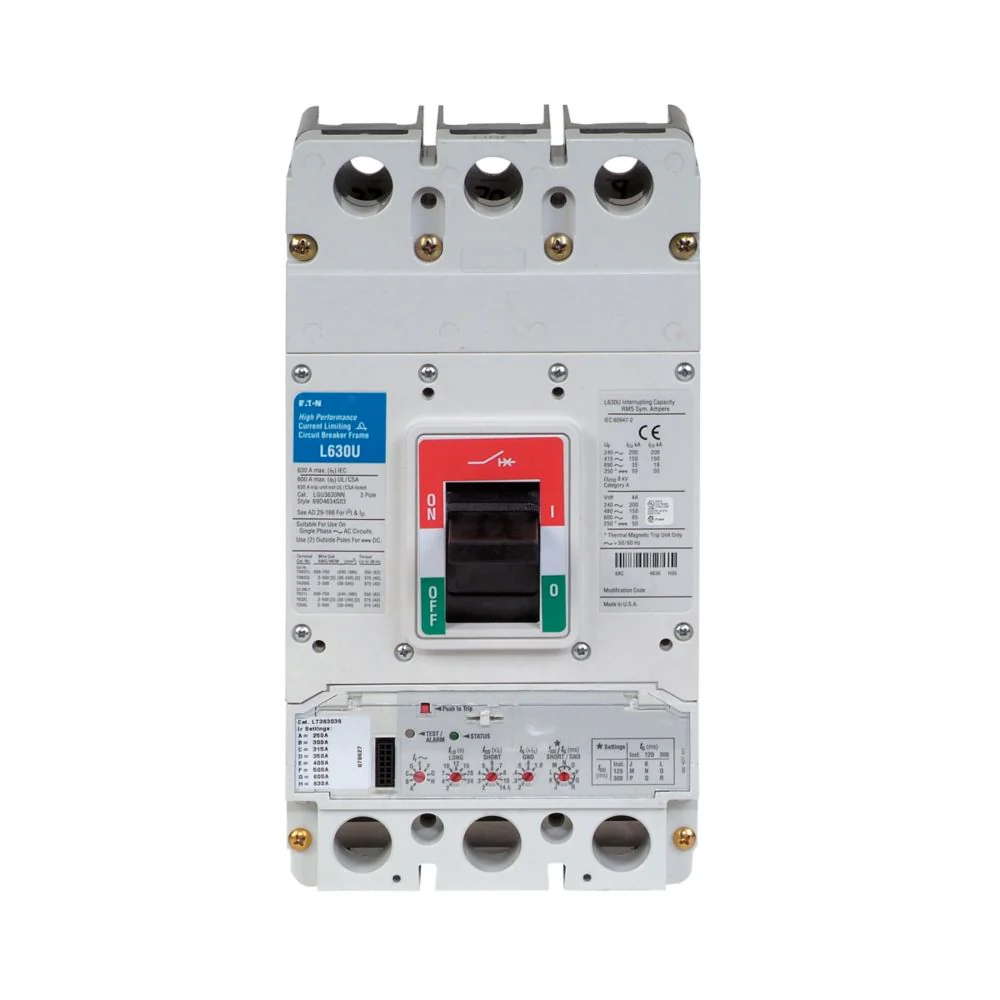

Eaton Series G electronic molded case circuit breaker, LG-frame, LG, Digitrip 310 RMS, Electronic LS trip, Three-pole, 600A, 600 Vac, 200 kAIC at 240 Vac, 150 kAIC at 415 Vac, 150 kAIC at 480 Vac, 65 kAIC at 600 Vac, Without terminals
Select Condition
From $8,476.99
LGU360033W - Eaton - Molded Case Circuit Breakers—
$8,476.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - LGU360033W - Eaton Molded Case Circuit Breakers
-
Part Number:
LGU360033W -
Manufacturer:
-
Family:
Series G -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
LGU -
Functions:
LS - Long-Time and Short-Time -
Protection:
Solid State -
AIC Ratings:
150kA@480V
Dimensions
-
Dimensions (HxWxD):
5.48" x 5.48" x 5.48" -
Weight:
15.3 lb
Standards
Product Description - LGU360033W - Eaton Molded Case Circuit Breakers
Eaton Series G electronic molded case circuit breaker, LG-frame, LG, Digitrip 310 RMS, Electronic LS trip, Three-pole, 600A, 600 Vac, 200 kAIC at 240 Vac, 150 kAIC at 415 Vac, 150 kAIC at 480 Vac, 65 kAIC at 600 Vac, Without terminals
