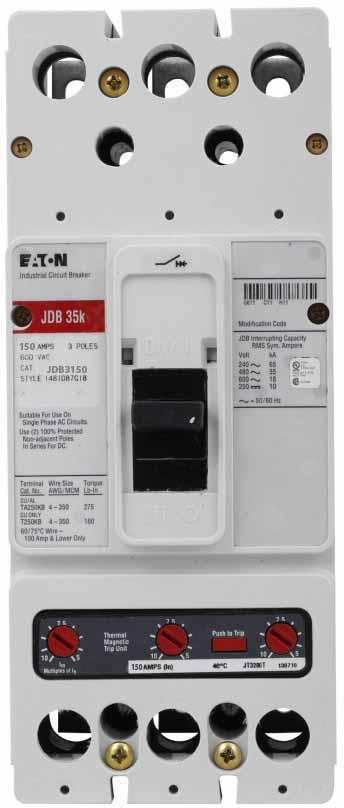

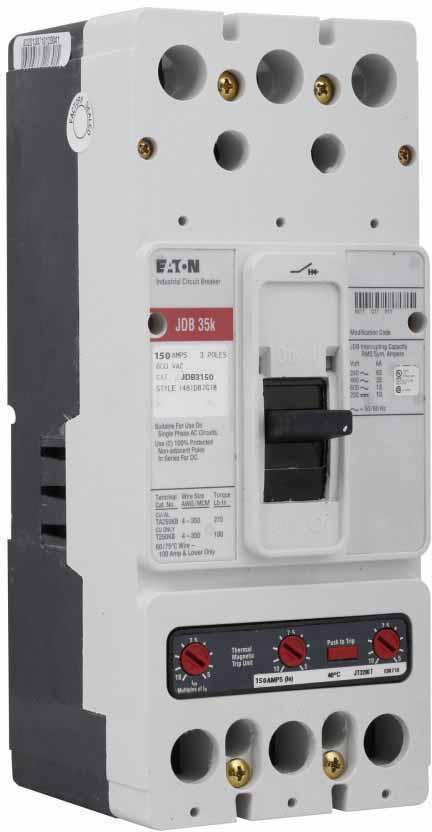

JDB3150 - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - JDB3150 - Eaton Molded Case Circuit Breakers
-
Part Number:
JDB3150 -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
150 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
JDB -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@480V -
Frame Type:
J Frame
Dimensions
-
Dimensions (HxWxD):
6.25" x 6.75" x 12.25"
-
Weight:
11 lbs
Standards
Product Description - JDB3150 - Eaton Molded Case Circuit Breakers
Eaton Series C complete molded case circuit breaker, J-frame, JDB, Fixed thermal, fixed magnetic trip, Three-pole, 150A, 600 Vac, 250 Vdc, 65kA@240 Vac, 35kA@480 Vac, Aluminum, Line and load, 50/60 Hz.
Documentation
Select Condition
From $1,532.99
JDB3150 - Eaton - Molded Case Circuit Breaker—
$1,532.99
