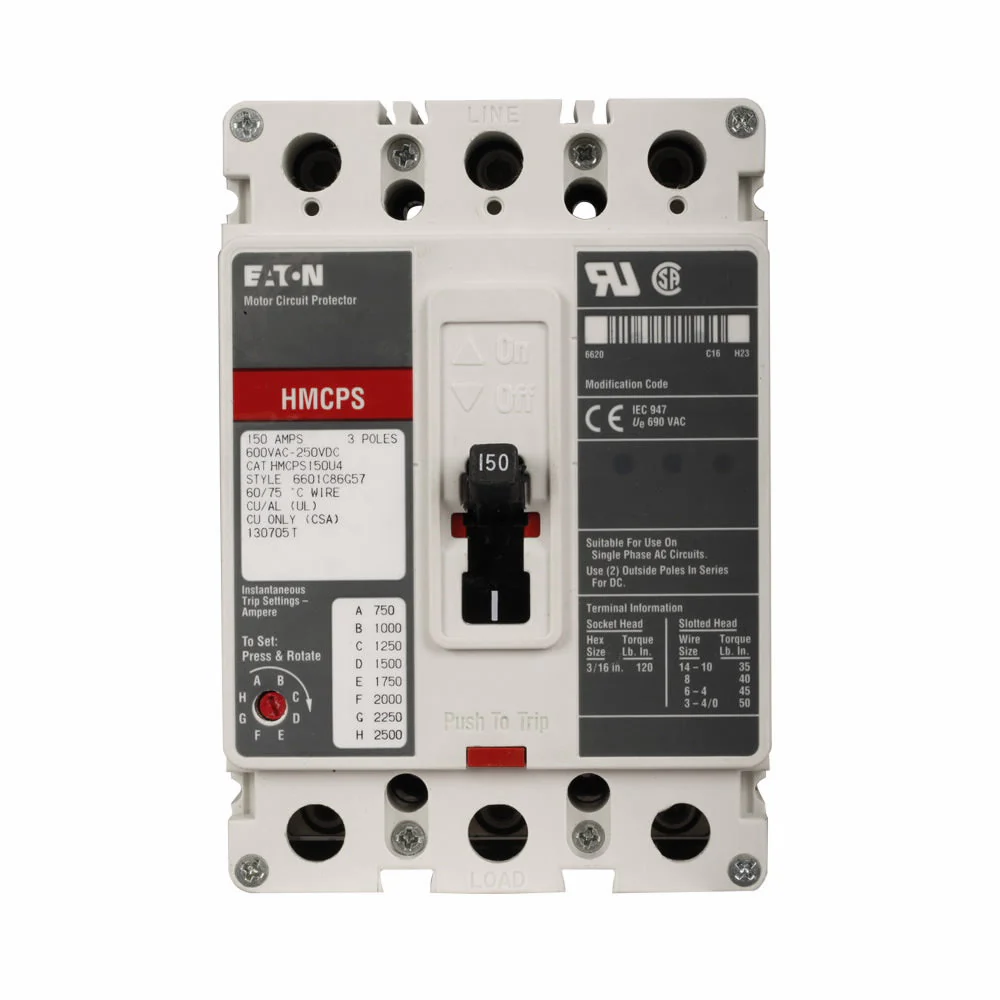

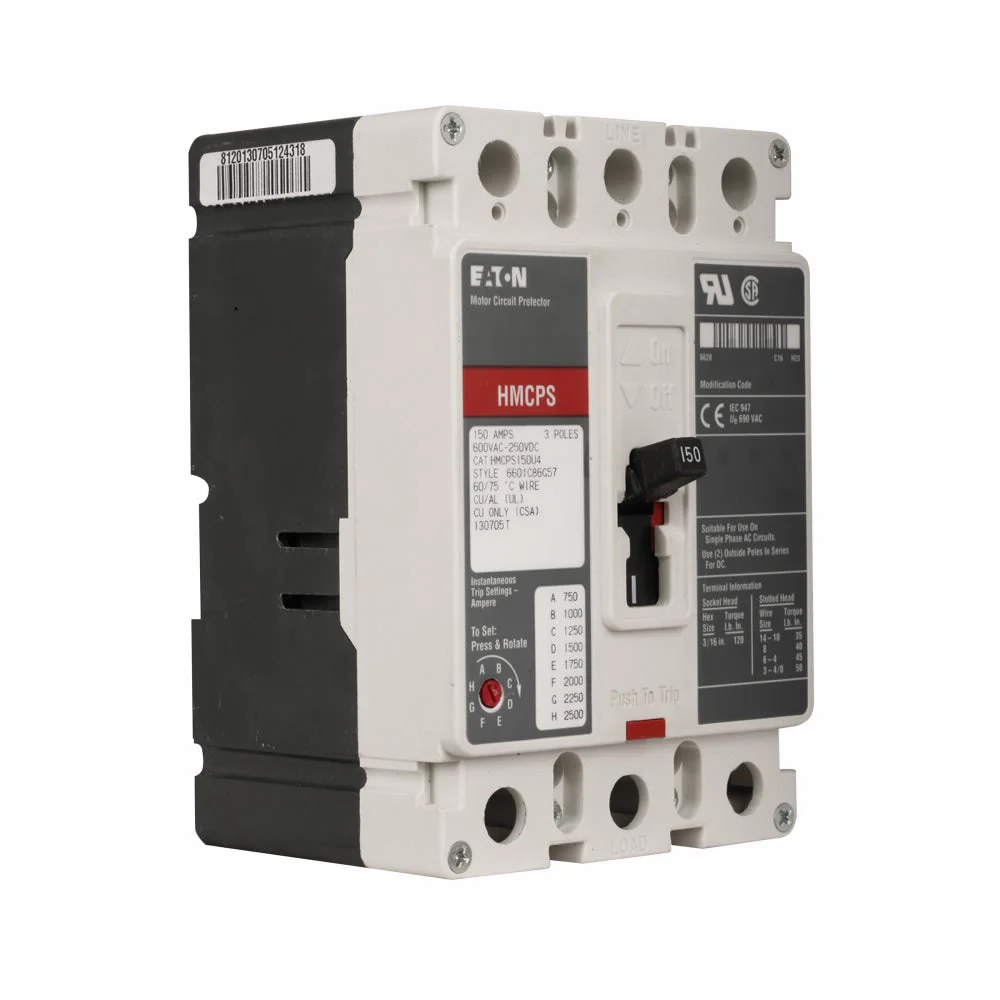

HMCPS150U4X - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - HMCPS150U4X - Eaton Molded Case Circuit Breaker
-
Part Number:
HMCPS150U4X -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
150 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HMCPS -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
65kA@480V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
B 5" x 5" x 7.5"
-
Weight:
4.45 lbs
Standards
Product Description - HMCPS150U4X - Eaton Molded Case Circuit Breaker
Cutler Hammer / Eaton / Westinghouse, Series C, type HMCPS, F Frame, 3P, 3PH, 150A, 600V, 65kA@480V, 40 degree C, feed-thru, complete with non-interchangeable trip with I - Instantaneous Protection Only, non-aluminum line & load side lug terminals, MCP, motor circuit protector for application with motor starters equipped with electronic overload relays, magnetic range 750-2500A, motor FLA 57.0-130.7A, magnetic only, molded case circuit breakers.
