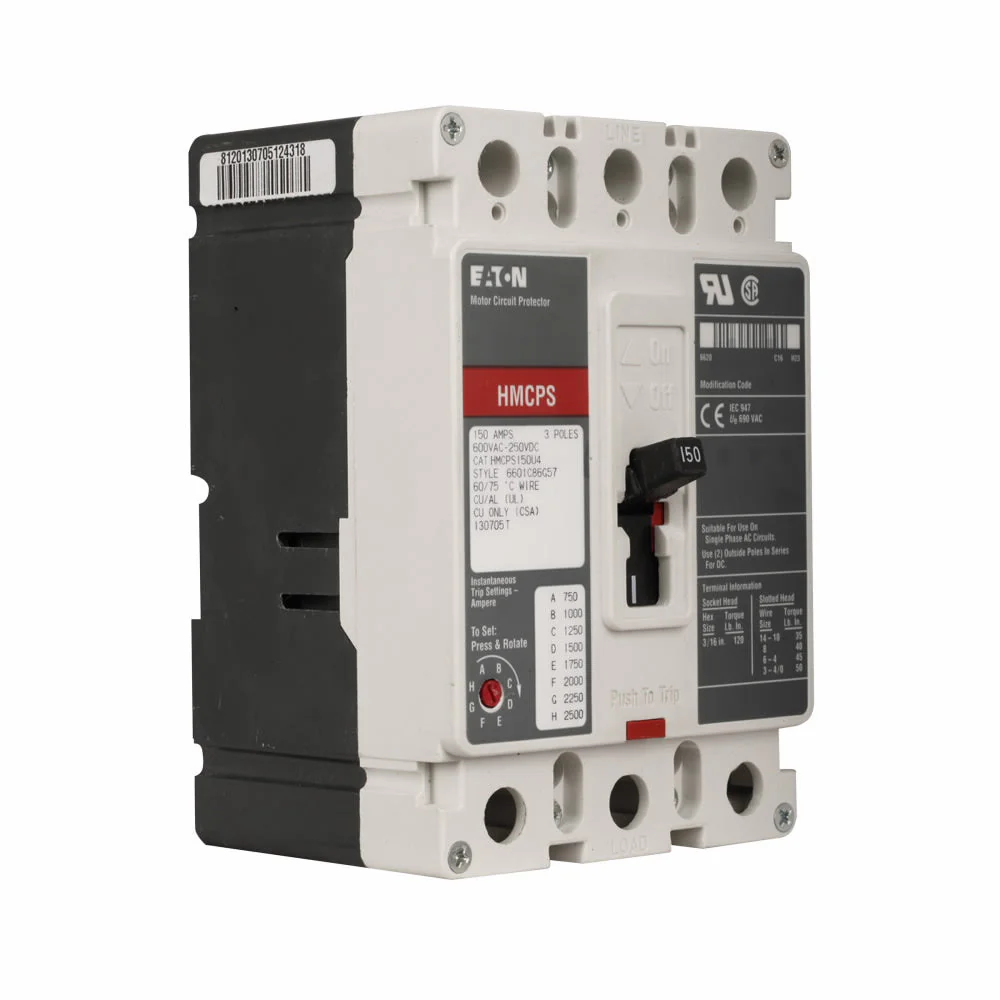

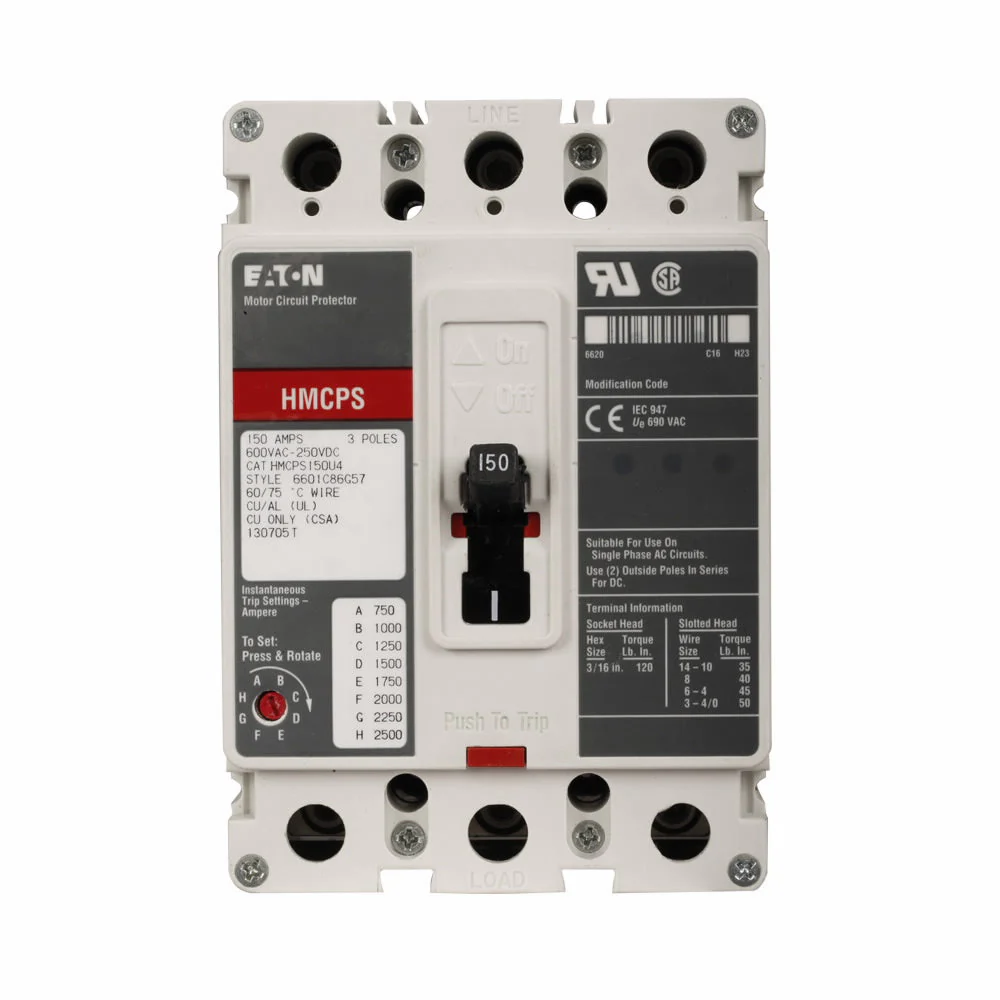

HMCPS100R3Y - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - HMCPS100R3Y - Eaton Molded Case Circuit Breaker
-
Part Number:
HMCPS100R3Y -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HMCPS -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
65kA@480V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
B 5" x 5" x 7.5"
-
Weight:
4.5 lbs
Standards
Product Description - HMCPS100R3Y - Eaton Molded Case Circuit Breaker
Cutler Hammer / Eaton / Westinghouse, Series C, type HMCPS, F Frame, 3P, 3PH, 100A, 600V, 65kA@480V, feed-thru, complete with non-interchangeable trip with I - Instantaneous Protection Only, non-aluminum line & load side lug terminals, MCP, motor circuit protector for application with motor starters equipped with electronic overload relays, magnetic range 300-1000A, motor FLA 23.0-84.5A, magnetic only, molded case circuit breakers.
