HMCPS007C0W - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - HMCPS007C0W - Eaton Molded Case Circuit Breaker
-
Part Number:
HMCPS007C0W -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
7 -
Volt:
2 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HMCPS -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
65kA@480V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
B 5" x 5" x 8"
-
Weight:
4.5 lbs
Standards
Product Description - HMCPS007C0W - Eaton Molded Case Circuit Breaker

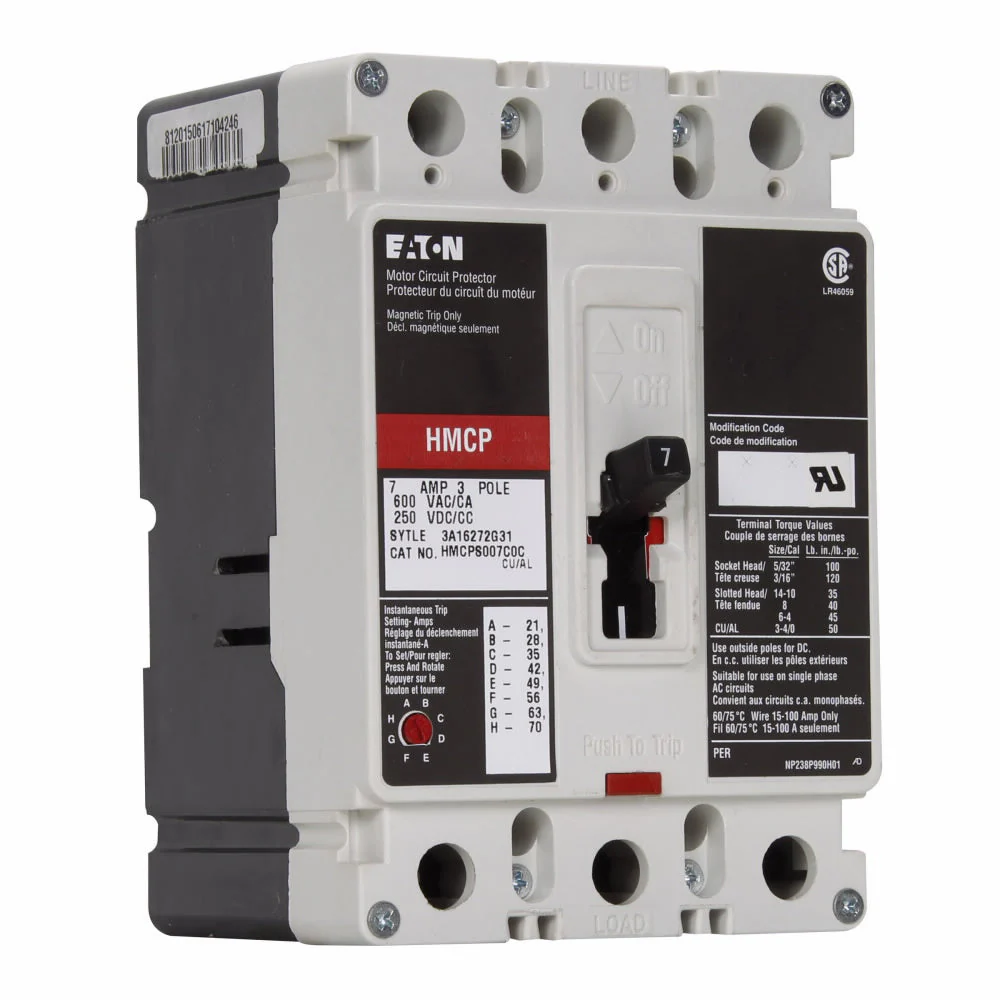

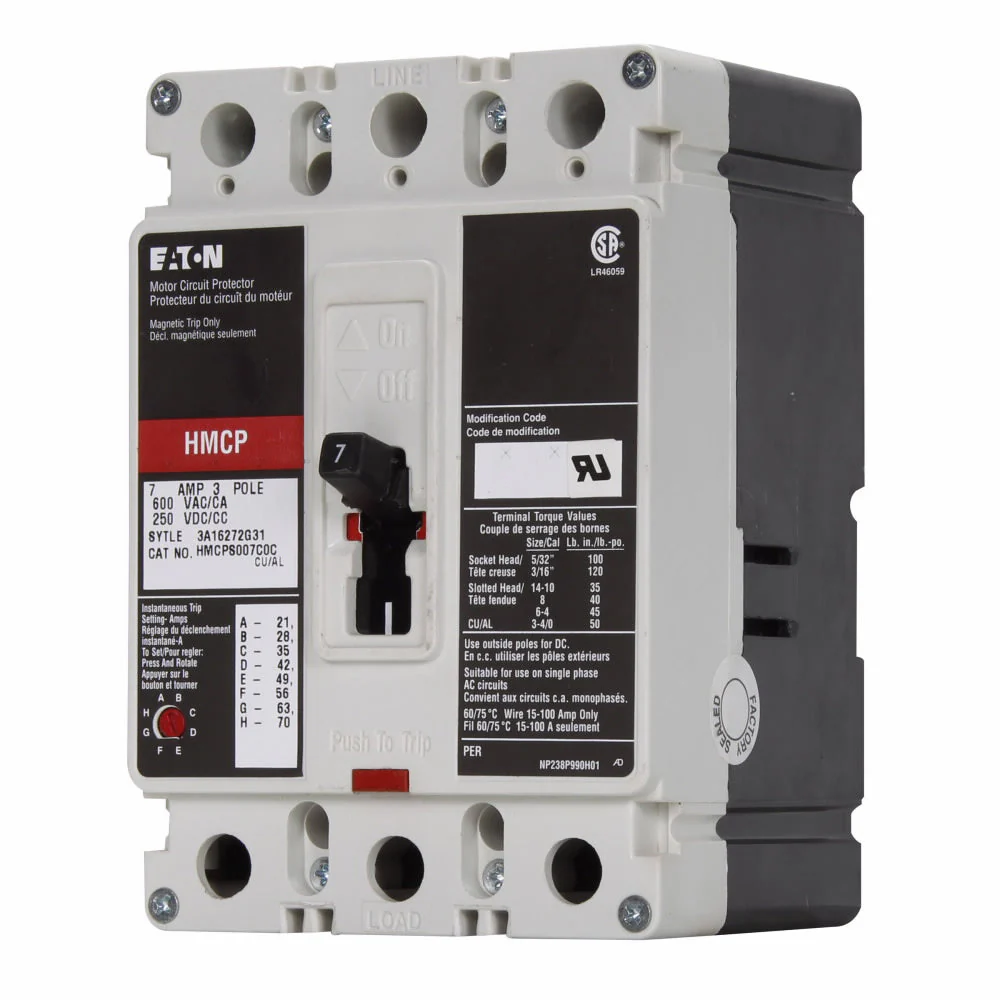

Cutler Hammer / Eaton / Westinghouse, Series C, type HMCPS, F Frame, 3P, 3PH, 7A, 600V, 65kA@480V, feed-thru, complete with non-interchangeable trip with I - Instantaneous Protection Only, non-aluminum line & load side lug terminals, MCP, motor circuit protector for application with motor starters equipped with electronic overload relays, magnetic range 21-70A, motor FLA 1.5-5.7A, magnetic only, molded case circuit breakers.
Documentation
Original: $604.99
-70%$604.99
$181.50Product Information
