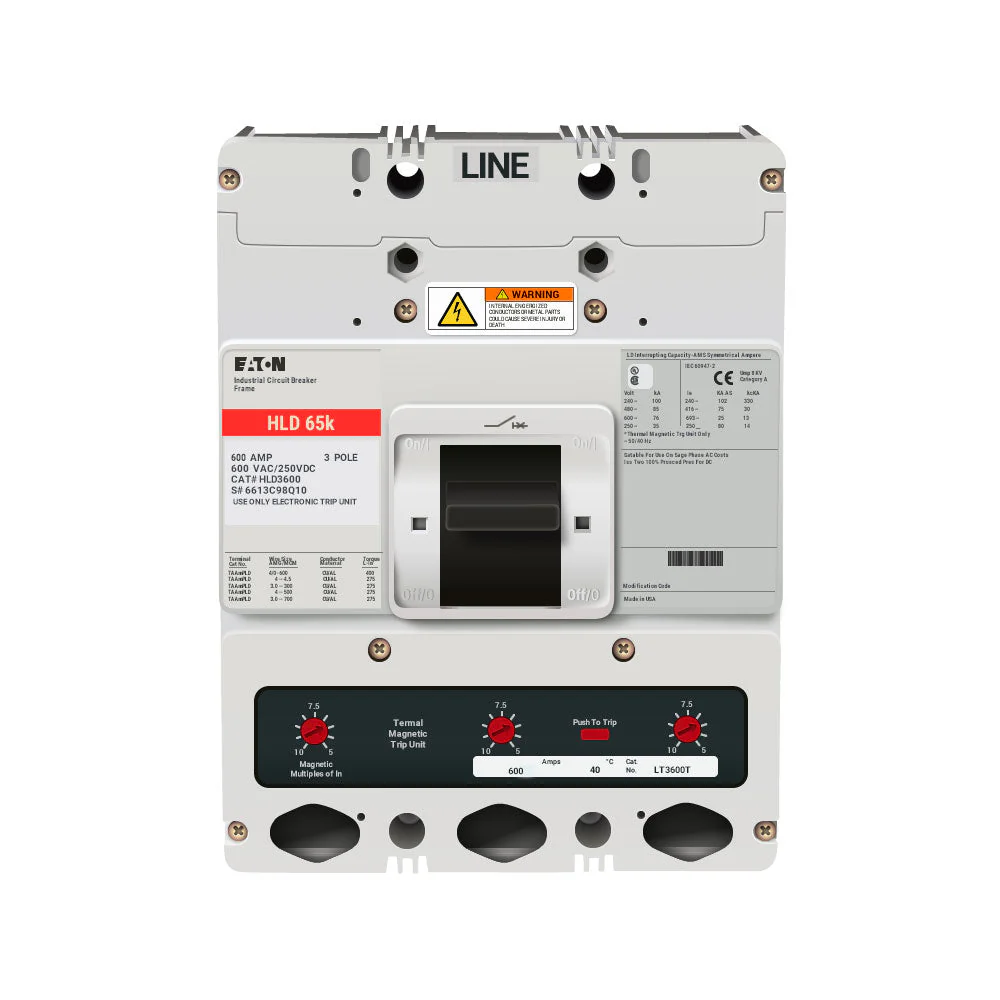

HLD3600W - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - HLD3600W - Eaton Molded Case Circuit Breaker
-
Part Number:
HLD3600W -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HLD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V -
Frame Type:
L Frame
Dimensions
-
Dimensions (HxWxD):
8.25" x 8.25" x 8.25"
-
Weight:
17 lbs
Standards
Product Description - HLD3600W - Eaton Molded Case Circuit Breaker
Cutler Hammer / Eaton / Westinghouse, Series C, type HLD, 3P, 3PH, 600A, 600V, 65kA@480V, high interrupting capacity, 40 degree C, feed-thru, complete with interchangeable, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
Documentation
Select Condition
From $1,057.80
Original: $3,525.99
-70%HLD3600W - Eaton - Molded Case Circuit Breaker—
$3,525.99
$1,057.80Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - HLD3600W - Eaton Molded Case Circuit Breaker
-
Part Number:
HLD3600W -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HLD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V -
Frame Type:
L Frame
Dimensions
-
Dimensions (HxWxD):
8.25" x 8.25" x 8.25"
-
Weight:
17 lbs
Standards
Product Description - HLD3600W - Eaton Molded Case Circuit Breaker
Cutler Hammer / Eaton / Westinghouse, Series C, type HLD, 3P, 3PH, 600A, 600V, 65kA@480V, high interrupting capacity, 40 degree C, feed-thru, complete with interchangeable, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
