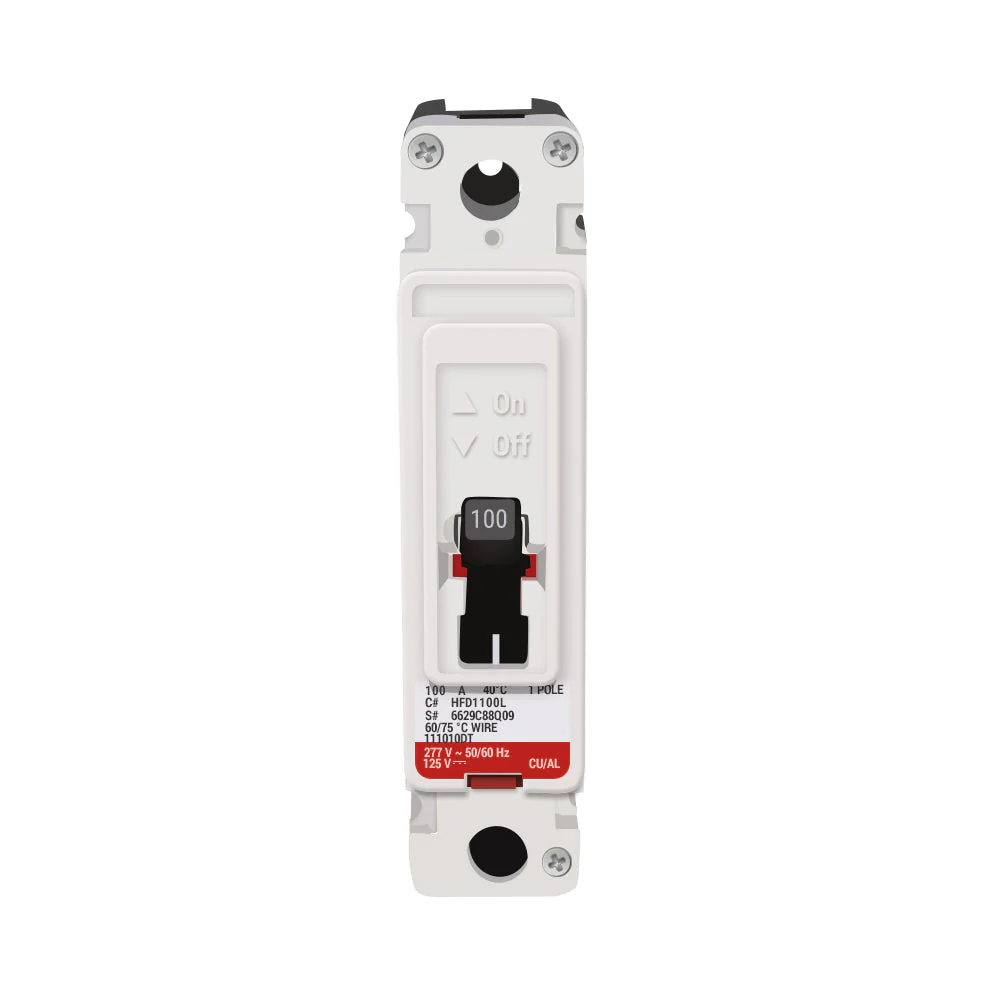

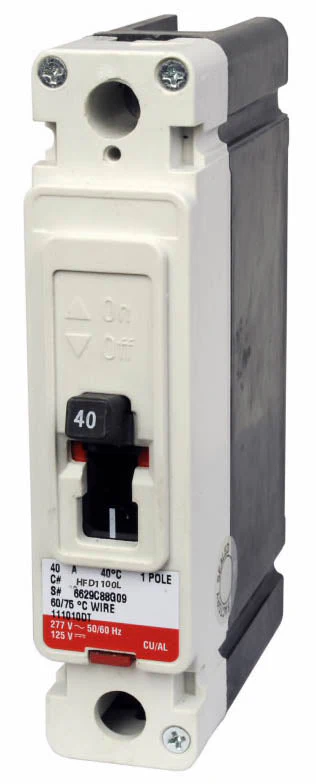

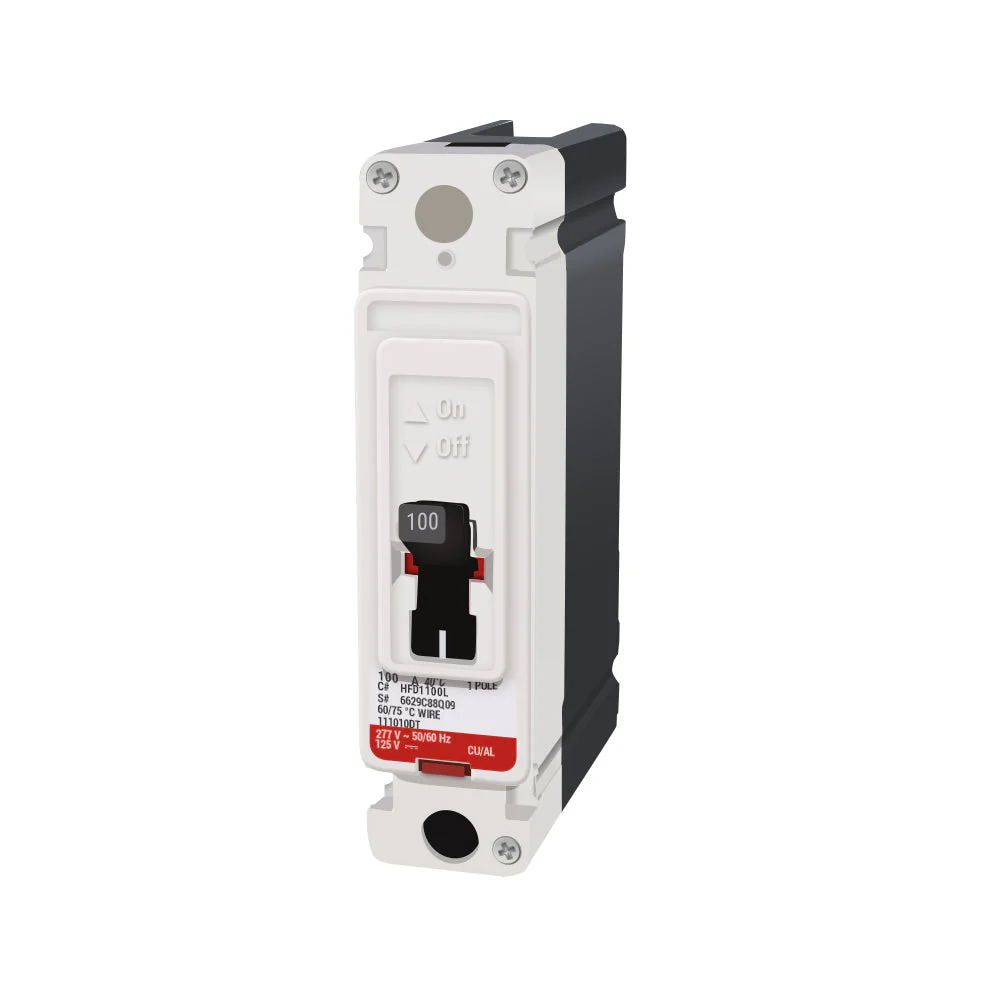

HFD1100L - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - HFD1100L - Eaton Molded Case Circuit Breaker
-
Part Number:
HFD1100L -
Manufacturer:
-
Family:
Series C -
Pole:
1 -
Amp
100 -
Volt:
277 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
HFD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@277V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
6" x 1.38" x 3.38"
-
Weight:
4.5 lbs
Standards
Product Description - HFD1100L - Eaton Molded Case Circuit Breaker
Eaton Series C complete molded case circuit breaker, F-frame, HFD, Complete breaker, Fixed thermal, fixed magnetic trip type, Single-pole, 100A, 347 Vac, 125 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line and load, 50/60 Hz
Documentation
Select Condition
From $74.10
Original: $246.99
-70%HFD1100L - Eaton - Molded Case Circuit Breaker—
$246.99
$74.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - HFD1100L - Eaton Molded Case Circuit Breaker
-
Part Number:
HFD1100L -
Manufacturer:
-
Family:
Series C -
Pole:
1 -
Amp
100 -
Volt:
277 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
HFD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@277V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
6" x 1.38" x 3.38"
-
Weight:
4.5 lbs
Standards
Product Description - HFD1100L - Eaton Molded Case Circuit Breaker
Eaton Series C complete molded case circuit breaker, F-frame, HFD, Complete breaker, Fixed thermal, fixed magnetic trip type, Single-pole, 100A, 347 Vac, 125 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line and load, 50/60 Hz
