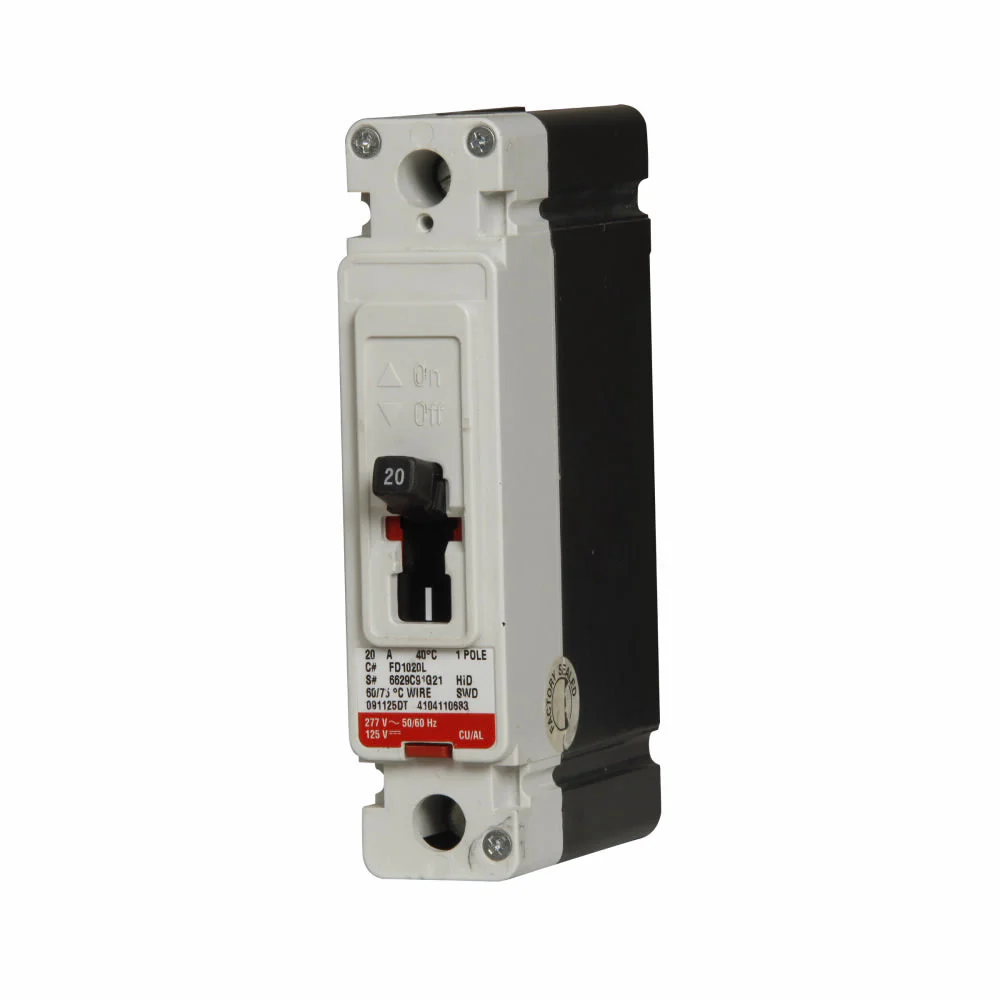

FD1060 - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - FD1060 - Eaton Molded Case Circuit Breaker
-
Part Number:
FD1060 -
Manufacturer:
-
Family:
Series C -
Pole:
1 -
Amp
60 -
Volt:
277 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
FD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
35kA@277V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
6" x 1.38" x 3.38"
-
Weight:
1.6 lbs
Standards
Product Description - FD1060 - Eaton Molded Case Circuit Breaker
Eaton Series C complete molded case circuit breaker, F-frame, FD, Complete breaker, Fixed thermal, Fixed magnetic trip type, Single-pole, 60 A, 347 Vac, 125 Vdc, 35 kAIC at 277 Vac, 18 kAIC at 347 Vac, Load side, 50/60 Hz
