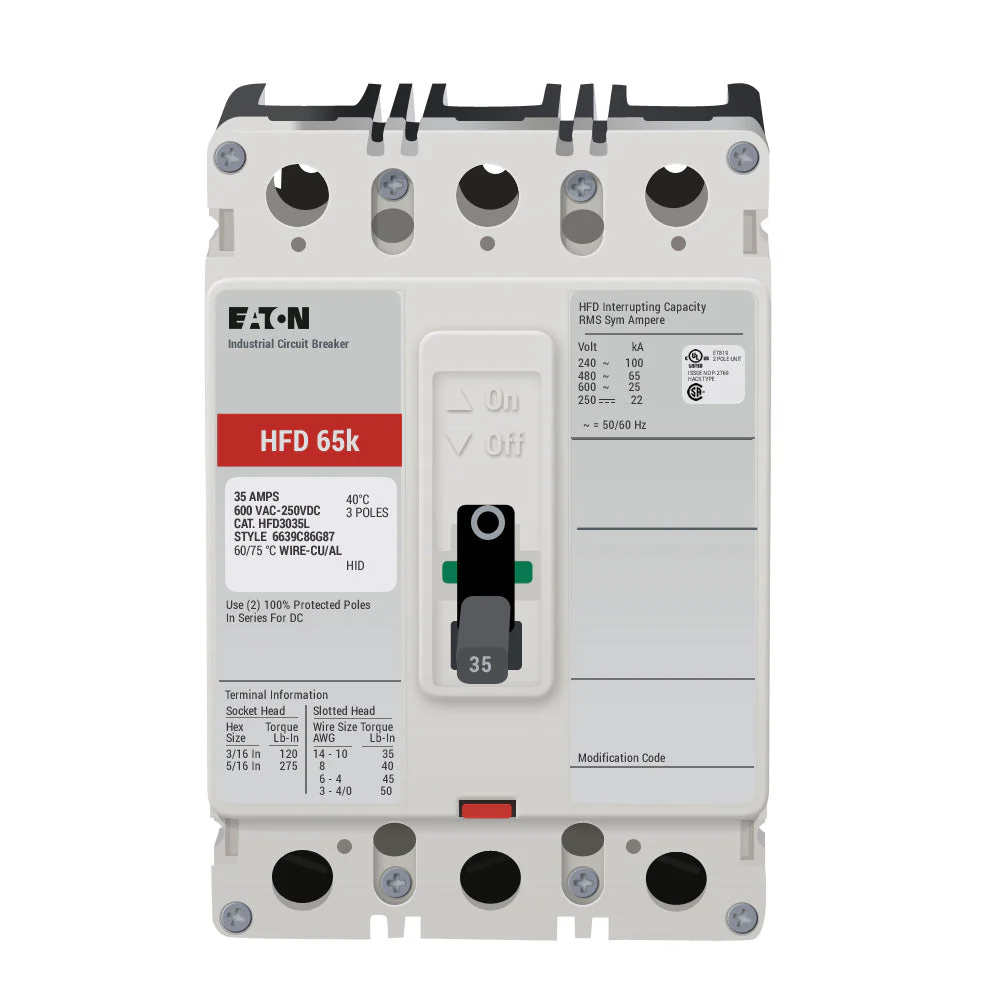

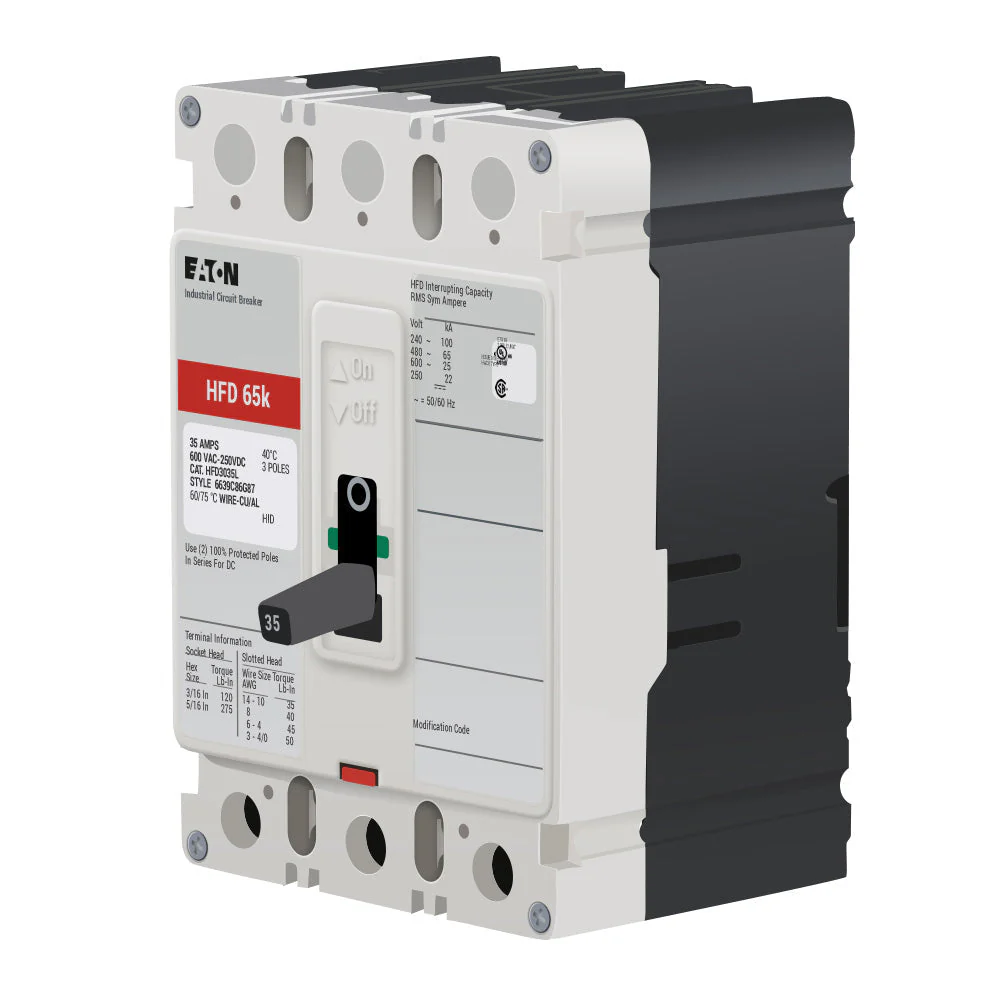

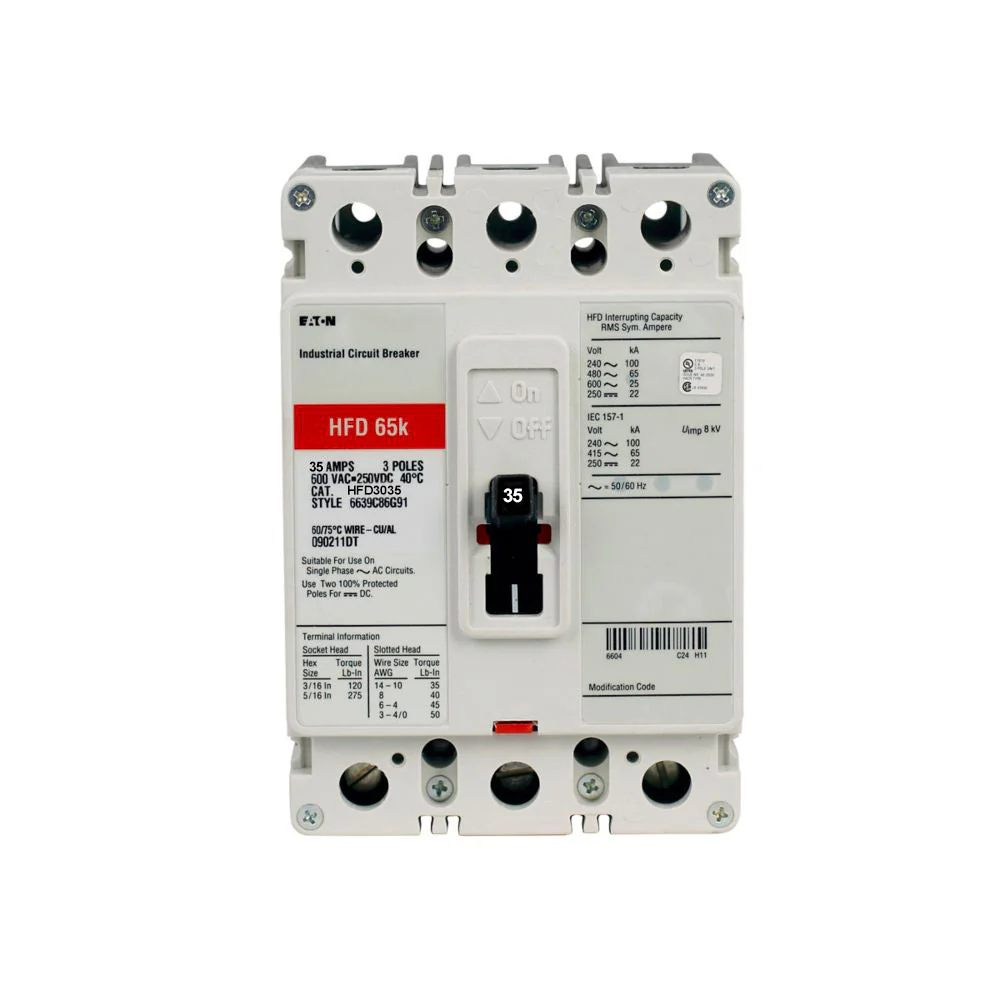

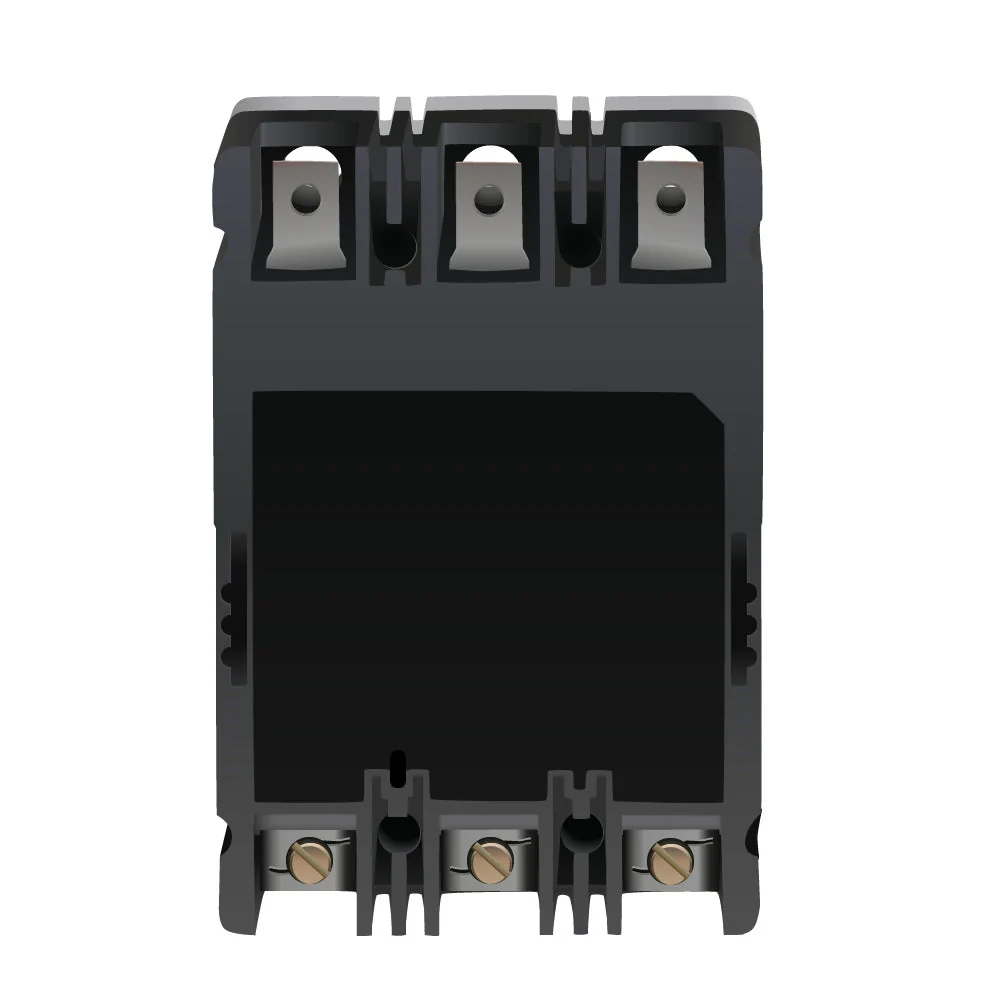

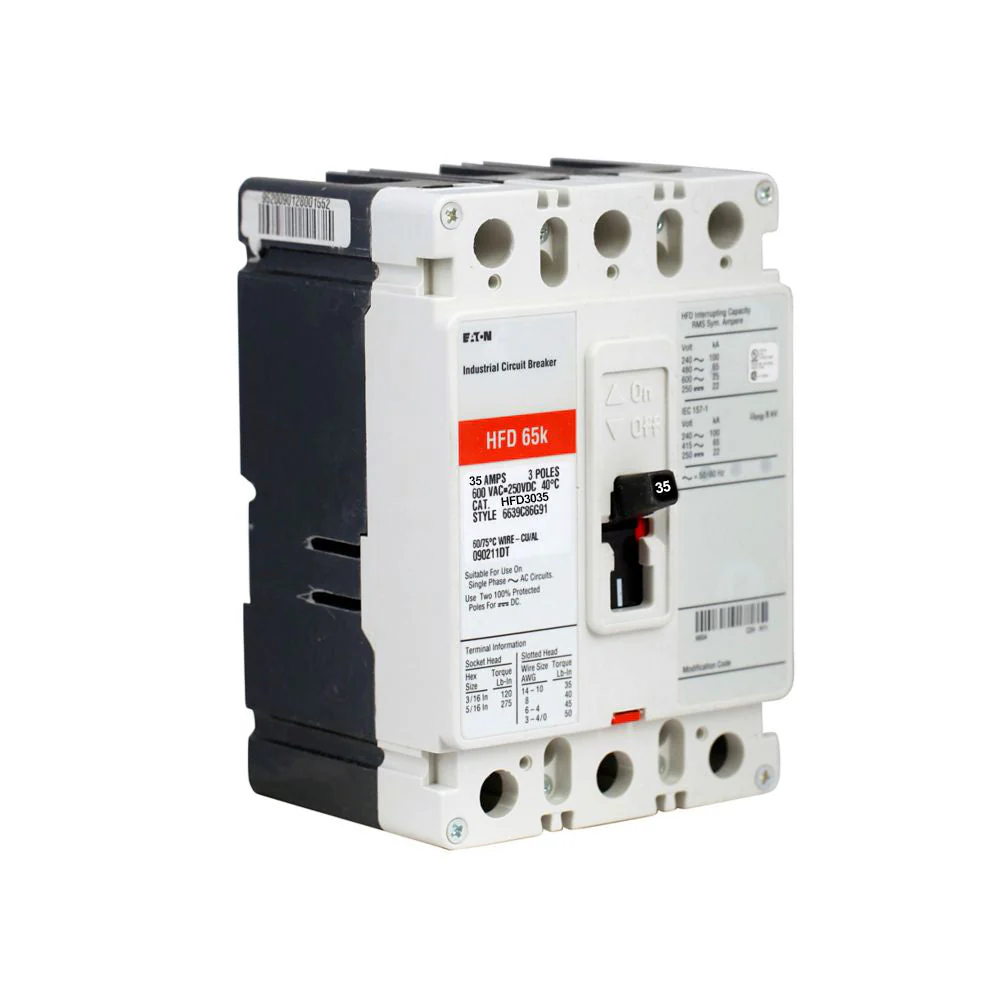

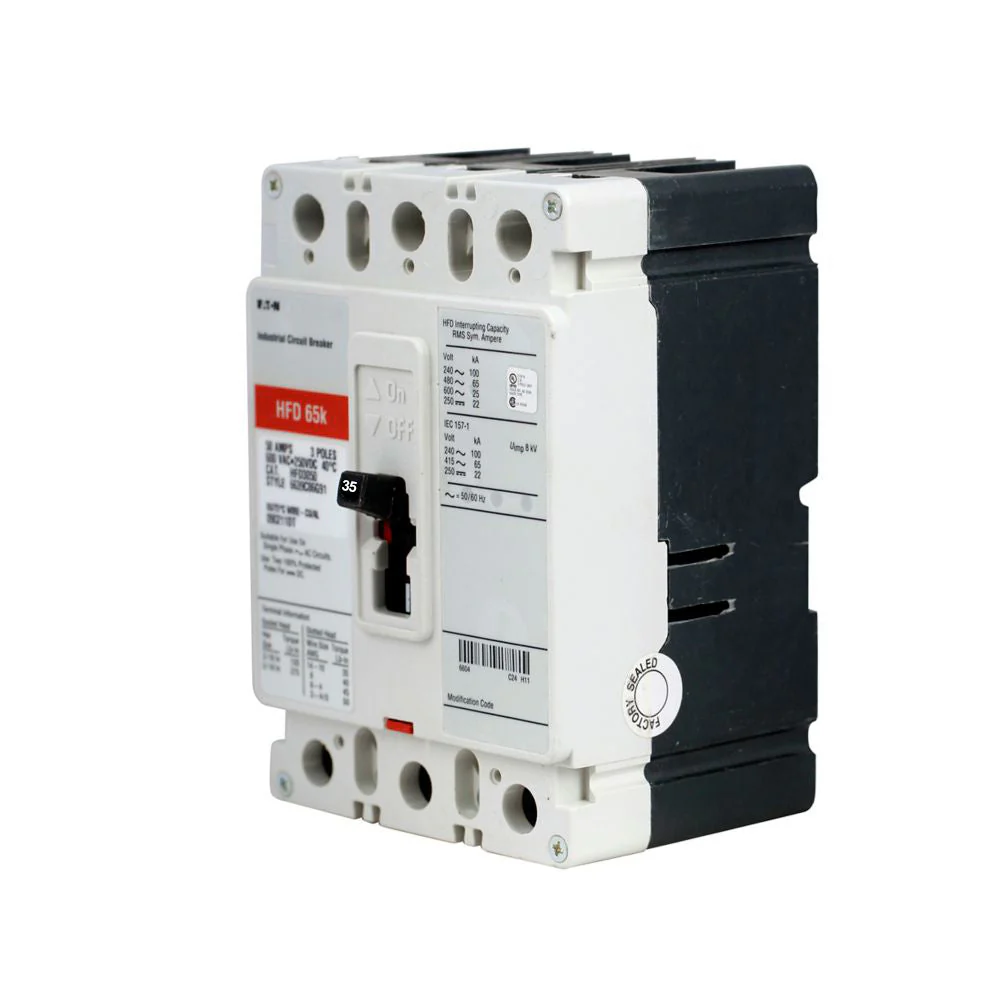

HFD3035 - Eaton - Molded Case Circuit Breaker
Overview
Product Specifications - HFD3035 - Eaton Molded Case Circuit Breaker
-
Part Number:
HFD3035 -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
35 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HFD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
6.0" x 4.13" x 3.38"
-
Weight:
4.5 lbs
Standards
Product Description - HFD3035 - Eaton Molded Case Circuit Breaker
Cutler Hammer / Eaton / Westinghouse, Series C, type HFD, 3P, 3PH, 35A, 600V, 65kA@480V, high interrupting capacity, 40 degree C, feed-thru, complete with non-interchangeable, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers
Documentation
Select Condition
From $180.00
Original: $599.99
-70%HFD3035 - Eaton - Molded Case Circuit Breaker—
$599.99
$180.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - HFD3035 - Eaton Molded Case Circuit Breaker
-
Part Number:
HFD3035 -
Manufacturer:
-
Family:
Series C -
Pole:
3 -
Amp
35 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
HFD -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V -
Frame Type:
F Frame
Dimensions
-
Dimensions (HxWxD):
6.0" x 4.13" x 3.38"
-
Weight:
4.5 lbs
Standards
Product Description - HFD3035 - Eaton Molded Case Circuit Breaker
Cutler Hammer / Eaton / Westinghouse, Series C, type HFD, 3P, 3PH, 35A, 600V, 65kA@480V, high interrupting capacity, 40 degree C, feed-thru, complete with non-interchangeable, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers
