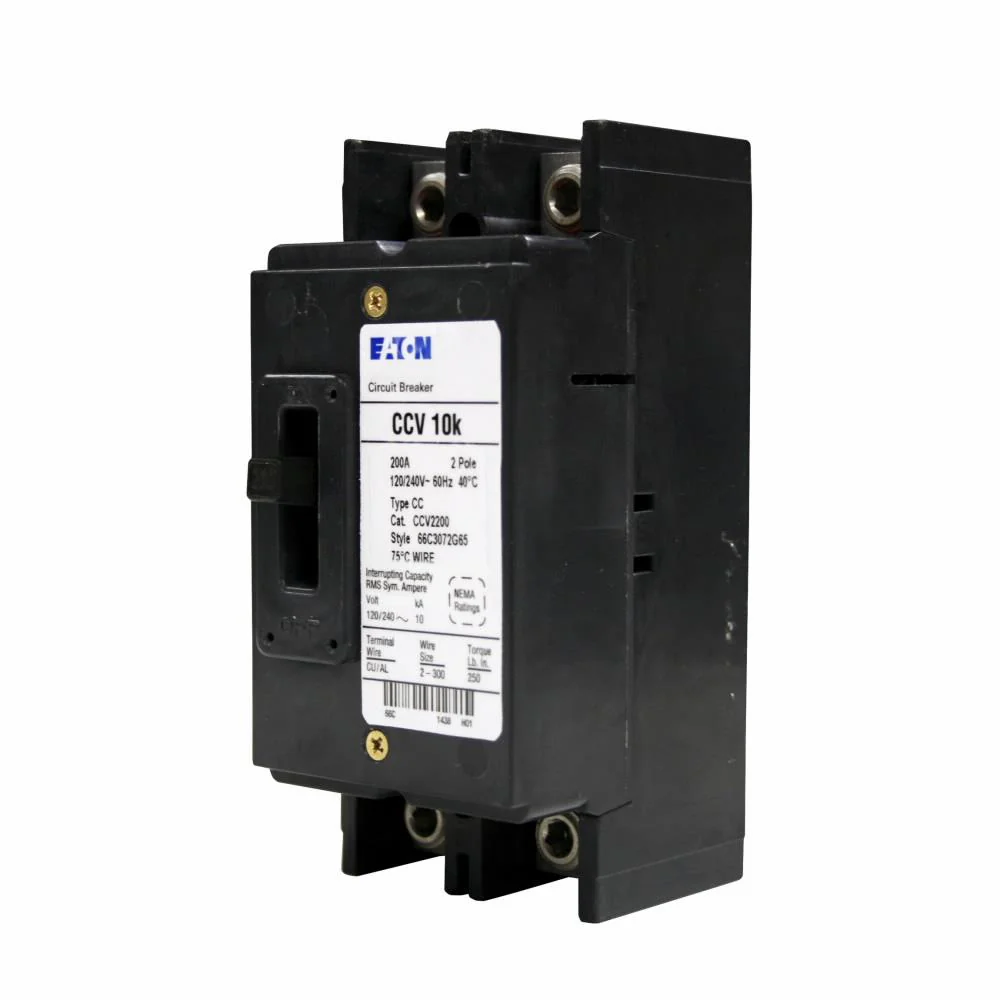

CCV2225 - Eaton - Main Circuit Breaker
Overview
Product Specifications - CCV2225 - Eaton Feed Thru Circuit Breaker
-
Part Number:
CCV2225 -
Manufacturer:
-
Family:
Tenant Main -
Pole:
2 -
Amp
225 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Feed Thru -
Type:
CCV -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
10kA@240V
Dimensions
-
Dimensions (HxWxD):
5.5" x 4.5" x 8" -
Weight:
2.5 lbs
Standards
Product Description - CCV2225 - Eaton Feed Thru Circuit Breaker
Cutler Hammer, Tenant Main, type CCV, 2P, 1PH, 225A, 120/240V, 10kA@240V, UL listed, standard interrupting capacity, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, suitable for use as tenant main circuit breaker, Thermal Magnetic, molded case circuit breakers
Documentation
$56.10
Original: $186.99
-70%CCV2225 - Eaton - Main Circuit Breaker—
$186.99
$56.10Product Information
