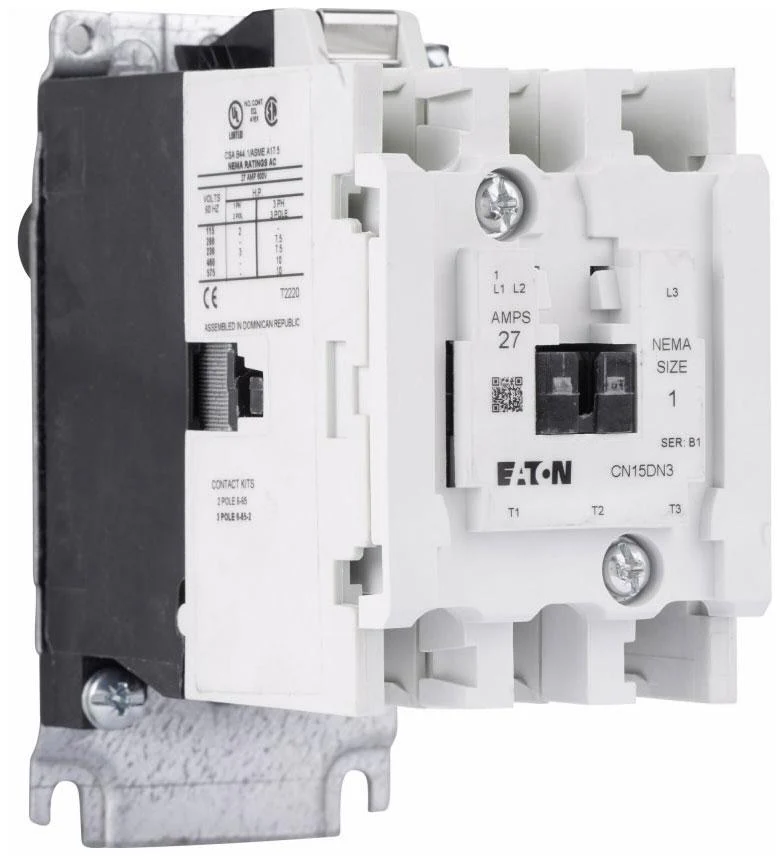

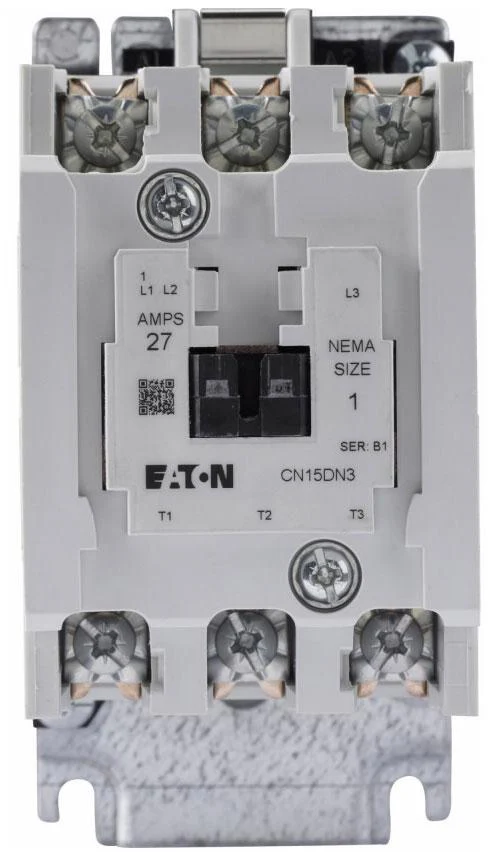

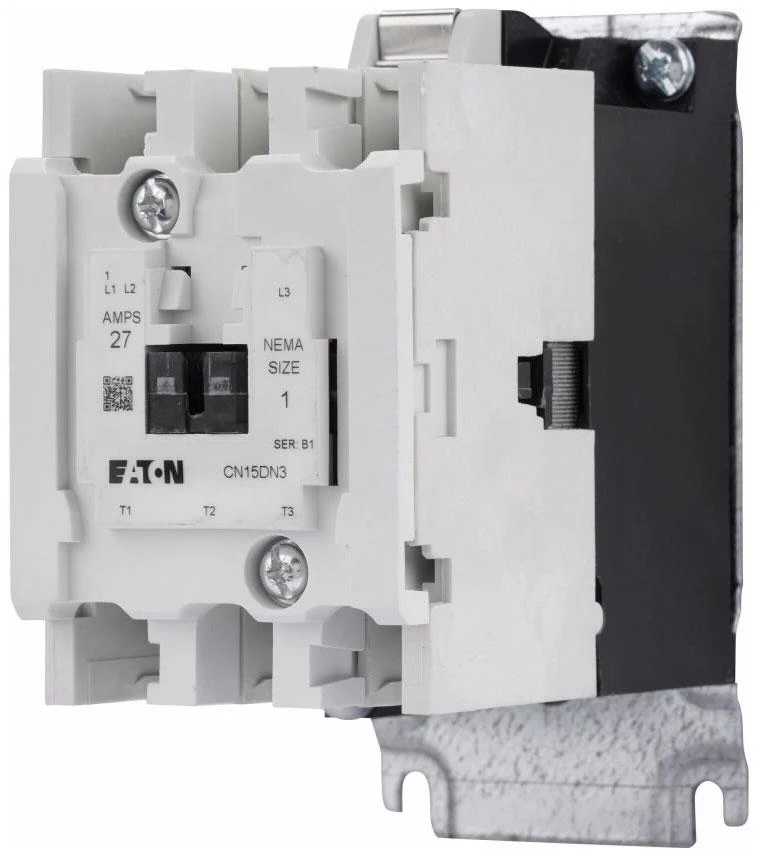

CN15DN3AB - Eaton - Magnetic Contactor
Overview
Product Specifications - CN15DN3AB - Eaton Magnetic Contactor
-
Part Number:
CN15DN3AB -
Manufacturer:
-
Family:
Freedom Series -
Pole:
3 -
Amp
27 -
Volt:
120 -
Coil Voltage Min:
110 -
Coil Voltage Max:
120 -
Phase:
3
-
Category:
-
Type:
CN15DN
Dimensions
-
Dimensions (HxWxD):
5.05" x 2.56" x 4.44"
-
Weight:
3.1 lbs
Standards
Product Description - CN15DN3AB - Eaton Magnetic Contactor
utler Hammer, Freedom Series, type CN15DN, 3P, 1 or 3PH, 27A, 600V, 2hp @ 115V 1PH, 3hp @ 230V 1PH, 7.5hp @ 208V 3PH, 7.5hp @ 240V 3PH, 10hp @ 480V 3PH, 10hp @ 600V 3PH, 10hp @ 380V 50Hz, complete with 110V 50Hz or 120V 60Hz, AC coil, non-reversing contactors, NEMA size 1, suitable for use with Cutler Hammer motor control systems.
Documentation
Select Condition
From $81.00
Original: $269.99
-70%CN15DN3AB - Eaton - Magnetic Contactor—
$269.99
$81.00Product Information
