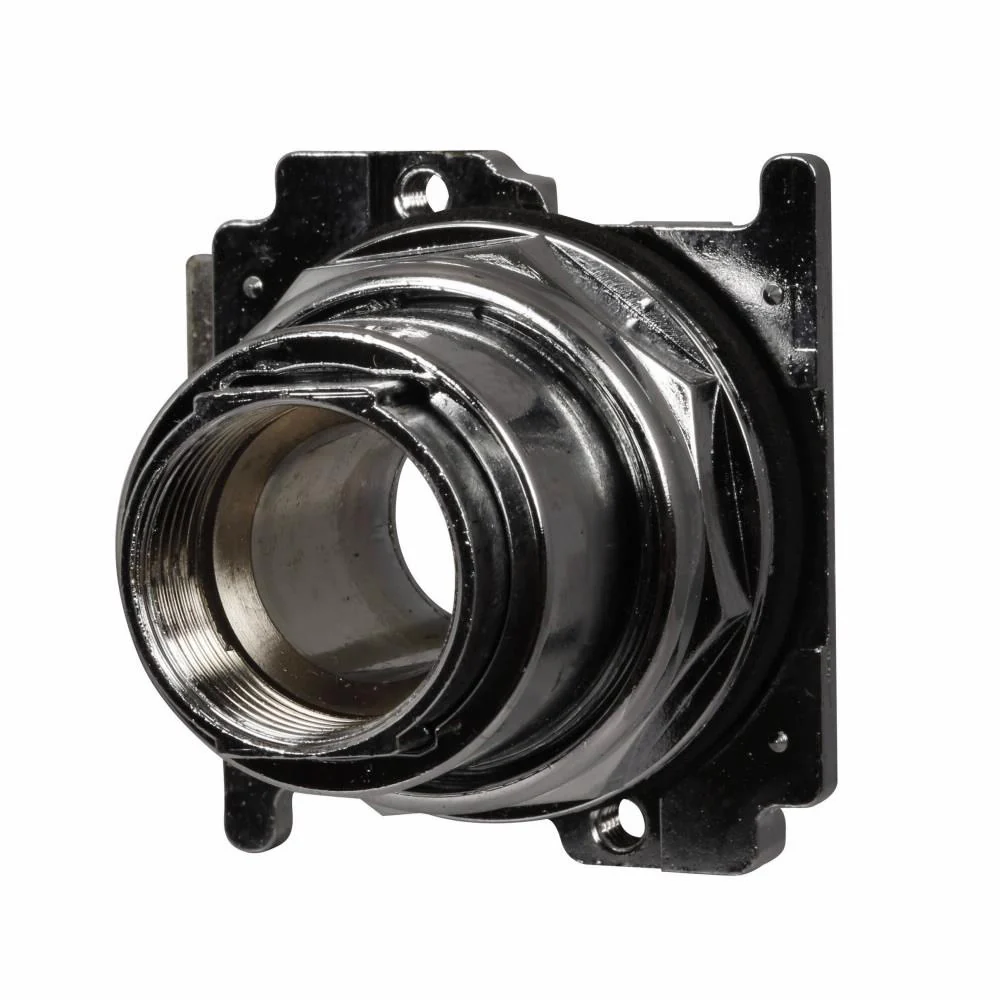

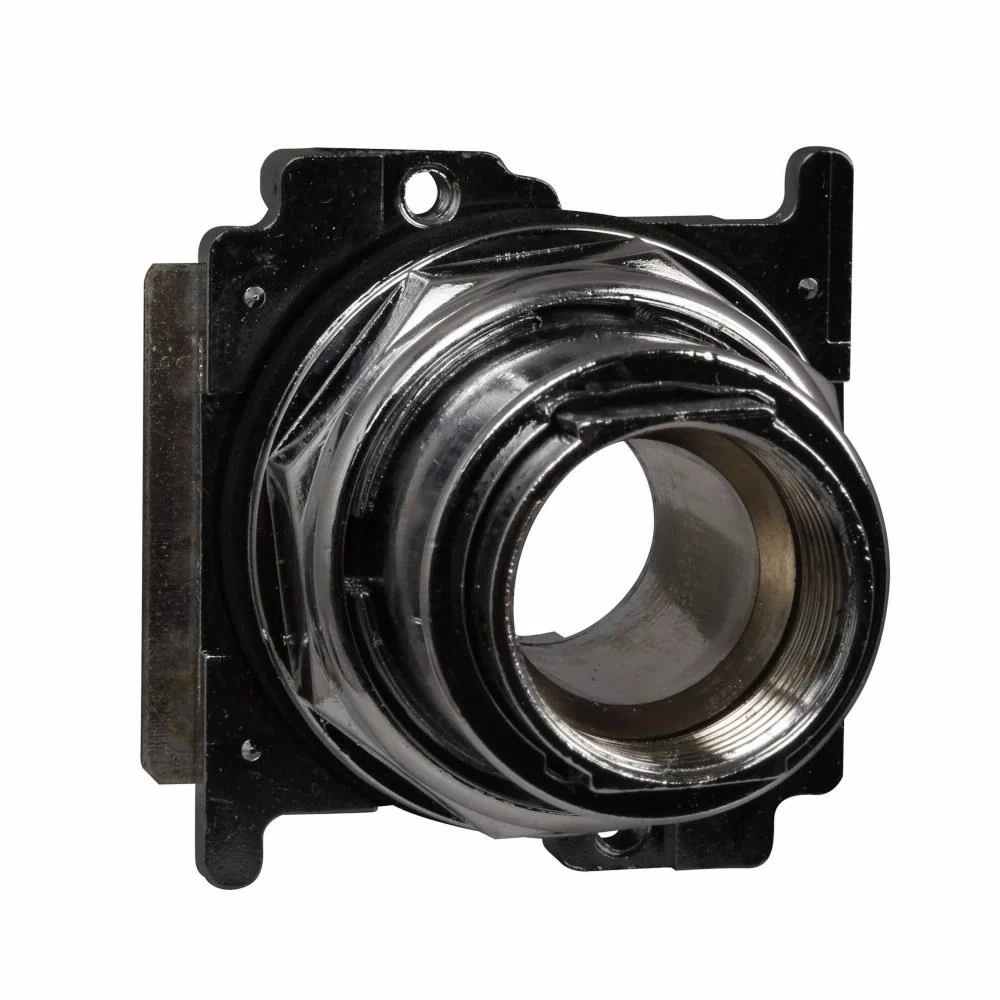

10250T10 - Eaton Cutler-Hammer Heavy-Duty Push-Pull Operator

Specifications:

• Product Name: Heavy-Duty Push-Pull Operator
• UPC: 782113631332
• Product Length/Depth: 2.2 IN
• Product Height: 1.9 IN
• Product Width: 1.9 IN
• Ce Marked: CERTIFICATIONS
• Csa Certified : UL Listed
• Catalog Notes: Contact blocks 10250T55 and 10250T57 cannot be used with this operator
• Number Of Positions: Three-Position
• Series: 10250T
• Type: 30.5 Mm, Heavy-Duty
• Operating Mode: Momentary Push And Pull, Maintained Intermediate
• Rating: Nema 3, 3R, 4, 4X, 12, 13
• Illumination: Non-Illuminated
• Size: 30.5 Mm
• Authentic Eaton / Cutler Hammer Product
• Dimensions (H x W x L): 1.9" x 1.9" x 2.2"
