DH364FRK - Eaton - Disconnect
Overview
Product Specifications - DH364FRK - Eaton Disconnect
-
Part Number:
DH364FRK -
Manufacturer:
-
Family:
DH Series -
Pole:
3 -
Amp
200 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
DH -
AIC Ratings:
200kA@600V
Dimensions
-
Dimensions (HxWxD):
30 x 9.5 x 18 -
Weight:
40 lb
Standards
Product Description - DH364FRK - Eaton Disconnect

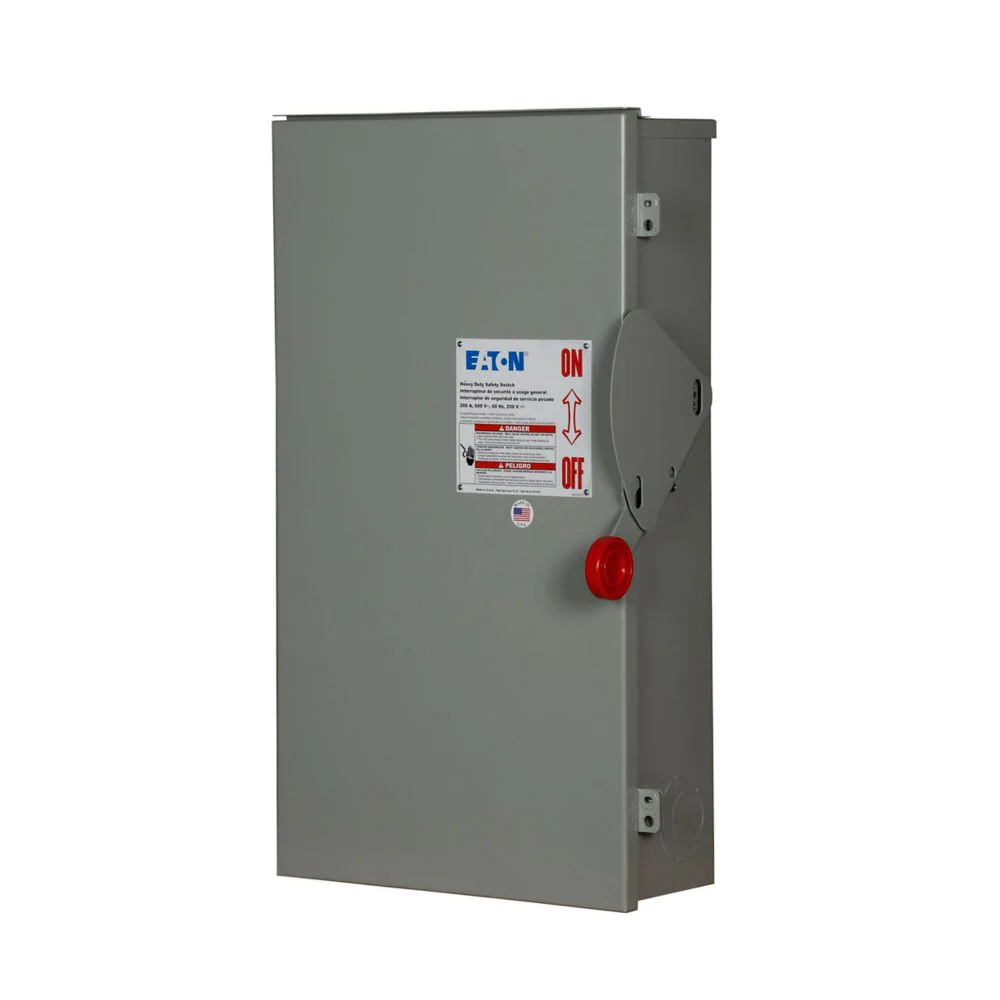

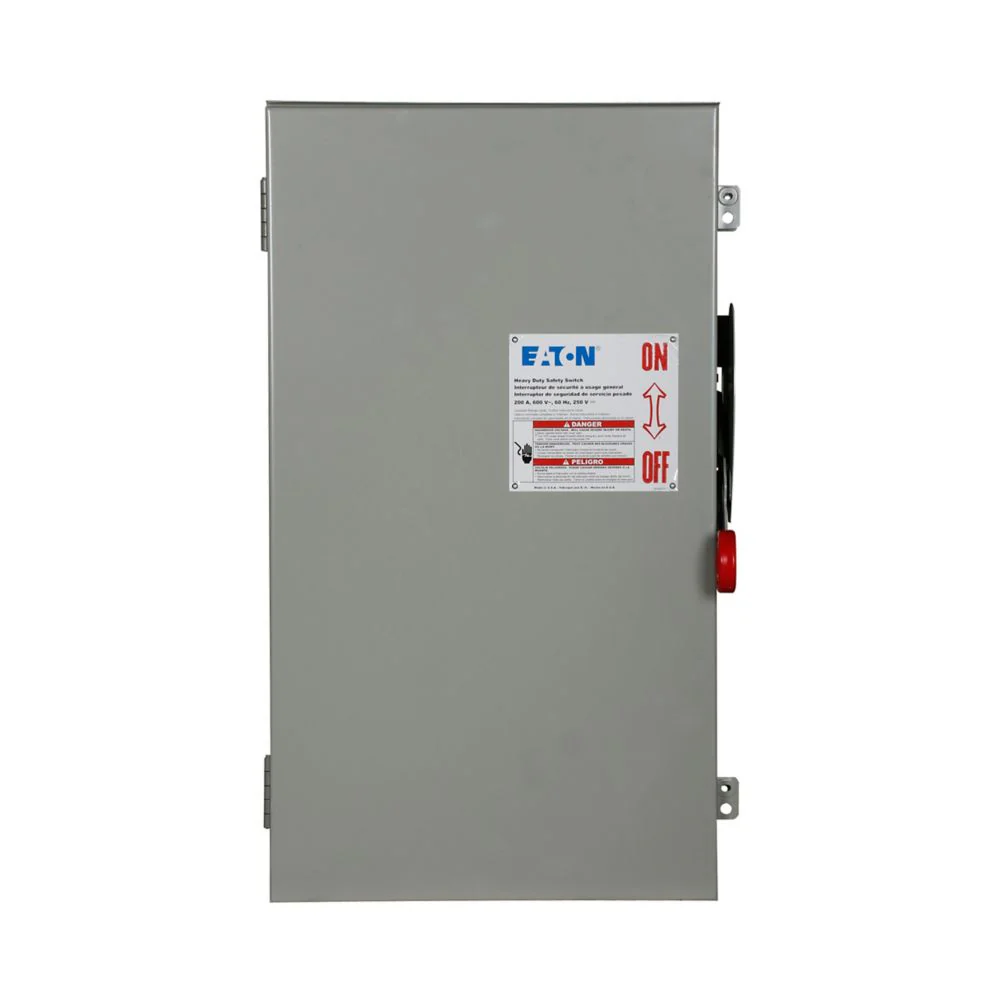

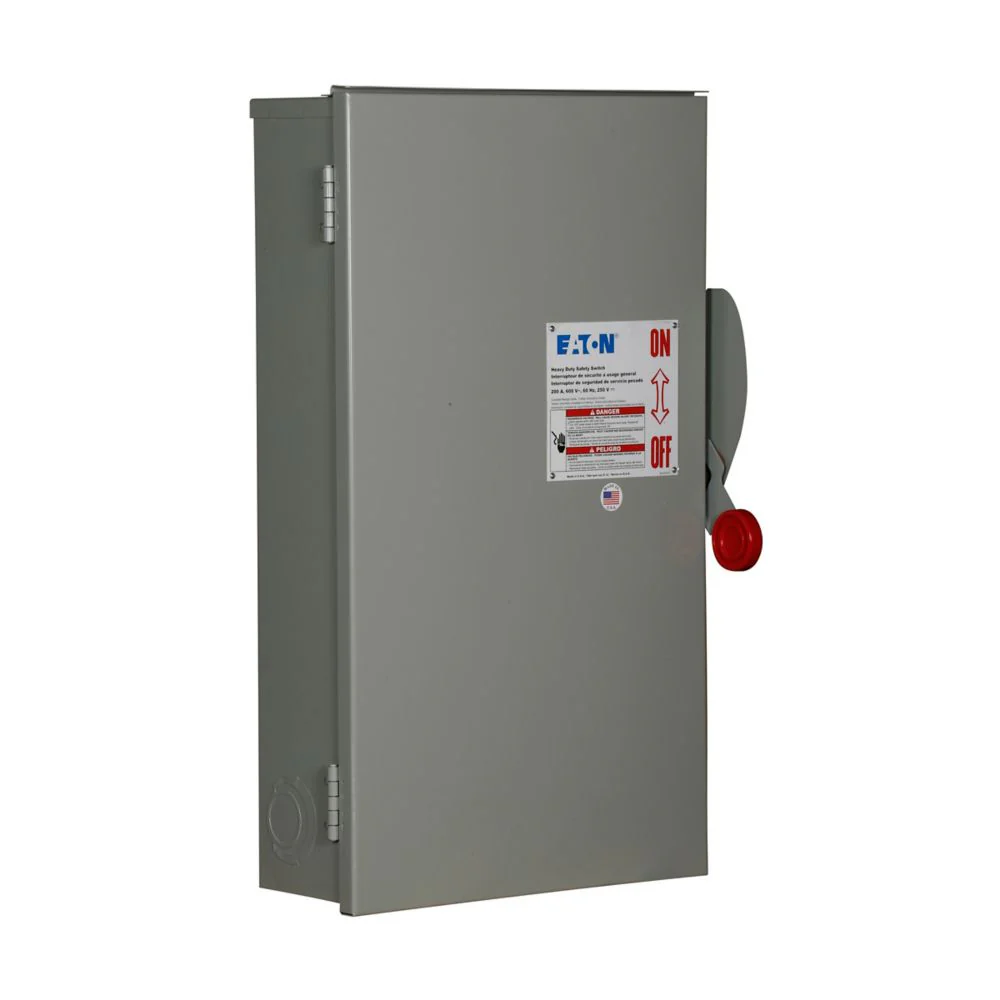

Eaton Enhanced visible blade single-throw safety switch, 200 A, NEMA 3R, Painted galvanized steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 50, 50/ 125, 150 hp (1/3PH @480, 600 V), #6-250 kcmil Cu/Al
Select Condition
From $285.00
Original: $949.99
-70%DH364FRK - Eaton - Disconnect—
$949.99
$285.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - DH364FRK - Eaton Disconnect
-
Part Number:
DH364FRK -
Manufacturer:
-
Family:
DH Series -
Pole:
3 -
Amp
200 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
DH -
AIC Ratings:
200kA@600V
Dimensions
-
Dimensions (HxWxD):
30 x 9.5 x 18 -
Weight:
40 lb
Standards
Product Description - DH364FRK - Eaton Disconnect
Eaton Enhanced visible blade single-throw safety switch, 200 A, NEMA 3R, Painted galvanized steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 50, 50/ 125, 150 hp (1/3PH @480, 600 V), #6-250 kcmil Cu/Al
