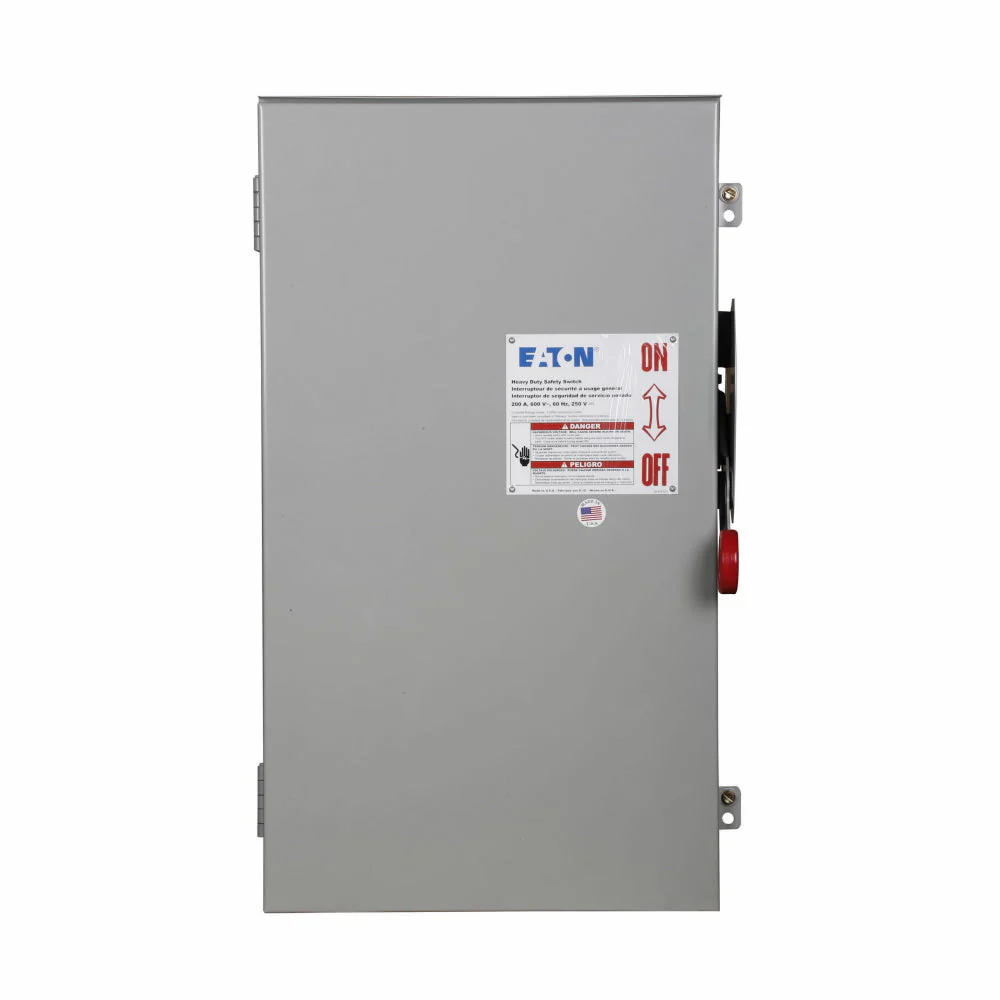

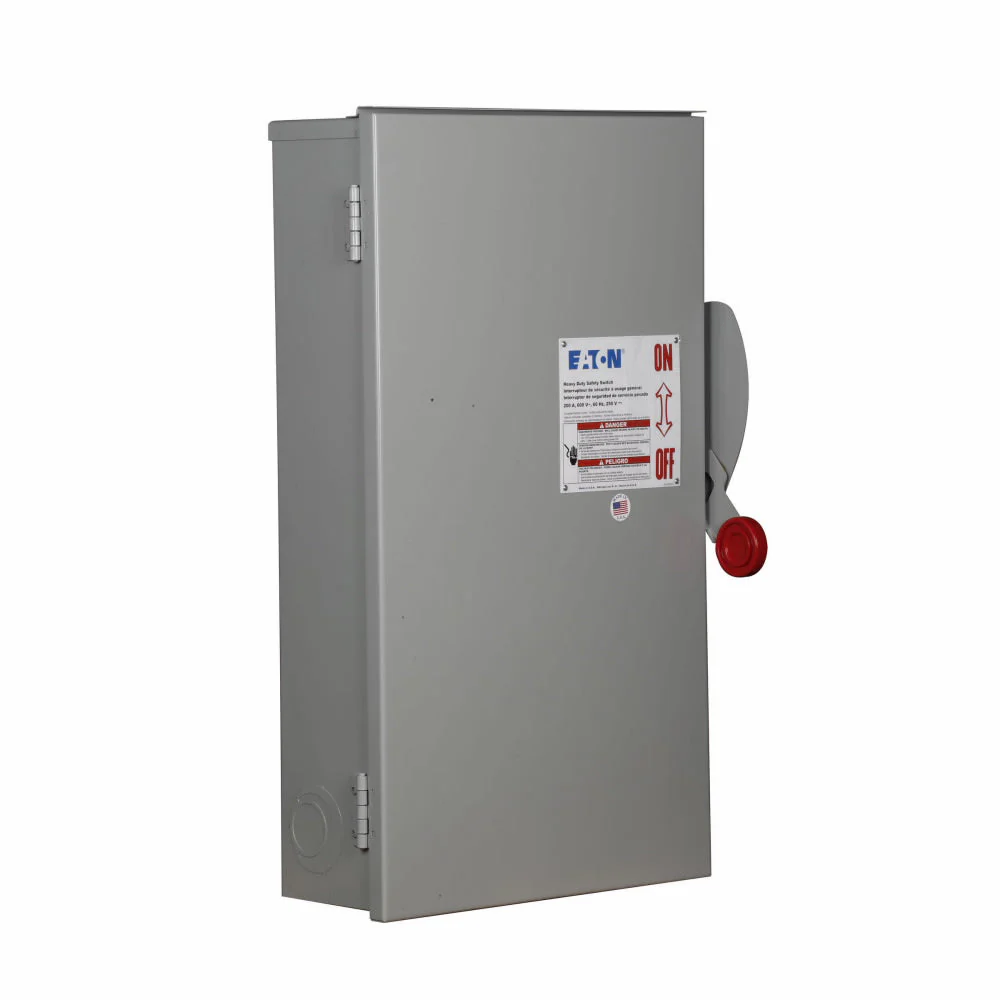

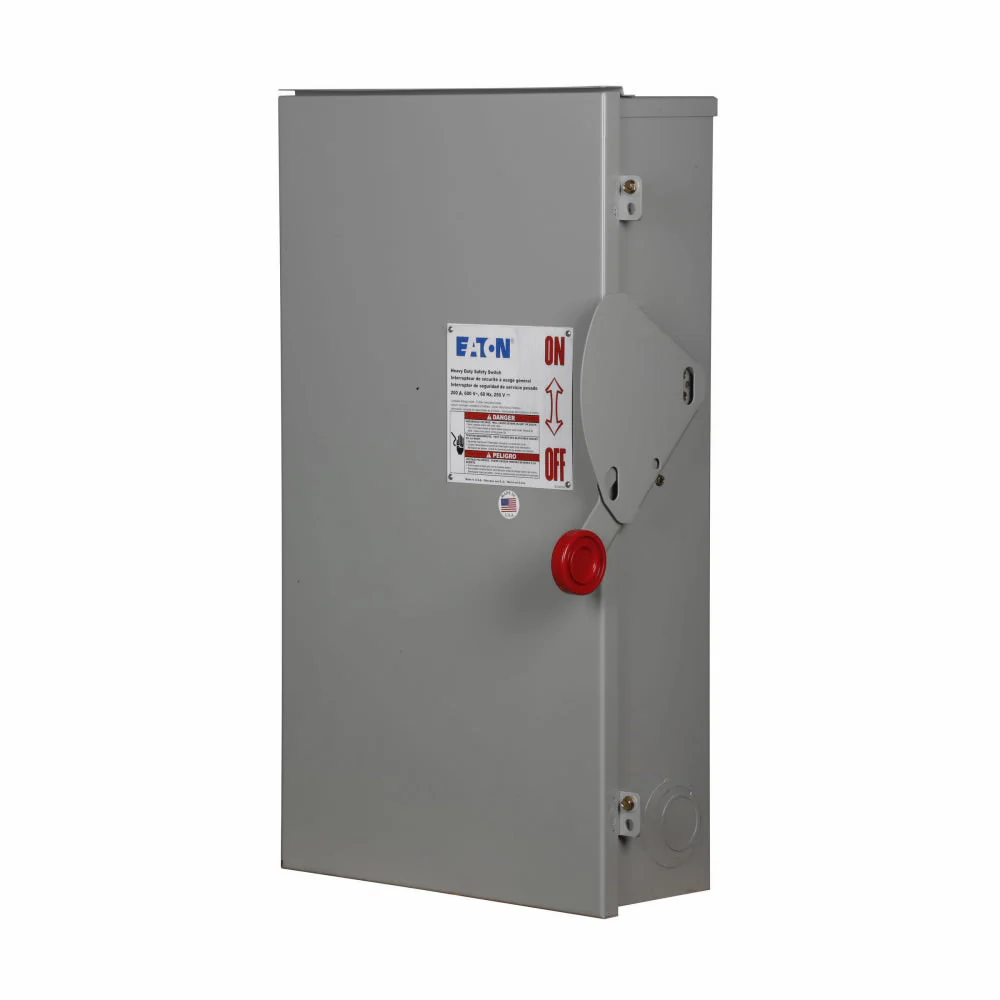

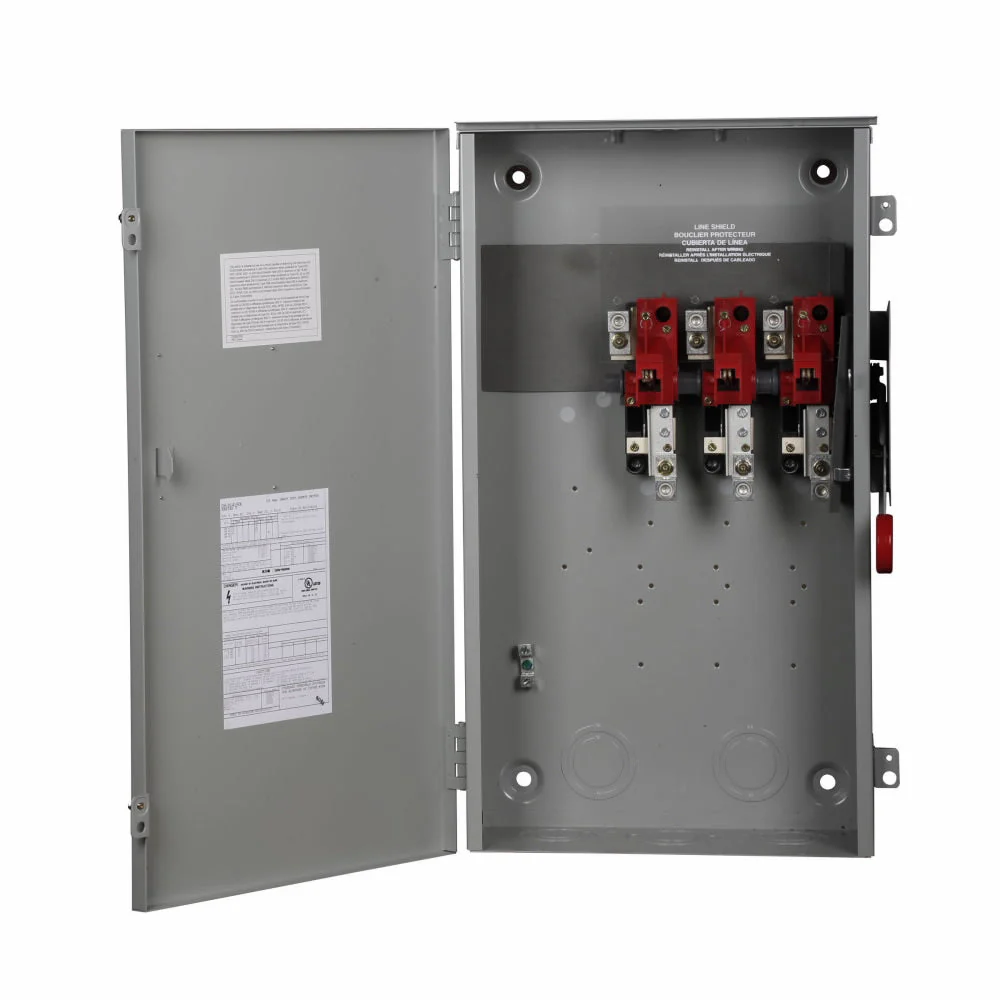

DH364URK - Eaton - Disconnect and Safety Switch
Overview
Product Specifications - DH364URK - Eaton Disconnect and Safety Switches
-
Part Number:
DH364URK / 3DH364NF (CSA)
-
Manufacturer:
-
Family:
DH Series -
Pole:
3 -
Amp
200 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
DH -
AIC Ratings:
200kA@600V -
Wire:
3 -
Switch Style:
Non-Fusible -
Configuration:
Single -
Nema Rating:
3R
Dimensions
-
Dimensions (HxWxD):
27.63" x 16.0" x 11.25" -
Weight:
35 lbs
Standards
Product Description - DH364URK - Eaton Disconnect and Safety Switches
Eaton Heavy duty single-throw non-fused safety switch, Single-throw, 200A, NEMA 3R, Painted galvanized steel, Non-Fusible, Three-pole, Three-wire, 15 at 240 Vac TD 1 Ph, 50 at 480 Vac TD 1 Ph, 50 at 600 Vac TD 1 Ph, 60 at 240 Vac TD 3 Ph
