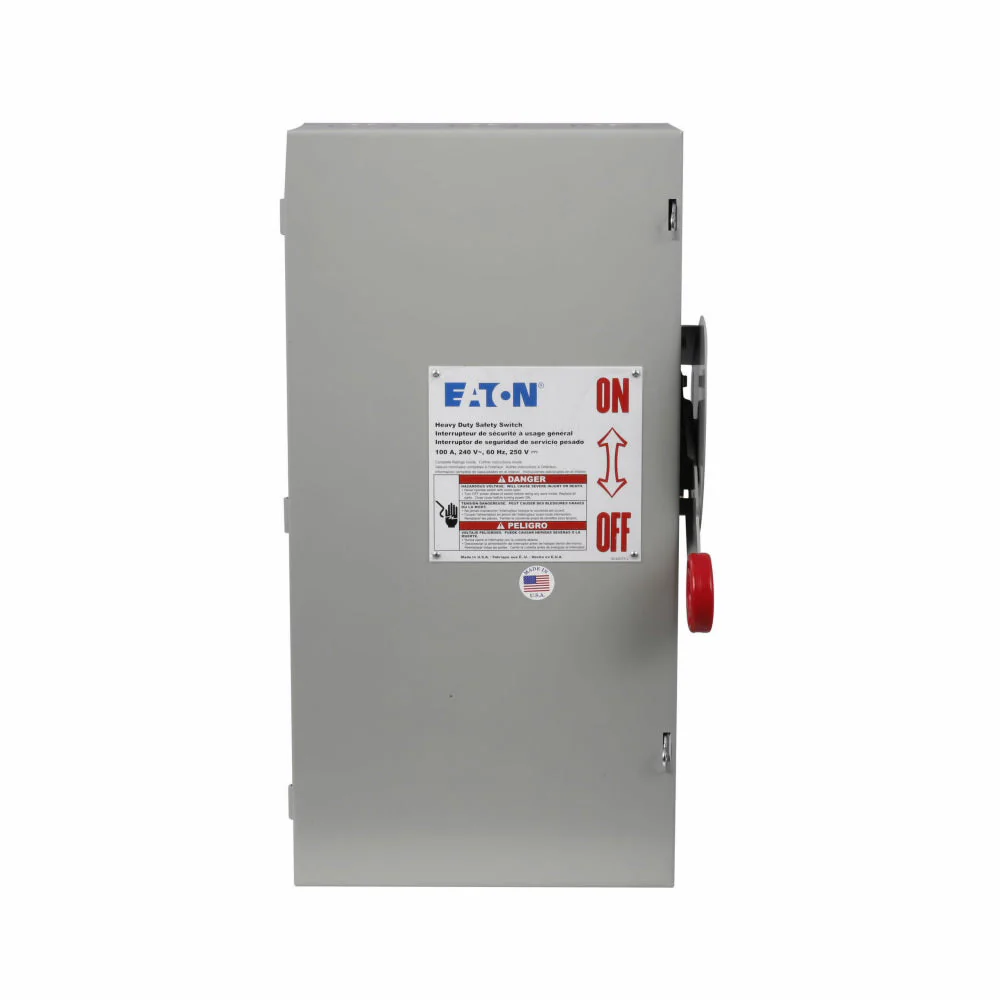

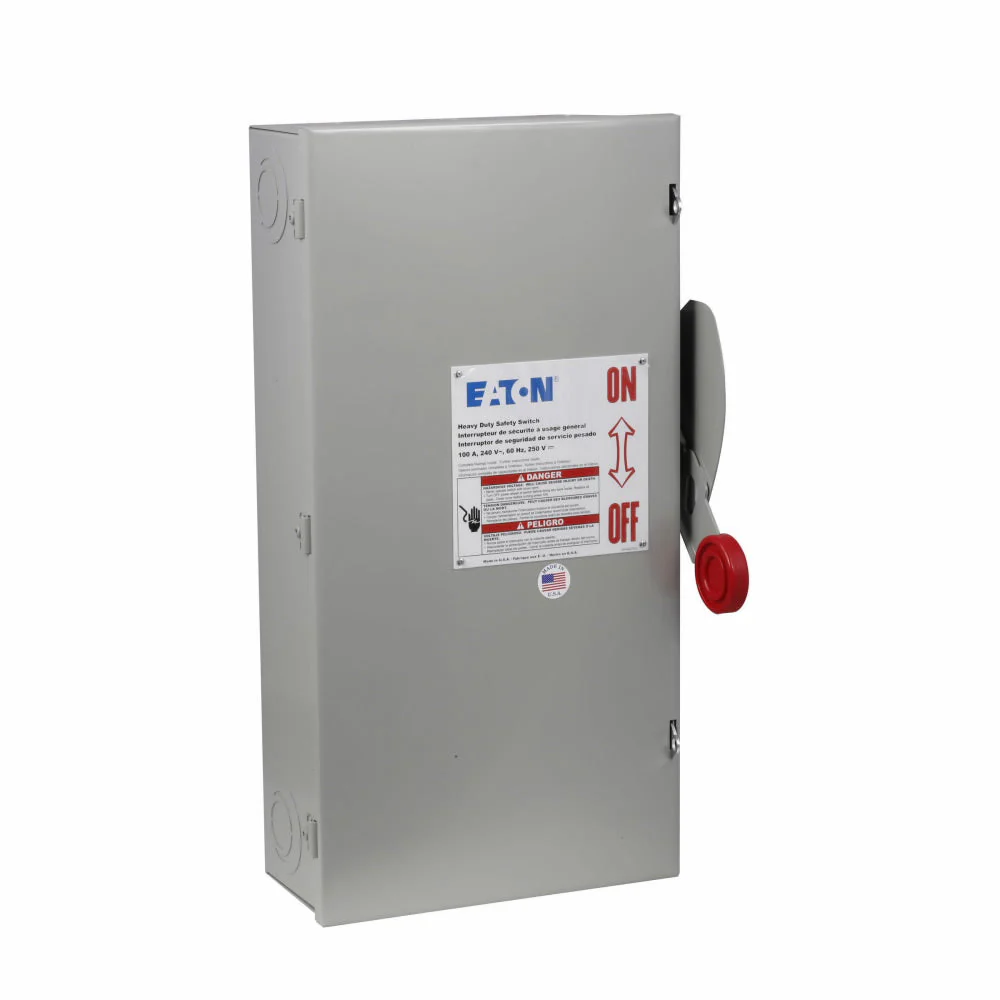

DH323NGK - Eaton - Disconnect and Safety Switch
Overview
Product Specifications - DH323NGK - Eaton Disconnect and Safety Switches
-
Part Number:
DH323NGK -
Manufacturer:
-
Family:
DH Series -
Pole:
3 -
Amp
100 -
Volt:
3 -
Phase:
3
-
Category:
-
Type:
DH -
AIC Ratings:
100kA@240V -
Suit Fuse:
R -
Switch Style:
Fusible -
Configuration:
Single -
Nema Rating:
1
Dimensions
-
Dimensions (HxWxD):
9.0" x 12.75" x 22.5" -
Weight:
1 lbs
Standards
Product Description - DH323NGK - Eaton Disconnect and Safety Switches
Eaton Heavy duty single-throw fused safety switch, 100 A, NEMA 1, Painted steel, Class H, Fusible, Neutral, Three-pole, Four-wire, 240 V, Max Hp: 7.5, 15/ 15, 30/ 20 hp (1,3PH @Std/TD/250 Vdc), #14-#1/0 Cu/Al
Documentation
B
Select Condition
From $80.10
Original: $266.99
-70%DH323NGK - Eaton - Disconnect and Safety Switch—
$266.99
$80.10Product Information
