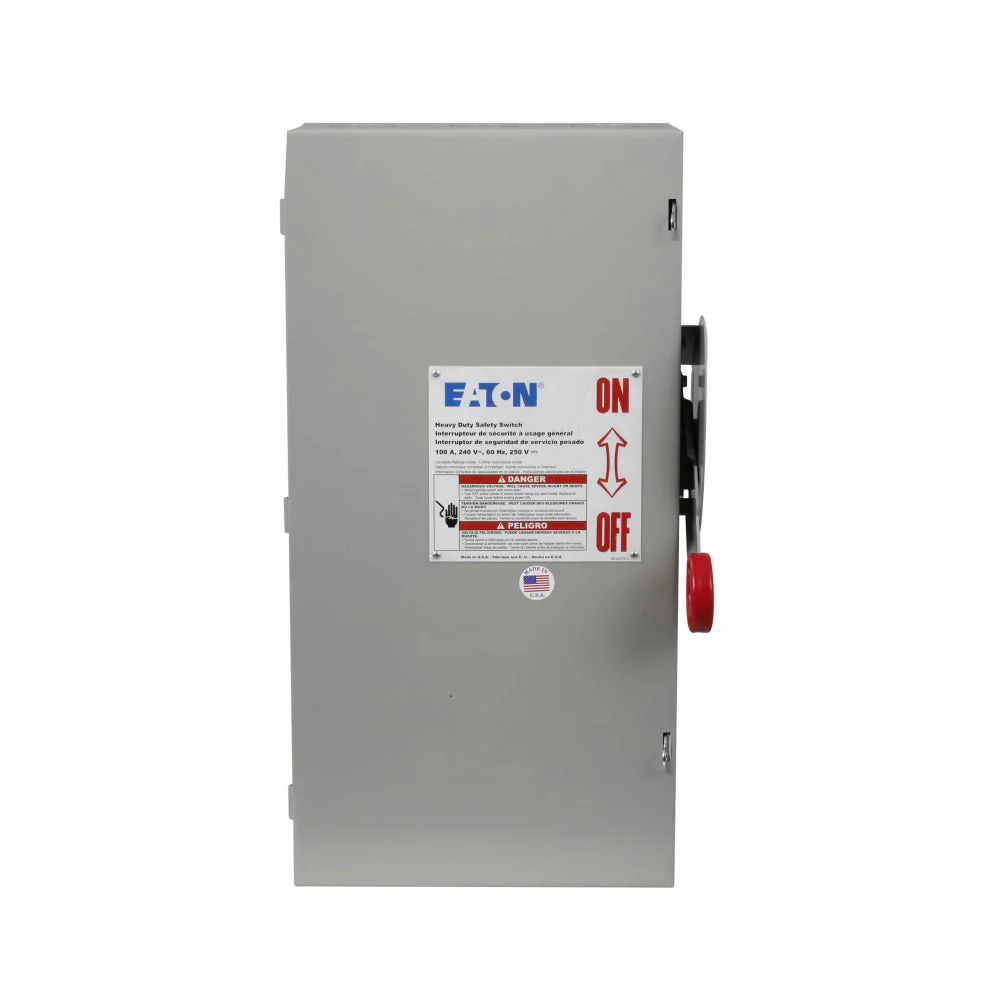

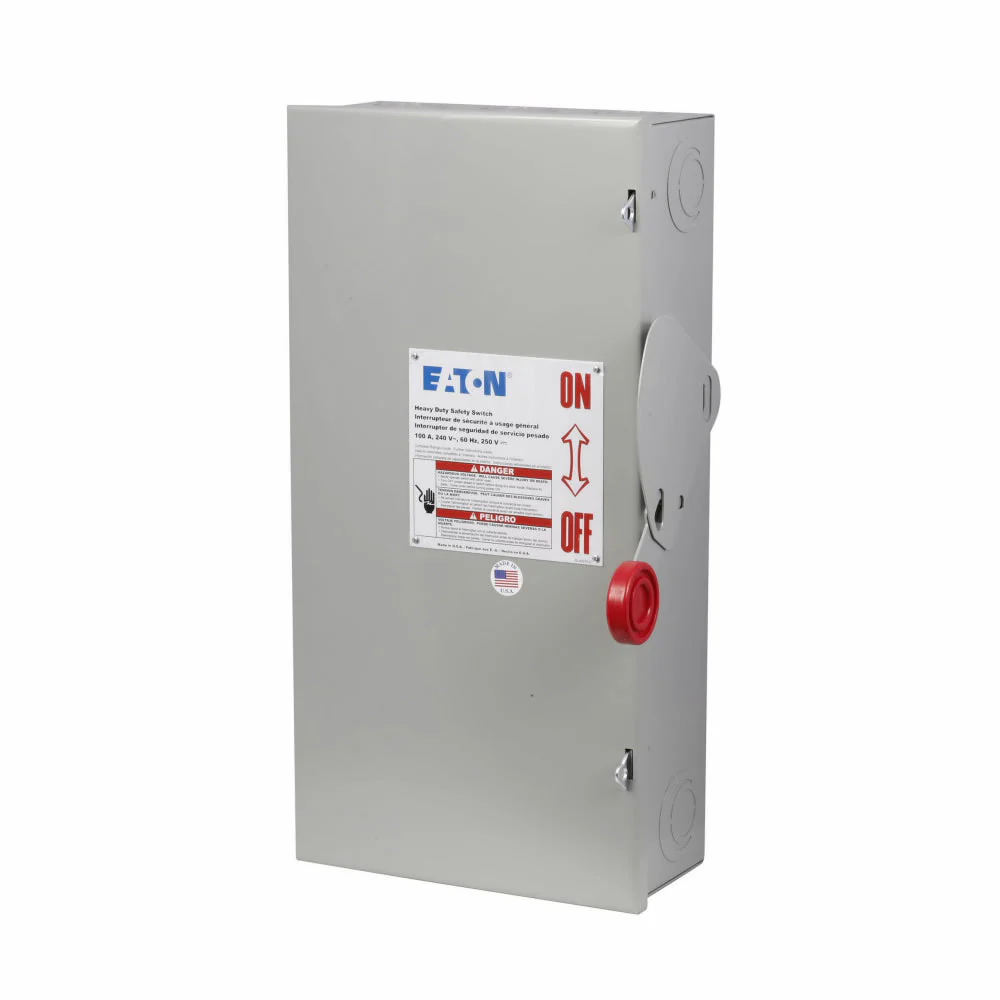

DH323FGK - Eaton - Disconnect and Safety Switch
Overview
Product Specifications - DH323FGK - Eaton Disconnect and Safety Switch
-
Part Number:
DH323FGK -
Manufacturer:
-
Family:
DH Series -
Pole:
3 -
Amp
100 -
Volt:
3 -
Phase:
3
-
Category:
-
Type:
DH -
AIC Ratings:
100kA@240V -
Wire:
3 -
Configuration:
Single -
Nema Rating:
1 -
Switch Style:
Fusible -
Suit Fuse:
R
Dimensions
-
Dimensions (HxWxD):
8.7" x 12.7" x 22.5"
-
Weight:
20.5 lbs
Standards
Product Description - DH323FGK - Eaton Disconnect and Safety Switch
Eaton enhanced visible blade single-throw fused safety switch, 100 A, NEMA 1, Painted steel, Class H, Fusible without neutral, Three-pole, Three-wire, 240 V, Max Hp: 7.5, 15/ 15, 30/ 20 hp (1,3PH @Std/TD/250 Vdc), #14-#1/0 Cu/Al.
Documentation
Select Condition
From $68.10
Original: $226.99
-70%DH323FGK - Eaton - Disconnect and Safety Switch—
$226.99
$68.10Product Information
